Jain Xonic 100LM Ultrasonic Open Channel Flow Meter

Product Note:

No product notes available.

Categories: Flow Measurement, Ultrasonic Flow Meter Tags: Flow Measurement, Jain, Ultrasonic Flow Meter

Description

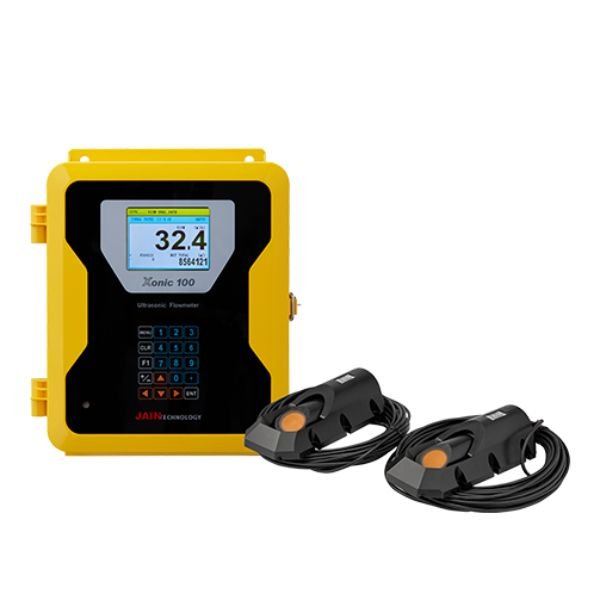

Jain Xonic 100LM Ultrasonic Open Channel Flow Meter

Jain Xonic 100LM Ultrasonic Open Channel Flowmeter use ultrasonic transit-time method for flow velocity and use level meter to receive level data. Xonic 100LM not only measure velocity, but measure sound speed and can compensate temperature change by it’s own diagnostic functions. Xonic 100LM is newly developed and has very sophisticated diagnostic functions for better performance.

Jain Xonic 100LM Ultrasonic Open Channel Flow Meter is a high-precision, non-contact open channel flow measurement system designed for continuous flow monitoring in wastewater treatment plants, stormwater channels, irrigation canals, and industrial effluent discharge lines. Developed by Jain Technology, the Jain Xonic 100LM Ultrasonic Open Channel Flow Meter combines non-contact ultrasonic level sensing with pre-programmed primary flow elements (Parshall flumes, Venturi flumes, triangular/rectangular weirs) to deliver accurate volumetric discharge rates. Featuring advanced digital signal processing, integrated datalogging, and versatile communication outputs, it provides reliable flow data without head loss or fluid contact.

System Description

Xonic 100LM use Cross- Correlation and Fast Fourier Transform technics to measure more accurate flow rate. This DSP technology makes Xonic 100LM more reliable, maintainable and accurate.

Xonic 100LM use certified new technology PATENTED “Very precise time measurement method” and also use PATENT “Transducer Design for Open Channel”. The patent is about transducers alignment method in field, and engineers can align one transducers to opposite transducer very precisely with laser pointer.

Cross Flow Installation

In case of winding open channel, Xonic 100LM can use Cross Flow Installation to keep better accuracy. Path 1 & 3, Path 2 & 4 can be installed as cross path to keep better accuracy.

Specifications

Parameter	Specification
Manufacturer / Brand	Jain Technology
Model Series	Xonic 100LM Series / Xonic 100LM
Focus Keyword Target	Jain Xonic 100LM Ultrasonic Open Channel Flow Meter
Measurement Method	Non-contact Acoustic Level Sensing & Head-to-Flow Formula Conversion
Level Measuring Range	$0.2 text{m} text{to} 3.0 text{m}$ (Standard) / up to $5.0 text{m}$
Flow Accuracy	$pm 1.0% text{to} pm 2.0%$ of Reading (dependent on primary element calibration)
Supported Primary Structures	Parshall Flume, Venturi Flume, V-notch Weir, Rectangular Weir, Custom Head-Flow Curve
Display Unit	Backlit Graphic LCD (Displays Instantaneous Flow Rate, Totalizer, Head Height, Status)
Output Signals	Isolated 4–20mA, RS-485 Modbus RTU, Relay Alarm Outputs (High/Low/Total Pulse)
Power Supply Options	100–240 V AC (50/60 Hz) or 12–24 V DC
Protection Rating	IP65 / IP67 Wall-Mount Electronics; IP68 Submersible Transducer
Operating Temperature	Sensor: -20°C to +60°C (-4°F to +140°F); Electronics: -10°C to +50°C

Features

Non-Contact Flow Computation: Eliminates sensor fouling, corrosion, and maintenance issues associated with submerged velocity probes.
Pre-Programmed Primary Elements: Pre-loaded standard curves for Parshall flumes, Palmer-Bowlus flumes, rectangular weirs, and V-notch weirs.
High Measurement Precision: Advanced ultrasonic signal processing ensures high head-height accuracy ( $pm 0.2% text{to} pm 0.5%$ ).
Integrated Datalogger: Internal memory logs flow rates, totalized volumes, and alarm histories for environmental compliance reporting.

Applications

Wastewater Treatment Plants: Continuous monitoring of influent raw sewage, effluent discharge, and plant bypass channels.
Industrial Effluent Outfalls: Compliance flow monitoring for chemical, textile, food processing, and paper mill discharge streams.
Municipal Stormwater & Sewer Networks: Open channel discharge tracking in drainage canals, storm basins, and overflow channels.
Agricultural Irrigation Canals: Volumetric water distribution tracking across open irrigation channels and diversion channels

Jain Xonic 100LM Ultrasonic Open Channel Flow Meter

Jain Xonic 100LM Ultrasonic Open Channel Flowmeter use ultrasonic transit-time method for flow velocity and use level meter to receive level data.

Product Note:

No product notes available.

Categories: Flow Measurement, Ultrasonic Flow Meter Tags: Flow Measurement, Jain, Ultrasonic Flow Meter

Description

Jain Xonic 100LM Ultrasonic Open Channel Flow Meter

System Description

Xonic 100LM use Cross- Correlation and Fast Fourier Transform technics to measure more accurate flow rate. This DSP technology makes Xonic 100LM more reliable, maintainable and accurate.

Cross Flow Installation

In case of winding open channel, Xonic 100LM can use Cross Flow Installation to keep better accuracy. Path 1 & 3, Path 2 & 4 can be installed as cross path to keep better accuracy.

Specifications

Parameter	Specification
Manufacturer / Brand	Jain Technology
Model Series	Xonic 100LM Series / Xonic 100LM
Focus Keyword Target	Jain Xonic 100LM Ultrasonic Open Channel Flow Meter
Measurement Method	Non-contact Acoustic Level Sensing & Head-to-Flow Formula Conversion
Level Measuring Range	$0.2 text{m} text{to} 3.0 text{m}$ (Standard) / up to $5.0 text{m}$
Flow Accuracy	$pm 1.0% text{to} pm 2.0%$ of Reading (dependent on primary element calibration)
Supported Primary Structures	Parshall Flume, Venturi Flume, V-notch Weir, Rectangular Weir, Custom Head-Flow Curve
Display Unit	Backlit Graphic LCD (Displays Instantaneous Flow Rate, Totalizer, Head Height, Status)
Output Signals	Isolated 4–20mA, RS-485 Modbus RTU, Relay Alarm Outputs (High/Low/Total Pulse)
Power Supply Options	100–240 V AC (50/60 Hz) or 12–24 V DC
Protection Rating	IP65 / IP67 Wall-Mount Electronics; IP68 Submersible Transducer
Operating Temperature	Sensor: -20°C to +60°C (-4°F to +140°F); Electronics: -10°C to +50°C

Features

Non-Contact Flow Computation: Eliminates sensor fouling, corrosion, and maintenance issues associated with submerged velocity probes.
Pre-Programmed Primary Elements: Pre-loaded standard curves for Parshall flumes, Palmer-Bowlus flumes, rectangular weirs, and V-notch weirs.
High Measurement Precision: Advanced ultrasonic signal processing ensures high head-height accuracy ( $pm 0.2% text{to} pm 0.5%$ ).
Integrated Datalogger: Internal memory logs flow rates, totalized volumes, and alarm histories for environmental compliance reporting.

Applications

Wastewater Treatment Plants: Continuous monitoring of influent raw sewage, effluent discharge, and plant bypass channels.
Industrial Effluent Outfalls: Compliance flow monitoring for chemical, textile, food processing, and paper mill discharge streams.
Municipal Stormwater & Sewer Networks: Open channel discharge tracking in drainage canals, storm basins, and overflow channels.
Agricultural Irrigation Canals: Volumetric water distribution tracking across open irrigation channels and diversion channels
