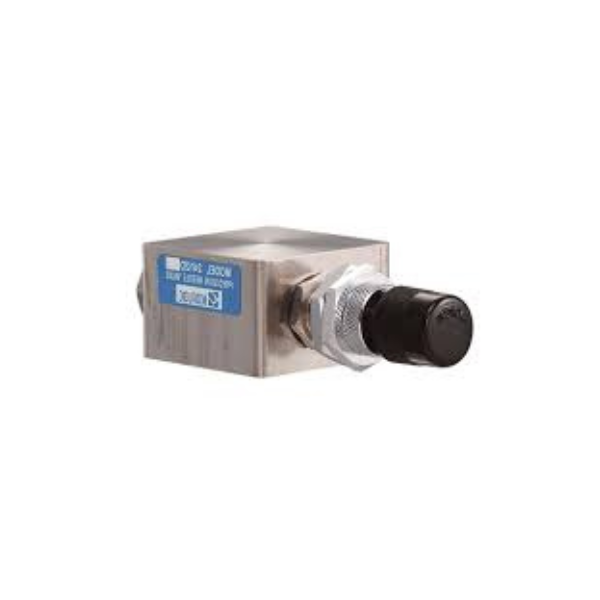

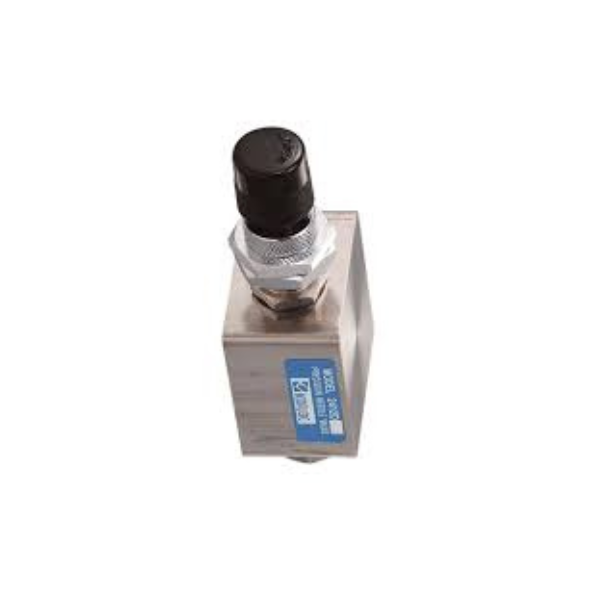

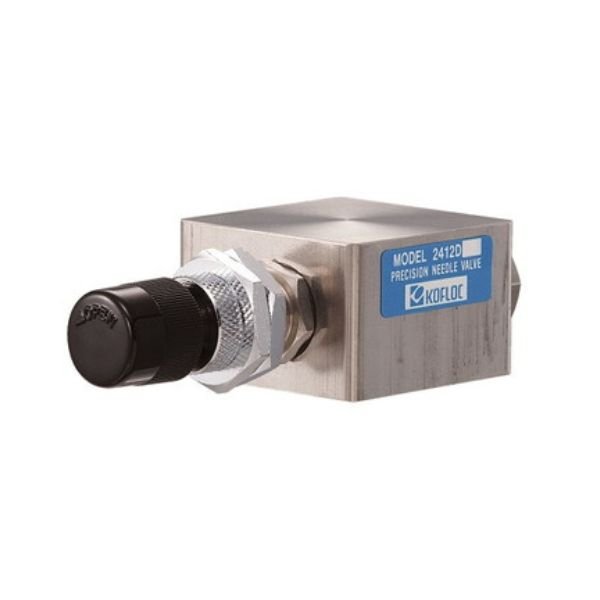

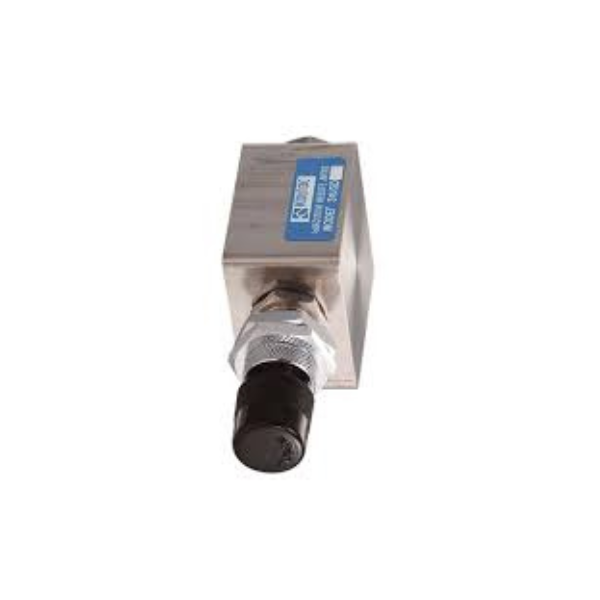

Kofloc Model 2412D Large Capacity Precision Needle Valve

Kofloc Model 2412D Large Capacity Precision Needle Valve: This large capacity needle valve exhibits high performance in precision control of comparatively large flow. The needle valve is a larger version of our precision needle valve (Model 2412) that has time-tested reliability and is suitable for stable control in a comparatively large flow range of 50–300 l/min (0.1 MPa).

Kofloc Model 2412D Large Capacity Precision Needle Valve: This large capacity needle valve exhibits high performance in precision control of comparatively large flow. The needle valve is a larger version of our precision needle valve (Model 2412) that has time-tested reliability and is suitable for stable control in a comparatively large flow range of 50–300 l/min (0.1 MPa).

A needle valve is the typical flow control valve that controls the flow rate based on the change of resistance of the flow channel using an acicular or rod-shaped needle to adjust the opening of the flow channel that functions as a small orifice. KOFLOC offers simple-type, precision-type and various other needle valves, and also manufactures flow controllers having a combination of a needle valve and diaphragm as well as proportional solenoid valves that electrically control the flow rate.

Features

The rotational motion of the flow control screw is changed into a linear motion to ensure smooth flow control without causing a screw gap.

  • The completely clean inside of the valve permits clean flow control.
  • A special grease is used for the section not in contact with liquid to ensure outstanding durability.

Applications

Gas :N₂, Air, H₂, He, Ar, O₂, CO₂, etc.
Liquid: H₂O

Specifications

Number of turns of regulating screw Approx. 8-12 turns
Needle 3 types
Maximum operating pressure 1 MPa
Materials of parts in contact with fluids (A) Brass, Al, NBR, POM
(SS) SUS316, FKM, fluorocarbon resin
Connection end Rc 3/8, Rc 1/4
Fluid Gas and liquid
Rated flow ranges See the table below.

Downloads

Datasheet : Kofloc Model 2412D Large Capacity Precision Needle Valve
