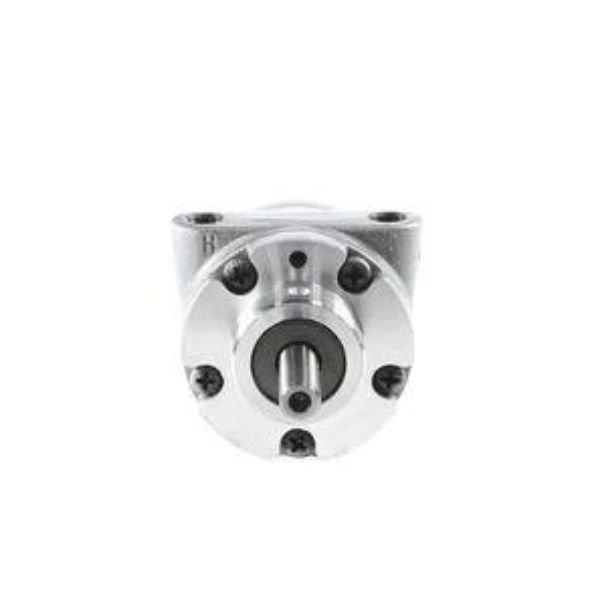

Gast 1AM-NRV-39A Air Motor

Gast Air Motors are common and widely used drives that

electric power and are often referred to as electric motors. In some applications electric motors are not considered representative, perhaps because of special applications, such as because the power and speed generated are difficult to adjust, or perhaps because the application requires that electricity be prohibited, and perhaps because the ambient temperature is very extreme above 60 degrees Celsius.

Description of  Gast 1AM-NRV-39A Air Motor

The compact and portable 1AM/1UP series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locati

Features

  • Hub mounting
  • Any plane operation
  • Muffler AF350
  • II, 2 GD c T4

Applications

Recommended

  • Filter AH100F
  • Regulator AH101R
  • Gauge AA806
  • Lubricator AH102L
  • Oil AD220 – 1 quart (.94 liters)
  • Repair kit K200 (Single Rotation)
  • Repair kit K201 (Reversible)
  • Repair kit K278 (8 Vane, Reversible)

Specifications

  • Max Air Consumption: 20.5 cfm ( 34.83 m3h )
  • Max Power: 0.42 hp ( 0.31 kW )
  • Max Pressure: 7 bar ( 101.53 psi )
  • Max Sound Level: 78 dB(A)
  • Max Speed: 10000 rpm
  • Max Torque: 5.6 in-lb ( 0.63 N m )
  • Mount: HUB
  • Output Shaft Type: Straight
  • Port Size and Type: 1/8″ NPT
  • Regulatory Approval: CE, ATEX
  • Rotation: Reversible
  • Stainless Steel: NO
  • Starting Torque @ 80psi: 3.9 in-lb ( 0.44 N m )
  • Torque Max Speed: 2.75 in-lb ( 0.31 N m )
  • Vanes: 4
  • Weight: 2 lbs ( 0.91 kg )

Downloads

Datasheet : Gast 1AM-NRV-39A Air Motor
