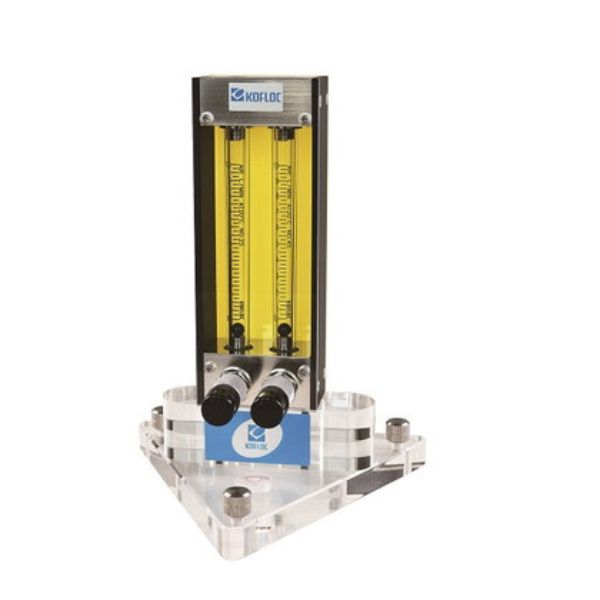

The flow meter for gas mixing uses a KOFLOC multiple flow meter to mix multicomponent fluids. Connection of pipes to respective gas inlets and the mixed gas outlet permit gases to be mixed. This flow meter is ideal for easy gas mixing in laboratories and studies.

Features

The simple structure facilitates maintenance.
The precision needle valve allows easy, fine control of flow.
All the parts are super-cleaned to ensure excellent cleanliness.
The flow meter is made into two- to four-component types to handle various gases in various flow ranges.

Applications

Air,N2,O2,H2,He,Ar,CO2 (Calibration with actual gas)

Specifications

Fluids	Air,N2,O2,H2,He,Ar,CO2 (Calibration with actual gas) For other gases, please consult us regarding conversion conditions or calibration with the actual gas to be used.
Flow range	From 5–50 ML/MIN to 1–10 L/MIN 10 L/MIN or less per line and 20 L/MIN or less in total (Refer to the Capacity Table on page 55.)
Accuracy	FS ±2% (Measurement point) * Optional: FS ±1% (Measurement point)
Proof pressure	0.5MPa
Available scale	10:1 * Optional 20:1


Material	SS	BS
Body block	SUS316	Brass
Tapered tube	Pyrex®, glass
Packing	FKM * Option (1)	NBR
Float	Pyrex, SUS316, glass
Protective cover	Acrylic resin
Temperature resistance	MAX60℃
Connection	Rc 1/4 (Standard), Rc 1/8 (Optional)
* Option (1): Fluorocarbon resin, Kalrez, Perfluoro, etc
