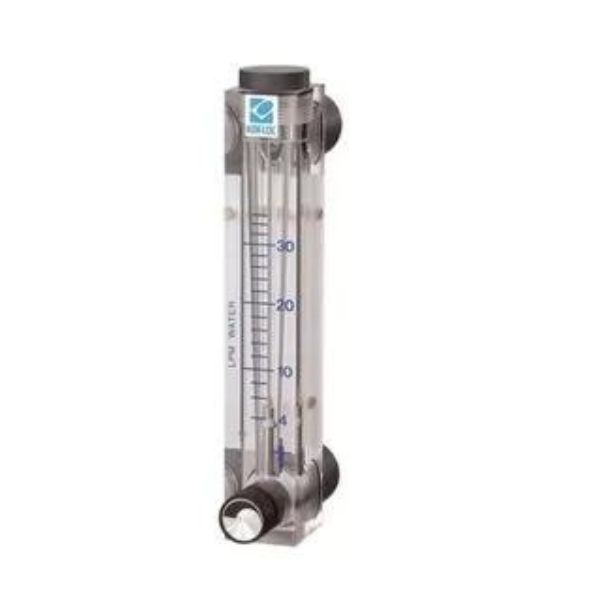

Kofloc Model RK500 Acrylic Resin Flow Meter

Kofloc Model RK500 Acrylic Resin Flow Meter this acrylic resin flow meter is designed for measuring large flow. The flow meter integral with a transparent acrylic panel permits easy reading, coming in two types according to the direction of flow – one from the bottom to the top and the other on the backside. It can be mounted on a panel with a support metal.

Kofloc Model RK500 Acrylic Resin Flow Meter this acrylic resin flow meter is designed for measuring large flow. The flow meter integral with a transparent acrylic panel permits easy reading, coming in two types according to the direction of flow – one from the bottom to the top and the other on the backside. It can be mounted on a panel with a support metal. The flow meter (area type flow meter) has a float inside a conical cylinder (tapered tube) with the upper end larger than the lower end. The float moves up and down according to the intensity of flow, and the reading is taken when the float balances indicate the flow rate. KOFLOC provides flow meters with a valve that can perform both measurement and control of the flow rate, flow meters with an alarm function, and many other products.

Kofloc Model RK500 Series Features :

  • Lightweight and easy-flow reading The acrylic panel is made integral.
  • Application to water The flow meter can be used for measuring water at up to 75 L/MIN.
  • Low price Simple structure and low price.

Features

  • Lightweight and easy flow reading
    The acrylic panel is made integral.
  • Application to water
    The flow meter can be used for measuring water at up to 75 L/MIN.
  • Low price
    Simple structure and low price

Applications

  • The flow meter can be used for measuring water at up to 75 L/MIN.

Specifications

Flow range AIR L/MIN WATER L/MIN
(RK500I, RK500S) 100-700, 100-1400
(RK500VS) 100-700, 100-1400, 400-3000
1-15
4-36
5-75
Accuracy Full scale ±3%
Material Body•packing Transparent acrylic resin, NBR
Float Stainless steel
Proof pressure 0.7MPa
Temperature resistance 65℃ (MAX)
Connection NPT1
Remarks Models with a valve are S (direction of flow) only.

Downloads

Datasheet: Kofloc Model RK500 Acrylic Resin Flow Meter
