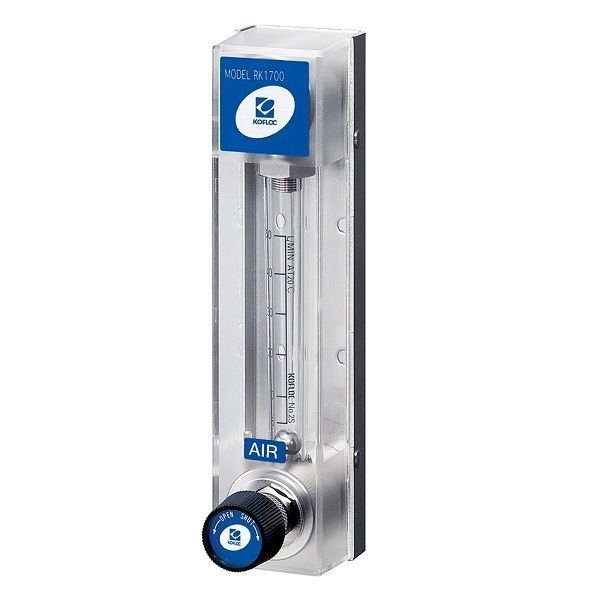

Kofloc RK1700 Variable Area Flowmeter

An area flow meter has a float in a conical cylinde (tapered tube) with a larger end in the upper section and a smaller end in the lower section.

An area flow meter has a float in a conical cylinde (tapered tube) with a larger end in the upper section and a smaller end in the lower section. The float moves up and down according to the intensity of the flow, and the position at which the float balances indicates the flow rate. Not only simple flow meters that merely measure the flow rate but also flow meters with a valve for flow control, flow meters with a load pressure fluctuation type flow controller, flow meters with a supply pressure fluctuation type flow controller, and flow meters with an alarm switch are available.

The Model RK1700 Series Flowmeter centers the focus on cost reduction using SUS 316 as the material of construction.

This flowmeter covers flow ranges from 1 L/MIN to 50 L/MIN and can be shipped in one week after the customer’s purchase order.

Features

  • Very reduced price
  • One-week delivery
  • Compact design

Applications

  • The operating temperature is 20°C (at atmospheric pressure).
  • The needle is located at the bottom. (Standard specification)
  • Supply pressure, standard: 0.1 MPa to 0.3 Mpa

Specifications

Flow range (Full scale) 1L, 5L, 10L, 30L, 50L/MIN
(AT20℃)
Fluids Use for Air, N2 and O2 exclusively
Accuracy FS±7%
Available scale 10:1
Proof pressure 0.5MPa
Materials SS: SUS 316, Pyrex, FKM, SUS 304, SUS 303, glass
BS: Brass, Pyrex, NBR, SUS303, glass
Temperature resistance MAX. 60℃
Connection Rc1/4
