Maeda Koki MKCT Type Water Signal – Flow Indicator

Flow indicator and Oil signal MKCT model produced by Maeda Koki in Japan, Oil signal and Water signal Meodel MKCM has a function for detecting minimal flow.

Flow indicator and Oil signal MKCT model produced by Maeda Koki in Japan, Oil signal and Water signal Meodel MKCM has a function for detecting minimal flow. MKCT water signal manufactured with using acrylic tube is limited to the use of 80 ℃ or less. (Flow switch of the product is limited to the use of 60 ℃ or less.)
If you want to use the mixed oil of the like, lubricants, please note the “Aburaaka”. When the inside or within the fluid piping “garbage” and “iron powder” is mixed, there is a possibility that the ball (float) may not work. We hope the use of the filter or the like.

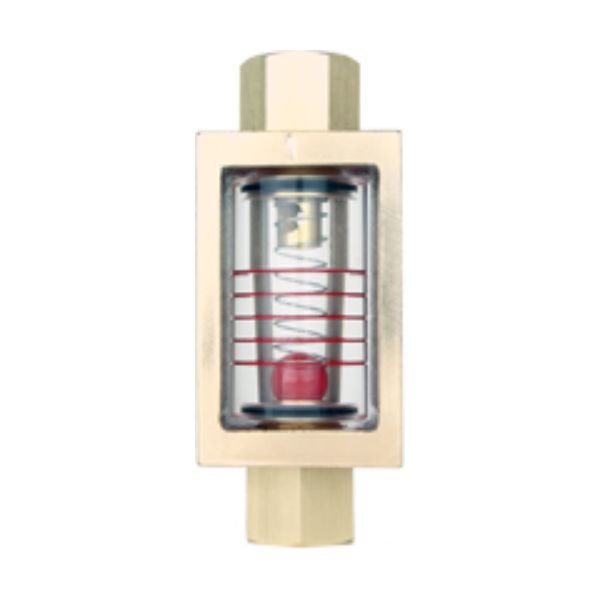

Maeda Koki MKCT Water Signal Indicator is the flow sight that confirms the flow of a fluid by a motion of the float in a transparent tube. Since this product is protected with a metal protection cover, it does not almost have a fear of breakage by the impact from the outside, etc.

Since the spring is being used for this product in a transparent tube, the postures when attaching is free, such as facing up, facing down, and sideways. A maximum of 80℃ of oil heat-resistant products can be used. Standard pressure resistance: 1MPa

Features

  • It shows flow quantity by viewing
    Because use a transparent taper pipe, with a ball (or afloat) and the indication red line
  • It can confirm approximate flow quantity by looking at the position concerned.
  • With protective cover
    By a metal protective cover, I reduce the possibility of damage by shocks from the outside.
  • The installation direction does not matter
    Because use a spring inside, the posture when attach it looks up and look down; and It can perform sideways-facing freely.

Applications

  • Clean water application
  • Clean oil application
  • Clean air application

Specifications

Fluid Water
Flow quantity The reference mentioned above When standard specifications flow quantity or less want the above, please refer.
Connection Rc internal thread Change to R screw
The combination with the R screw is possible, too.
 Heat-resistant temperature A maximum of 80 degrees Celsius
Withstand pressure 1MPa
Materials Transparent pipe Acrylic
Coupling C3604 (brass) I can produce the product made in SUS, too.
 Protective cover BC I can produce the product made in aluminum, too.
Spring SUS304
Nylon ball Nylon 66 I may use a cylindrical float.
O ring Nitrile rubber

List of models

Model    Dimensions (mm) Standard specifications flow quantity
(about L/min)
Flow quantity curve list
※Standard specifications
(PDF documents)
Connection Full length Overall width Depth
MKCT20-1TW  Rc1/8 80 30 22 1-5
MKCT20-2TW Rc1/4 80 30 22
MKCT20-3TW Rc3/8 86 30 22
MKCT30-2TW Rc1/4 104 43 32 4-17
MKCT30-3TW Rc3/8 104 43 32
MKCT30-4TW Rc1/2 110 43 32
MKCT35-4TW Rc1/2 145 50 44 8-30
MKCT35-6TW Rc3/4 145 50 44
MKCT45-6TW Rc3/4 171 62 50 10-40
MKCT45-8TW Rc1 171 62 50

Downloads

Datasheet: Maeda Koki MKCT Type Water Signal – Flow Indicator
