Description

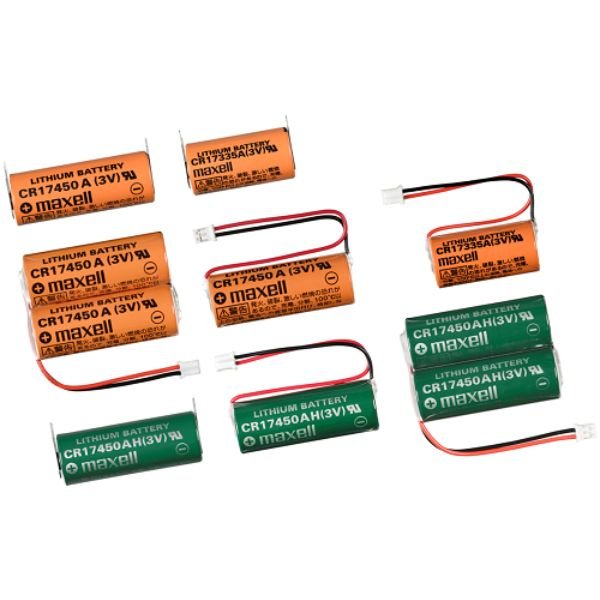

Maxell Cylindrical CR Type Lithium Manganese Dioxide Battery

Maxell Cylindrical CR Type Lithium Manganese Dioxide Battery contains lithium, organic solvents, and other combustible materials. For this reason, improper handling of the battery could lead to distortion, leakage*, overheating, explosion, or fire, causing bodily injury or equipment trouble. Please observe the following instructions to prevent accidents.

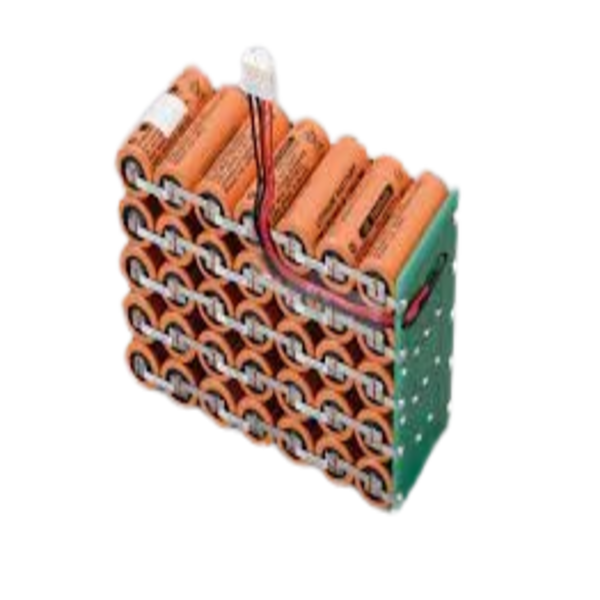

Maxell’s cylindrical type lithium manganese dioxide battery realizes stable discharge characteristics with its original sealing structure, improved electrical-conductivity structure, and negative electrode material. This battery’s long-term reliability makes it ideal for use as a power source in industrial applications such as IoT devices and smart meters (e.g. gas, water, electricity). Battery packs can also be produced to meet special customer requirements. For details, please get in touch with your nearest Maxell dealer or distributor. The cylindrical type lithium manganese dioxide battery uses manganese dioxide (MnO₂) as its positive active material and lithium (Li) as its negative active material.

Features

High energy density
High energy density has been achieved by optimizing the filling rate of the material by means of a unique electrode structure.
Long-term reliability lasting more than 10 years^*
The employment of a heat-resistant gasket and a laser-seal structure prevents water intrusion and electrolyte evaporation, ensuring long-term reliability that lasts more than 10 years^*. The self-discharge rate is about 0.5% per year.
Stable discharge characteristics
The original negative electrode material maintains low internal resistance even at high depths of discharge and ensures stable discharge.
Superior low-temperature characteristics
High safety due to internal short-circuit prevention structure

Applications

Smart meters (e.g. gas, water, electricity)
IoT devices
Communication devices (e.g. 3G, LTE, LPWA)
In-vehicle devices
Security devices
Memory backup power

Specifications

Model	Nominal Voltage (V)	Nominal Capacity (mAh)*1	Nominal Discharge Current (mA)	Operating Temperature Range (deg. C)	Dimensions*2		Weight (g)*2
Model	Nominal Voltage (V)	Nominal Capacity (mAh)*1	Nominal Discharge Current (mA)	Operating Temperature Range (deg. C)	Diameter (mm)	Height (mm)	Weight (g)*2
CR17450AH	3	3000	1	-40 to +85	17	45	24
CR17450 A	3	2500	5		17	45	22
CR17335 A	3	1650	5		17	33.5	16

Nominal capacity indicates duration until the voltage drops down to 2.0V when discharged at a nominal discharge current at 20 deg. C.
Dimensions and weight are for the battery itself, but may vary depending on the shape of terminals or other factors.

Description

Maxell Cylindrical CR Type Lithium Manganese Dioxide Battery

Features

High energy density
High energy density has been achieved by optimizing the filling rate of the material by means of a unique electrode structure.

Long-term reliability lasting more than 10 years^*
The employment of a heat-resistant gasket and a laser-seal structure prevents water intrusion and electrolyte evaporation, ensuring long-term reliability that lasts more than 10 years^*. The self-discharge rate is about 0.5% per year.

Stable discharge characteristics
The original negative electrode material maintains low internal resistance even at high depths of discharge and ensures stable discharge.

Superior low-temperature characteristics

High safety due to internal short-circuit prevention structure

Specifications

Model

Nominal
Voltage (V)

Nominal
Capacity
(mAh)*1

Nominal
Discharge
Current (mA)

Operating
Temperature
Range
(deg. C)

Dimensions*2

Weight
(g)*2

Diameter (mm)

Height (mm)

CR17450AH

3000

-40 to +85

CR17450 A

2500

CR17335 A

1650

33.5

Nominal capacity indicates duration until the voltage drops down to 2.0V when discharged at a nominal discharge current at 20 deg. C.

Dimensions and weight are for the battery itself, but may vary depending on the shape of terminals or other factors.
