Nanaboshi NCS-304-P

Nanaboshi NCS-304-P

Original price was: Rp 307.000.Current price is: Rp 306.500.

Product Note:

No product notes available.

SKU: CNNCS304P Category: Tags: , ,

10 in stock

Contact us

Description

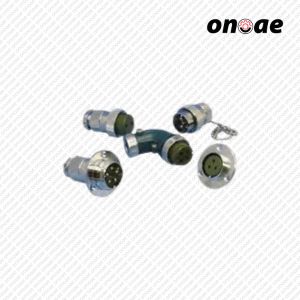

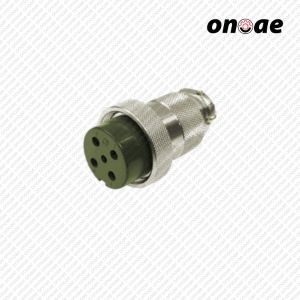

Nanaboshi NCS-304-P

Nanaboshi NCS-304-P are circular connectors with simple structures for various applications (Plugs, Receptacles, Adapters) manufactured high-quality Connectors for telecommunications devices, Industrial equipment, Electrical power equipment, Measuring devices, Electronic devices, etc. with a wide range of connector types such as :

  • NET Series
  • NEW Series
  • NJC Series
  • NR Series
  • NJW Series
  • NRW Series
  • NCS Series
  • NWPC Series
  • NT Series
  • NHVC Series
  • NMI Series

Metal connectors for indoor use: NCS, NJC, NR, NET, etc. Waterproof metal connectors for outdoor use: NWPC, NJW, NRW, NEW, NHVC, etc. Waterproof Ethernet Connector for outdoor: ENJW series, ENRW series Stocks include the highly versatile NCS series of metal connectors (plugs) for indoor use, as well as the NJC series of up to 24 pins, the one-touch lock type NR series, the NWPC series of water-resistant outdoor connectors, the NJW series, NRW series, ENJW series, ENRW series, etc. (excluding certain sizes).

Additional information

Weight0,3 kg

Specifications

ParameterSpecification
Manufacturer / BrandNanaboshi Electric Mfg. Co., Ltd.
Product SeriesNCS Series (Nanaboshi Circular Standard)
Model Part NumberNCS-304-P
Focus Keyword TargetNanaboshi NCS-304-P Circular Connector
Connector Gender / TypeStraight Cable Plug (Male Pin Contacts)
Shell Size / SeriesSize 30
Number of Contacts4 Pins
Rated Current15 A per contact

Features

  • Rugged Die-Cast Zinc Alloy Shell: High-strength, chrome-plated metal housing delivers maximum physical durability and impact protection in aggressive industrial environments.

  • 4-Pole High-Current Contact Array: 4-pin layout optimized for 3-phase AC power feeds with protective earth ground or multi-channel industrial control systems.

  • Vibration-Proof Threaded Coupling: Standard screw-thread locking interface prevents accidental cable disconnects caused by continuous machinery vibration or movement.

  • High-Conductivity Copper Alloy Pins: Precision male pin contacts ensure minimal contact resistance, low thermal buildup, and long mechanical mating life.

Applications

  • Factory Automation & Motor Drives: Power connections for 3-phase electric motors, variable frequency drives (VFDs), and mobile equipment control boxes.

  • Metalworking & CNC Machine Tools: High-current power feeds for automated lathes, milling stations, stamping presses, and hydraulic power units.

  • Processing & Packaging Equipment: Power supply harnesses for conveyor drives, packaging machinery, and industrial washdown processing lines.

  • Heavy Duty Power Generators: Removable power cables for mobile generators, transformers, and industrial power distribution units.
