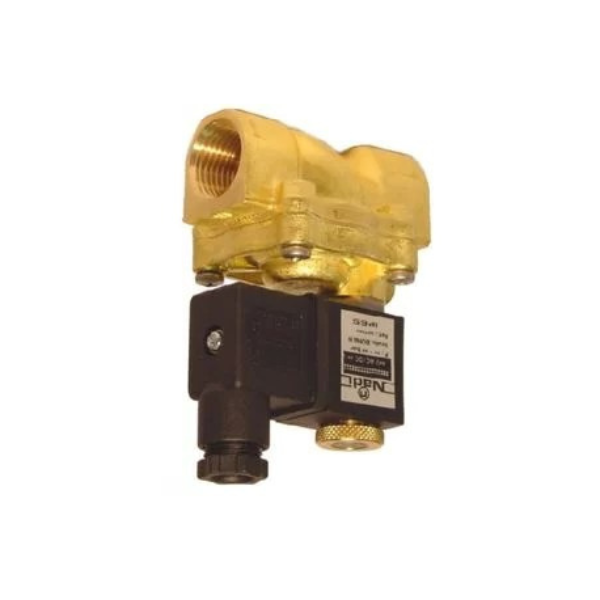

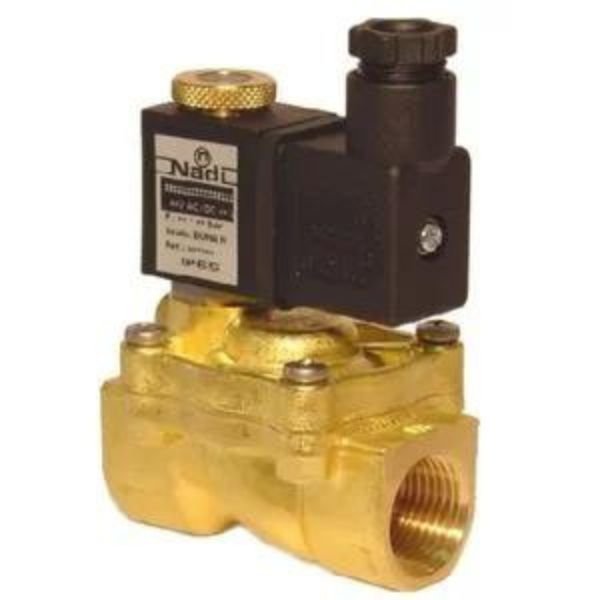

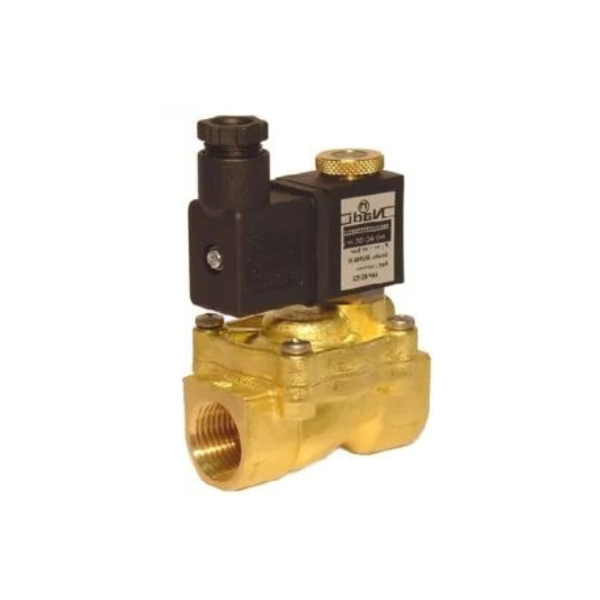

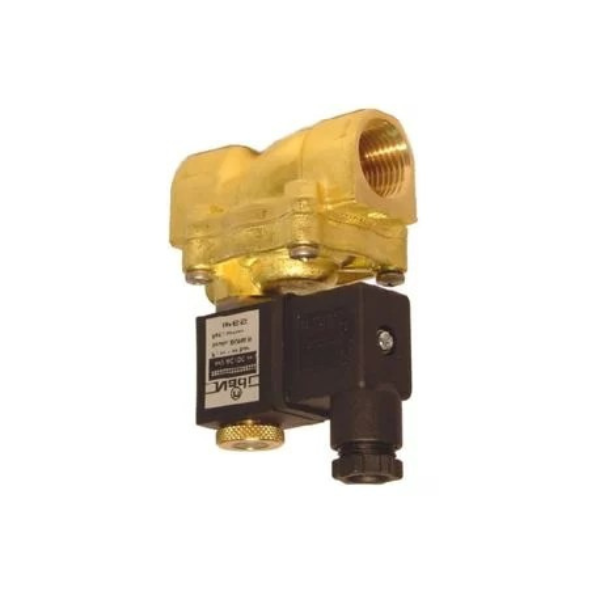

Nadi L60/L61/L62/L63 Two Way Servoassisted

Nadi L60/L61/L62/L63 Two Way Servoassisted: Two-way internal pilot solenoid valve. Drived diaphragm or drived piston type. Suitable for gaseous and liquid media compatible with the (body/seals) material used. Diaphragm seal type (L60/L61) for general purpose or piston type (L62/L63) used in heavy-duty operation; high-frequency duty cycle.

Nadi L60/L61/L62/L63 Two Way Servoassisted: Nadi solenoid valves are designed according to European standards and with explosion-proof certificates according to actual “ATEX” 2014/34/UE regulations.

Design, manufacturing method, quality assurance, and tests are carried out by staff, with 30 years of experience in advanced solenoid valve production, able to collaborate with customer’s technical departments in order to solve special problems, make feasibility studies for solenoid valves or its duty for special applications.

Two-way internal pilot solenoid valve. Drived diaphragm or drived piston type. Suitable for gaseous and liquid media compatible with the (body/seals) material used. Diaphragm seal type (L60/L61) for general purpose or piston type (L62/L63) used in heavy-duty operation; high-frequency duty cycle. Rulon piston is suitable for media not compatible with the standard elastomers. Forged brass, nickel-plated brass, or stainless steel body. Stainless steel internal parts. Stainless steel springs. 360° degrees orientable solenoid. Mountable in any position

Features

Body Material

  • Ottone
  • Ottone nichelato.

Port Size

  • 3/8″ GAS
  • 1/2″ GAS
  • 3/4″ GAS
  • 1″ GAS
  • 3/8″ NPT
  • 1/2″ NPT
  • 3/4″ NPT
  • 1″ NPT

Seals Materials

  • Buna N
  • FPM
  • PTFE *
  • EPDM

Protection Class

  • IP65

Optional Features

  • Stable manual operator

Applications

L60 / L62 – Normally closed

  • In: IN
  • Out: OUT
  • Coil de-energized: IN and OUT closed.
  • Coil energized: from IN to OUT.

L61 / L63 – Normally open

  • In: IN
  • Out: OUT
  • Coil de-energized: from IN to OUT.
  • Coil energized: IN and OUT closed.

Specifications

Downloads

Datasheet : Nadi Series L60L61L62L63 Two Way Servoassisted Solenoid Valve
