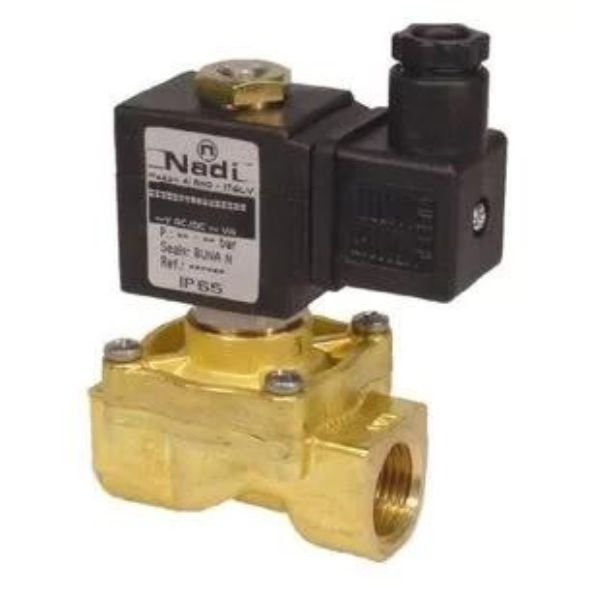

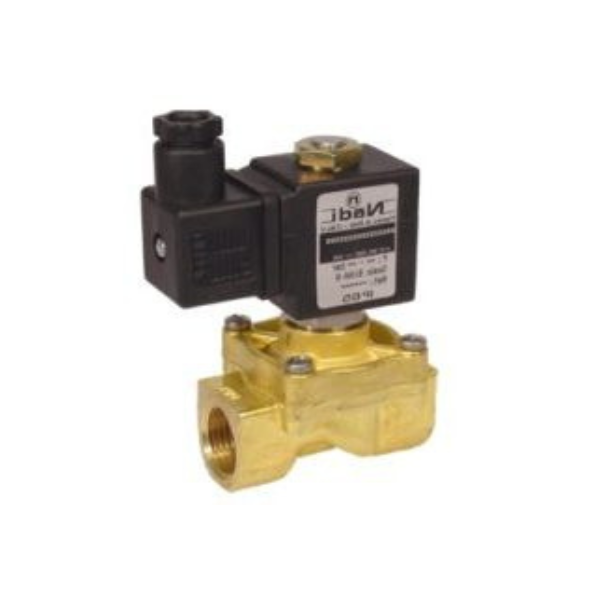

Nadi Series L89 Two Way Solenoid Valve

Nadi Series L89 Two Way Solenoid Valve: Two-way direct-acting solenoid valve with spring return. Suitable for cryogenic media (Liquid Nitrogen -192°C). Stainless steel internal parts. Stainless steel springs. 360° degrees orientable solenoid. Mountable in any position.

Nadi Series L89 Two Way Solenoid Valve. Nadi solenoid valves for Cryogenic Media are designed according to European standards and with explosion-proof certificates according to actual “ATEX” 2014/34/UE regulations.

Design, manufacturing method, quality assurance, and tests are carried out by a staff, with 30 years experienced in advanced solenoid valves production, able to collaborate with customer’s technical departments in order to solve special problems, make feasibility studies for solenoid valves or its duty for special applications.

Two-way direct-acting solenoid valve with spring return. Suitable for cryogenic media (Liquid Nitrogen -192°C). Stainless steel internal parts. Stainless steel springs. 360° degrees orientable solenoid. Mountable in any position.

Nadi S.r.l. is an Italian social company that manufactures service gravity solenoid valves, particularly used in the field of industrial instrumentation, for highly reliable system blocks and alarms.

Features

Body Material

  • Brass
  • Nickel-plated Brass

Port Size

  • 3/8″ GAS
  • 1/2″ GAS
  • 3/8″ NPT
  • 1/2″ NPT

Seals Materials

  • PTFE

Protection Class

  • IP65

Applications

  • In: IN
  • Out: OUT
  • Coil de-energized: IN and OUT closed.
  • Coil energized: from IN to OUT.

Specifications

Continuous duty glass-reinforced nylon molded coil with electrical connection suitable for DIN-43650A plug (2 poles+ground) or “faston” wire terminal.

  • Coil Type: B7
  • Insulation class: F (155°C) – H (180°C) upon request.
  • Winding wire class: H (180°C)
  • Protection class: Waterproof IP-65 (EN60529 standards)
    when properly plug connected with
    DIN-43650A plug.
  • Duty: Continuous (S.I.) 100% ED
  • Power consumption Alternate Current 22VA (inrush 40VA)
  • Direct Current 27W
  • Voltage tolerance: ± 10%
  • Electrical Insulation: >1000 MOhm
  • Dielectric Strength: >2000 V/1’
  • Standard voltages: 12 – 24 – 48 – 110 – 220 Vac~
  • 50/60Hz:  12 – 24 – 48 – 110 – 220 Vdc=
    other voltages are available upon request.

Downloads

Datasheet : Nadi Series L89 Two Way Solenoid Valve for Cryogenic Media
