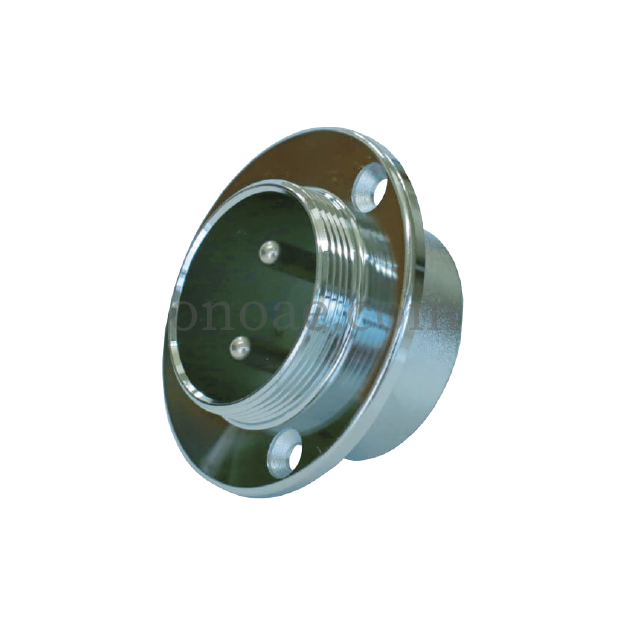

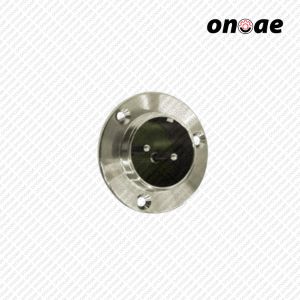

Nanaboshi NCS-302-R

Nanaboshi NCS-302-R

Rp 189.500

Product Note:

No product notes available.

SKU: CNNCS302R Category: Tags: , ,

15 in stock

Contact us

Description

Nanaboshi NCS-302-R

Nanaboshi NCS-302-R are circular connectors with simple structures for various applications (Plugs, Receptacles, Adapters) manufactured high-quality Connectors for telecommunications devices, Industrial equipment, Electrical power equipment, Measuring devices, Electronic devices, etc. with a wide range of connector types such as :

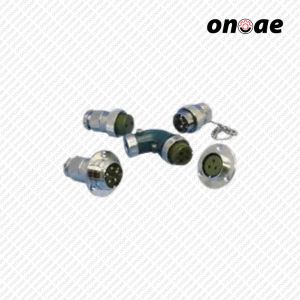

  • NET Series
  • NEW Series
  • NJC Series
  • NR Series
  • NJW Series
  • NRW Series
  • NCS Series
  • NWPC Series
  • NT Series
  • NHVC Series
  • NMI Series

Metal connectors for indoor use: NCS, NJC, NR, NET, etc. Waterproof metal connectors for outdoor use: NWPC, NJW, NRW, NEW, NHVC, etc. Waterproof Ethernet Connector for outdoor: ENJW series, ENRW series Stocks include the highly versatile NCS series of metal connectors (plugs) for indoor use, as well as the NJC series of up to 24 pins, the one-touch lock type NR series, the NWPC series of water-resistant outdoor connectors, the NJW series, NRW series, ENJW series, ENRW series, etc. (excluding certain sizes).

Additional information

Weight0,3 kg

Specifications



ParameterSpecification
Manufacturer / BrandNanaboshi Electric Mfg. Co., Ltd.
Product SeriesNCS Series (Nanaboshi Circular Standard)
Model Part NumberNCS-302-R
Focus Keyword TargetNanaboshi NCS-302-R Circular Connector
Connector Gender / TypePanel-Mount Receptacle (Female Socket Contacts)
Shell Size / SeriesSize 30
Number of Contacts2 Pins
Rated Current15 A per contact
Rated Voltage250 V AC/DC
Withstanding Voltage1800 V AC (for 1 minute)
Insulation Resistance$ge 2000 text{M}Omega$ (at 500V DC)
Wire Termination MethodSolder Cup Terminal
Max Wire Conductor Size2.0 $text{mm}^2$ (AWG 14 max)
Shell Material & FinishZinc Alloy Die-Cast with Chrome Plating
Operating Temperature Range-40°C to +120°C (-40°F to +248°F)

Features

  • Rugged Die-Cast Zinc Alloy Shell: High-strength, chrome-plated metal housing delivers maximum physical durability and structural impact protection in aggressive industrial environments.

  • 2-Pole High-Current Contact Array: 2-pin layout optimized for dedicated single-phase AC power lines, DC bus lines, and high-current control circuits.

  • Vibration-Proof Threaded Coupling: Standard screw-thread locking interface prevents accidental cable disconnects caused by continuous machinery vibration or shock.

  • High-Conductivity Copper Alloy Contacts: Precision female socket contacts ensure minimal contact resistance, low thermal buildup, and long mechanical mating life.

  • High-Temperature Insulating Core: Sturdy synthetic resin insulation maintains high dielectric strength under elevated operational temperatures up to +120°C.

  • Standardized Series Interchangeability: Fully compatible with standard Nanaboshi NCS-30 series 2-pin male plugs, inline jacks, and protective metallic dust caps.

Applications

  • Factory Automation & Motor Control: Panel-mount power interconnects for single-phase motors, solenoids, power supplies, and control cabinets.

  • Metalworking & CNC Machine Tools: Chassis power feeds for automated lathes, milling stations, grinding units, and hydraulic units.

  • Processing & Packaging Equipment: High-current power supply feeds for conveyor drives, packaging machinery, and washdown equipment.

  • Power Generators & Distribution: Removable panel power interfaces for portable generators, power transformers, and switchgear panels.
