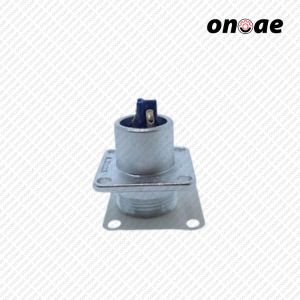

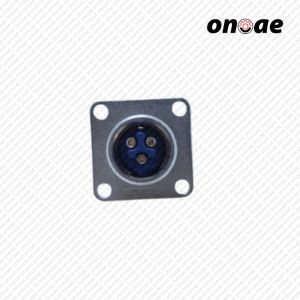

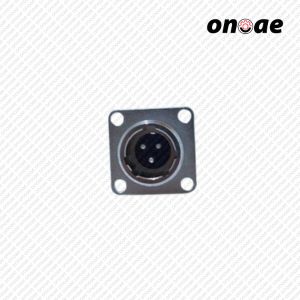

Nanaboshi NJC-163-RM Circular Connector

Nanaboshi NJC-163-RM Circular Connector

Rp 98.000

Product Note:

No product notes available.

10 in stock

Description

The Circular Connector Nanaboshi NJC-163-RM is an industrial connector designed in accordance with the JIS C 5432 standard, ensuring reliable quality and performance for industrial applications. It is available in a wide range of models and configurations, providing flexibility to accommodate various application requirements. In addition, the connector complies with recognized safety standards and has demonstrated proven performance across diverse industries, including semiconductor equipment and precision measuring instruments, making it a dependable solution for demanding industrial environments.

Features

  • Smooth coupling due to 5-key system guide
  • JIS C 5432 compliant connectors
  • Die cast shell with zinc alloy or aluminum alloy
  • Non-waterproof
  • Thread Lock
  • Cable termination: Solder
  • Contact Material: Copper alloy
  • Insulator Material: Synthetic resin
  • Contact Finish: Silver & Gold plating

Applications

Ideal for connecting cables with equipment and other cables in a non-waterproof indoor environment such as inside a factory.

Specifications

  • Connector shape : Circular
  • Connector series initials : MNO
  • Series starting with M, N, O : NJC
  • Applicable pin/contact : Male
  • Number of cores : 3
  • Application : Panel mount
  • Allowable Current(A) : 10
  • Allowable Voltage(V) : 125
  • Wire connection method : Solder
  • Connection direction : Straight
  • IP Rating : None
  • Representative standards : PS

Downloads

Download Data Sheet : Nanaboshi NJC-163-RM Circular Connector
