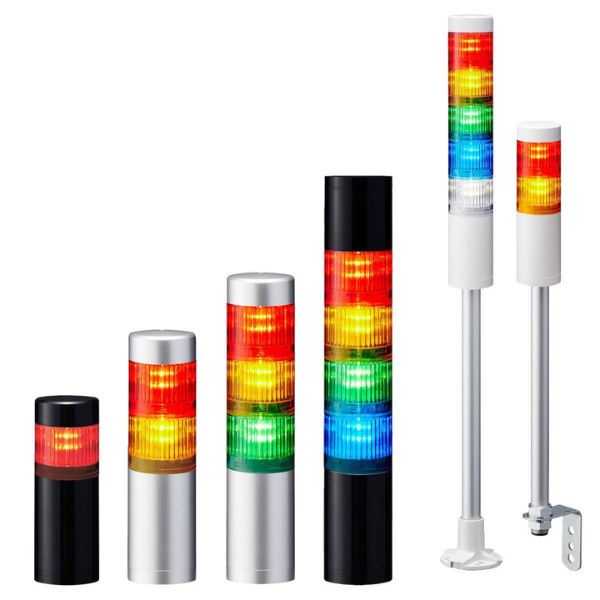

Patlite LR5 Series 50mm LED Signal Tower Lights

Patlite LR5 Series 50mm LED Signal Tower Lights: Next generation signal tower series featuring ultra-bright LEDs, a modular design, and a wide selection of options to take on the most challenging applications.

Patlite LR5 Series 50mm LED Signal Tower Lights are redesigned lens and improved module construction delivering bright, even light for visibility from further distances, re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omnidirectional sound. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m).

A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules, A sleek, smooth form factor, and rugged body construction for performance in harsh environments, carrying an IP65 protection rating.

Since 1947, PATLITE has offered state-of-the-art equipment for the process and industrial automation industries. Innovative and durable design, backed by years of industry experience and a strong commitment to safety and security, has made PATLITE the world’s best-known manufacturer of visual and audible signaling devices. Headquartered in Japan, PATLITE has more than 1000 employees worldwide with wholly-owned sales subsidiaries in the USA, Mexico, Germany, Singapore, Korea, Thailand, Taiwan, and China.

Features

  • Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.
  • Re-engineered, completely enclosed sound module maintains substantial water and dust protection while producing loud, omnidirectional sound. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
  • A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
  • A sleek, smooth form factor and rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
  • Standard body color: Off-white. Silver and black bodies are available as components only (DC24V Only).
  • Body unit with terminal block available as a component in off-white, silver, or black (LR5-WT & LR5-KT – DC24V only). Click here for more details.
  • Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).
  • Available in DC12V (special order) and DC24V.
  • Available with a Clear lens (special order).

Applications

  • Control/Switchboard Panel Lighting
  • Machinery and Equipment Lighting

Specifications

Operating Ambient Temperature -20℃ – +50℃
Operating Humidity Range 90% RH or less, no condensation
Storage Temperature Range -30℃ – +60℃
Storage Humidity Range 90% RH or less, no condensation
Mounting Location Indoor Use
Mounting Direction Upright Position
Protection Rating*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental Conditions Upright Position
Insulation Resistance More than 1MΩ at DC500V between the power input lead and chassis
Withstand Voltage AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
Flash Rate 60 ±2 Flashes/min
Sound Level LR5Typ. 85dB  LR5 DC12VTyp. 80dB
Sound Reduction*2 ab. -10dB reduction
Environmental Conditions Buzzer Sound No.4 (Sweep) from all directions at a 1m distance
Buzzer Sound 4 patterns*2 No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound
Transistor Output NPN / PNP
Conformity Standards ●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS Directive (EN IEC 63000)
●EMC Directive (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
