Description

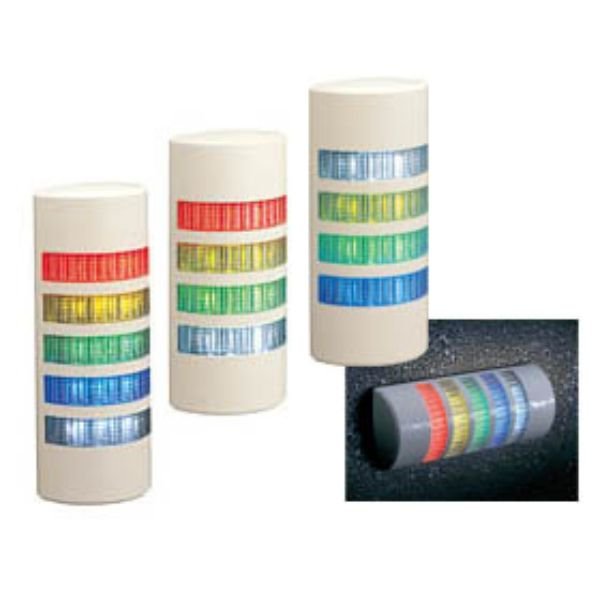

Description Of Patlite WEP 37.5mm Profile Signal Tower

Patlite WEP 37.5mm Profile Signal Tower for a clear vertical cut lens for enhanced illumination over a wide perspective, and FB type: Built-in audible alarm with 90dB at 1m, the type of installation: Vertical and horizontal, had a lens superior impact and heat resistant polycarbonate resin for superior durability and light transmission, NPN/PNP Compatible: Direct connection to PLC (24V DC ONLY).

The WEP Series is an ivory-colored, slim-styled body “half-moon” signal tower to integrate seamlessly with equipment.

Since 1947, PATLITE has offered state-of-the-art equipment for the process and industrial automation industries. Innovative and durable design, backed by years of industry experience and a strong commitment to safety and security, has made PATLITE the world’s best-known manufacturer of visual and audible signaling devices. Headquartered in Japan, PATLITE has more than 1000 employees worldwide with wholly-owned sales subsidiaries in the USA, Mexico, Germany, Singapore, Korea, Thailand, Taiwan, and China.

Features

Clear Vertical Cut Lens: For enhanced illumination over a wide perspective.
FB type: Built-in audible alarm with 90dB at 1m.
Installation: Vertical and horizontal.
Body Color: Light gray.
Lens: Superior impact and heat-resistant polycarbonate resin for superior durability and light transmission.
NPN/PNP Compatible: Direct connection to PLC (24V DC ONLY)
Lighting Pattern: Flashing and Continuous.
Dust-proof and waterproof IP65 (except for FB type: IP54).
Available Colors: Red, Amber, Green, Blue, Clear/White.

Applications

Control/Switchboard Panel Lighting
Machinery and Equipment Lighting

Specifications

Dimensions	37.5mm profile
Rated Voltage	24V AC/DC
Functions	Continuous Only Continuous, Alarms
Mounting	Wall Mount
Body Color	Light gray
Body Style	Pre-assembled, pre-wired
Stackable Tiers	Available from 3 to 5-tier versions
Module Colors	Red Amber Green Blue Clear
Audible Style	Alarm 1: Selectable, single-tone, intermittent (fast beep) alarm; 90dB (at 1m) Alarm 2: Selectable, single-tone, intermittent (slow beep) alarm; 90dB (at 1m)
Conformity Standards	CE Marking UL Recognized Component (US) RoHS
Protection Rating	IP65 IP54(FB Type)

Description

Description Of Patlite WEP 37.5mm Profile Signal Tower

The WEP Series is an ivory-colored, slim-styled body “half-moon” signal tower to integrate seamlessly with equipment.

Features

Clear Vertical Cut Lens: For enhanced illumination over a wide perspective.

FB type: Built-in audible alarm with 90dB at 1m.

Installation: Vertical and horizontal.

Body Color: Light gray.

Lens: Superior impact and heat-resistant polycarbonate resin for superior durability and light transmission.

NPN/PNP Compatible: Direct connection to PLC (24V DC ONLY)

Lighting Pattern: Flashing and Continuous.

Dust-proof and waterproof IP65 (except for FB type: IP54).

Available Colors: Red, Amber, Green, Blue, Clear/White.

Specifications

Dimensions

37.5mm profile

Rated Voltage

24V AC/DC

Functions

Continuous Only
Continuous, Alarms

Mounting

Wall Mount

Body Color

Light gray

Body Style

Pre-assembled, pre-wired

Stackable Tiers

Available from 3 to 5-tier versions

Module Colors

Red
Amber
Green
Blue
Clear

Audible Style

Alarm 1: Selectable, single-tone, intermittent (fast beep) alarm; 90dB (at 1m)
Alarm 2: Selectable, single-tone, intermittent (slow beep) alarm; 90dB (at 1m)

Conformity Standards

CE Marking
UL Recognized Component (US)
RoHS

Protection Rating

IP65
IP54(FB Type)
