Sale!

Rheonik RHE42 Field Mount Flow Transmitter

Name: Rheonik RHE42 Field Mount Flow Transmitter | onoae
Price: 93750000 IDR
Availability: InStock

Original price was: Rp 150.450.000.Current price is: Rp 93.750.000.

Product Note:

No product notes available.

Categories: Coriolis Mass Flow Meter, Flow Measurement, Others Tags: Coriolis Mass Flow Meter, Flow Measurement, Rheonik

Description

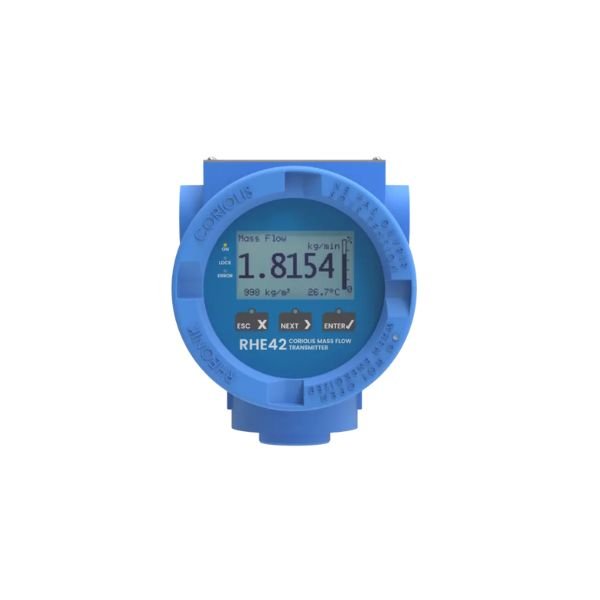

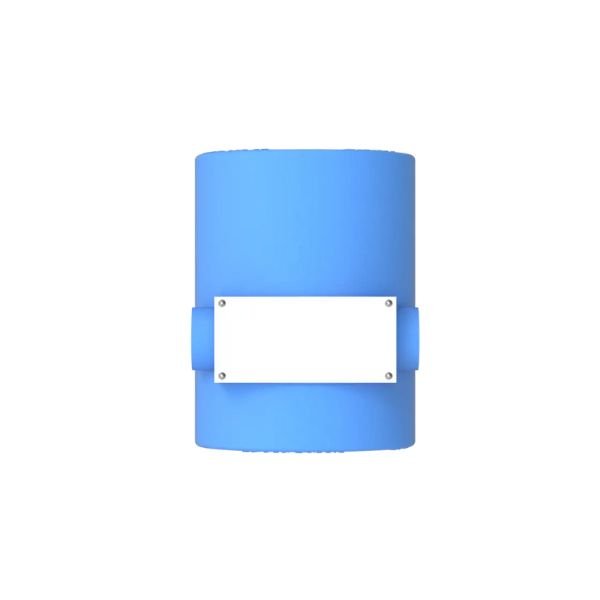

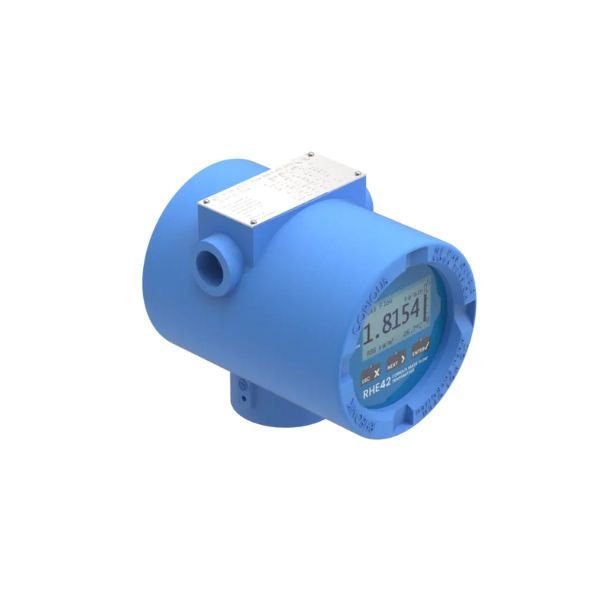

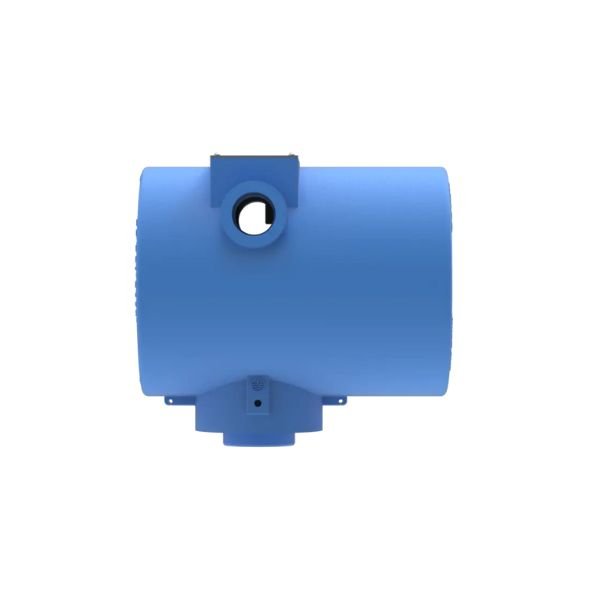

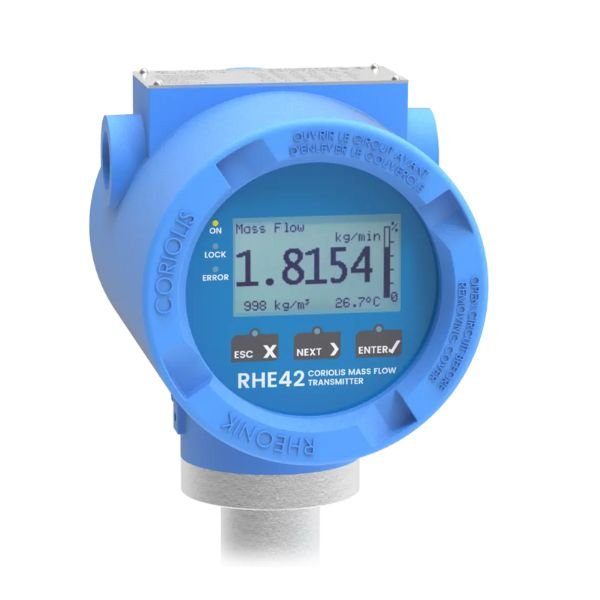

Rheonik RHE42 Field Mount Flow Transmitter

Rheonik RHE42 Field Mount Flow Transmitter With highly accurate measurement performance and extreme capabilities, Rheonik meters are a natural choice for many applications and quickly provide payback through improved product quality and greatly reduced maintenance. Whether used for transfer, batching, process feed or control, Rheonik meters can provide online flow and density measurement.

Description of Rheonik RHE42 Field Mount Flow Transmitter

Rheonik RHE42 Field Mount Flow Transmitter can achieve an ultimate mass flow measurement uncertainty of 0.05 %, making it ideal for both filling and bottling or any kind of high accuracy/reliability plant flow or density measurement. Connectivity includes a full suite of communications buses including Foundation Fieldbus and Modbus TCP/IP. The RHE 42 is a well specified transmitter relevant for large scale plant and project opportunities.

Specifications

Enclosure Material : Powder coated aluminum
Enclosure Rating : IP65/Type 4, optional IP66-67/Type 6
Ambient Temperature : -20 to +60°C / -4 to +140°F,optional-40°C to +65°C / -40°F to 149°F
Integralvers on depends upon fluid temperature, refer to next page
Dimensions : Enclosure approx. 144 x 108 x 139 mm / 5.67 x 4.25 x 5.47in
User Interface and Configuration :
local Display Version
High contrast backlit LCD color
display and 3 x through-glass
operator buttons. Configure
locally or with RHECom software
Reduced display visibility below -l0°C / 14 °F
Blind Transmitter Version
No local controls. Configure through RHECom software package

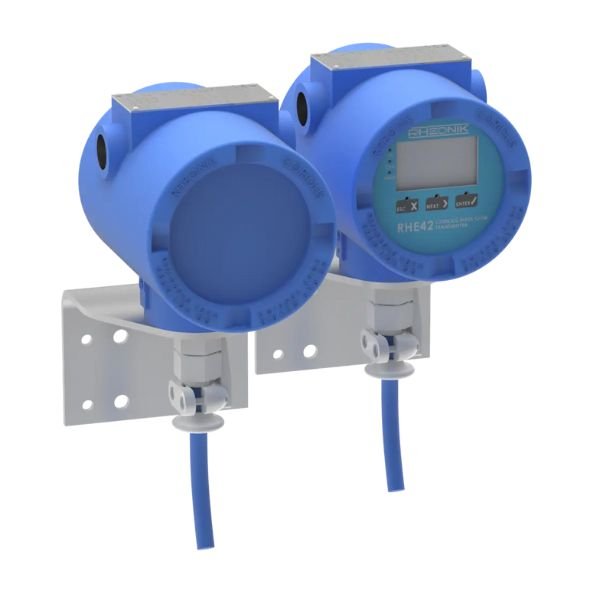

Connection to Sensor : Integral/Compact to sensor or remote mount with 3m/10m cable
Cable Entries : 2 ½” x NPT for power and l/O
Computer Connection : Via Modbus RTUto PC
Totalizers : 6 x resettable forward, reverse and net totalizers for mass and volume
2 x non-resettable totalizers for mass and volume
Analog Outputs : Up to 2 x 4-20mA outputs, active or passive.
Intrinsically safe versions available
Pulse/Freq/Status Outputs : Up to 2 configurable pulse/frequency/status outputs (IEC60946).
Max. 1OkHz. Intrinsically safe versions available (open collector)
Digital Inputs : Up to 2 configurable control inputs ( EC60946).
Intrinsically safe versions available
Digital Data Communications : HART,Modbus RTU,Ethernet (Modbus TCP/1Pv4),Foundation
Fieldbus Hl(FISCO), Profibus PA
Power Supply : 12-24 VDC +/- 10%, 2W typical, 4W maximum
Hazardous Area Approvals : ATEX/IECEx and cCSAus

Features

• All-Digital Coriolis Transmitter incl. real time clock with advanced signal processing for ultimate measurement performance
• Integral/compact or remote mount
• IECEx/ATEX and CSA North America hazardous area certifications
• Connects to any Rheonik Coriolis sensor
• Multifunction performance provides simultaneous mass flow, volumetric flow, density, and temperature measurements
• 8 totalizers – 2 non-resettable, 6 for mass/volume (positive, negative, net flow)
• Two 4-20mA (active or passive), pulse, frequency, status plus digital inputs.
Intrinsically safe (is) option available
• Multiple interfaces including Ethernet
provides connect ion options for every
application: HART, Foundation Fieldbus H1,
Profibus PA, Modbus RTU and Ethernet (Modbus TCP/1Pv4)
• License-free RHECam Software package version for configuration and servicing
• RHECamPro+ Software Suite for extended diagnostics
• Display with Color back-lit display with 3 through-glass buttons for local configurationand operation through an intuitive user menu

Applications

Filling and batching – transmitter includes batch controller
Any high accuracy/reliability plant flow or density measurement
Oil and Gas
Mixing and blending of chemical – transmitter includes PID Controller
PU industries – panels, foam, polymers
Paint – any pressure calss application
High pressure flow measurement – sensora up to 1400 bar / 20000 psi available

Downloads

Datasheet: Rheonik RHE42 Field Mount Flow Transmitter

Rheonik RHE42 Field Mount Flow Transmitter

With its advanced digital signal processing capability and in conjunction with our sensors, the RHE 42 can achieve an ultimate mass flow measurement uncertainty of 0.05 %, making it ideal for both filling and bottling or any kind of high accuracy/reliability plant flow or density measurement. Connectivity includes a full suite of communications buses including Foundation Fieldbus and Modbus TCP/IP. The RHE 42 is a well specified transmitter relevant for large scale plant and project opportunities.
