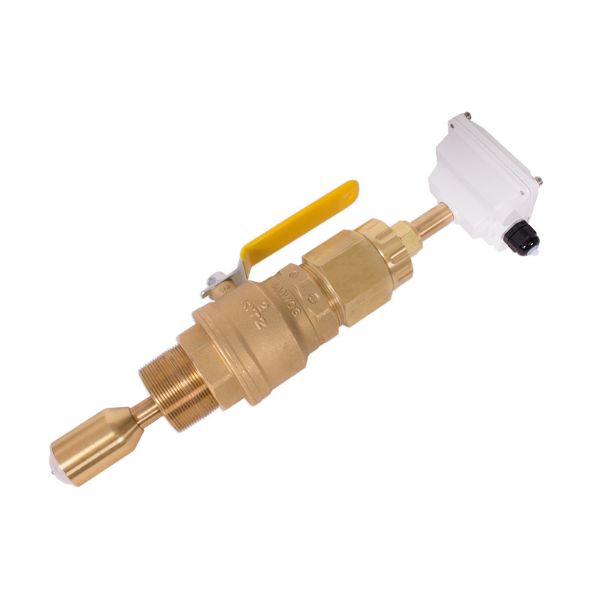

Seametrics EX150/EX250 Insertion Magmeters

Seametrics EX150/EX250 Insertion Magmeters has no rotor to stop turning in dirty water and there are no bearings to wear out. Like all magmeters, when used in chemical injection applications, these meters should be installed upstream of the chemical line (or far enough downstream to allow complete mixing of fluids before the meter). Adapters mate with standard 1-1/2” (11x/21x) or 2” (15x/25x) FNPT threaded fittings such as saddles and weldolets which may be purchased either locally or from Seametrics.
A rapidly reversing magnetic field is produced in the lower housing. As the fluid moves through this field, a voltage is generated that is measured and translated into a frequency signal proportional to flow rate. This square wave signal can be sent directly to a PLC or other control or can be converted using any of the Seametrics family of indicators and converters.
A modular system of electronics can be installed directly on the flow sensor or mounted remotely. The FT430 (externally powered with pulse) and the FT440 (loop powered), both provide digital rate and total displays, as well as a programmable pulse; the FT440 also provides a 4-20 mA analog output.

Features

No moving parts
Durable
Adjustable depth
Hot-tap available
Brass or stainless steel
Immersibility (optional)
Reverse flow output (optional)
NSF/ANSI standard 61 & 372 (stainless only)
Data logger (optional)
Sensus smart output (optional with display)

Applications

3” – 48” pipe (up to 72” optional)
Clean or “dirty” liquids
Conductive liquids
Municipal
Industrial
Irrigation

Specifications

Pipe Size		3” to 48” (up to 72” optional)
Power		Full Power: 12 – 24 Vdc, 250mA Low Power: 12 – 24 Vdc, 40mA average with 250mA peaks
Materials	Housing	Powder-coated cast aluminum
	Tubing/Fitting/Sensor Housing	Brass or 316 Stainless Steel
	Electrodes	Hastelloy
	Electrode Cap	PVDF
	O-Ring (15x/25x only)	EPDM
	Valve Assembly (15x/25x only)	Bronze ball valve, both models (Stainless steel valve optional for stainless steel model)
Fitting Size Required		11x/21x: 1.5” FNPT 15x/25x: 2” FNPT
Maximum Pressure		200 psi (14 bar)
Temperature	Ambient	0˚ to 160˚ F (-17˚ to 72˚ C)
	Fluid	32˚ to 200˚ F (0˚ to 93˚ C)
Minimum Conductivity		20 microSiemens/cm
Flow Velocity		0.28 – 20 ft/sec (0.08 – 6.09 m/sec)
Accuracy		± 1% of full scale
Output		Square wave pulse, opto-isolated, 500 Hz @ 20 ft/sec 6 mA max, 30Vdc forward flow standard; reverse flow optional
Empty Pipe Detection		Software, defaults to zero flow
Cable		Standard 18’ (6m), #22 shielded twisted pair, 4-conn. Max. cable run at 24 Vdc = 1000’ (300m); at 12 Vdc = 500’ (150m). For other circumstances, contact the factory.
Environmental		See meter mounted electronic specification for rating.
Regulatory		Mark (applies to full power sensor only configuration and full power FT 430/440 mounted configurations). Certified to NSF/ANSI standard 61 and NSF 372 (Stainless only)
