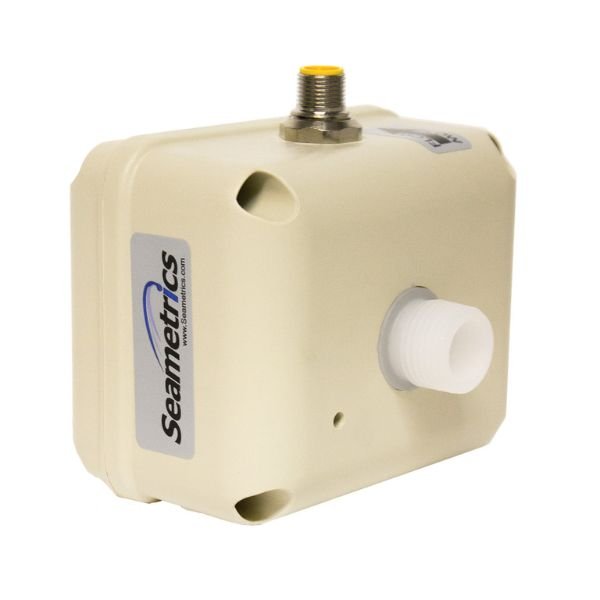

Seametrics PE202 Low Flow Magmeter

Seametrics PE202 Low Flow Magmeter is designed for low-flow chemical injection or difficult-to-meter applications with pulsating metering pumps in 3/4” to 1/4” pipe/tube. The housing is made of sturdy splashproof HDPE plastic. With no moving parts, the PE202 can handle fluids containing particulate matter without clogging or jamming, keeping maintenance at a minimum. With no metallic parts (100% PVDF body and PVDF carbon fiber-filled electrodes), the meter is corrosion-resistant and compatible with a wide range of chemicals. Accuracy is maintained with conductive fluids (>20 micro siemens) of varying viscosities and densities. The PE meter is compact enough to fit most pump/injection systems. With zero straight pipes required after an elbow, it can be easily mounted in tight spaces. The mounting bracket adds stability.

Core Operational Principles

Faraday’s Law Electromagnetic Sensing: Creates a magnetic field across the sensor flow channel. As conductive liquid ( $\ge 20\text{ }\mu\text{S/cm}$ ) flows through, a voltage is generated across the Hastelloy electrodes proportional to liquid velocity.
Full-Bore Plastic Construction: Features a PVDF (Kynar®) or polypropylene body with no internal obstructions or moving rotors, preventing fouling from suspended solids or crystallization.
Low-Flow Optimization: Designed specifically for small tube diameters ( $1/2\text{''}$ to $3/4\text{''}$ ) where low flow rates render standard insertion or flanged magmeters ineffective.

Specifications

Parameter	Specification
Manufacturer	Seametrics Inc.
Model Designation	PE202 Series
Line Sizes	$1/2text{''}$ and $3/4text{''}$ ( $13text{ mm}$ and $19text{ mm}$ )
Flow Ranges	$0.1text{ to }20text{ GPM}$ ( $0.38text{ to }75.7text{ L/min}$ ) depending on line size
Accuracy	$pm 1%text{ of Full Scale}$
Body / Wetted Materials	PVDF (Kynar®) body, Hastelloy C electrodes, EPDM or Viton® O-rings
Pressure Rating	Up to $150text{ PSI}$ ( $10.3text{ bar}$ ) at $75^circtext{F}$
Fluid Temperature	$32^circtext{F to }130^circtext{F}$ ( $0^circtext{C to }55^circtext{C}$ )
Signal Output	Current-sinking square wave pulse (directly interfaces with PLCs, totalizers, or Seametrics displays)
Power Supply	$12text{--}24text{ VDC}$

Seametrics PE202 Low Flow Magmeter

Core Operational Principles

Faraday’s Law Electromagnetic Sensing: Creates a magnetic field across the sensor flow channel. As conductive liquid ( $\ge 20\text{ }\mu\text{S/cm}$ ) flows through, a voltage is generated across the Hastelloy electrodes proportional to liquid velocity.

Full-Bore Plastic Construction: Features a PVDF (Kynar®) or polypropylene body with no internal obstructions or moving rotors, preventing fouling from suspended solids or crystallization.

Low-Flow Optimization: Designed specifically for small tube diameters ( $1/2\text{''}$ to $3/4\text{''}$ ) where low flow rates render standard insertion or flanged magmeters ineffective.

Specifications

Parameter

Specification

Manufacturer

Seametrics Inc.

Model Designation

PE202 Series

Line Sizes

$1/2text{''}$ and $3/4text{''}$ (

13text{ mm}

and

19text{ mm}

)

Flow Ranges

0.1text{ to }20text{ GPM}

(

0.38text{ to }75.7text{ L/min}

) depending on line size

Accuracy

$pm 1%text{ of Full Scale}$

Body / Wetted Materials

PVDF (Kynar®) body, Hastelloy C electrodes, EPDM or Viton® O-rings

Pressure Rating

Up to $150text{ PSI}$ (

10.3text{ bar}

) at

75^circtext{F}

Fluid Temperature

32^circtext{F to }130^circtext{F}

(

0^circtext{C to }55^circtext{C}

)

Signal Output

Current-sinking square wave pulse (directly interfaces with PLCs, totalizers, or Seametrics displays)

Power Supply

12text{--}24text{ VDC}
