Technoton DFM Differential Fuel Flow Meter

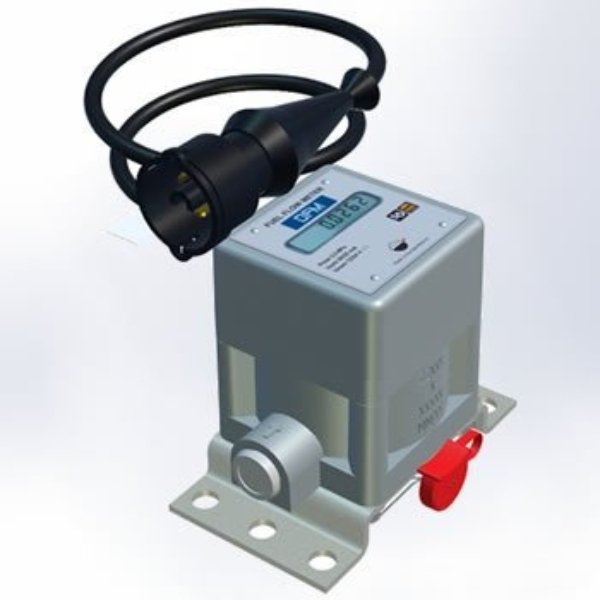

Technoton DFM Differential Fuel Flow Meter differential fuel flow meter is designed for diesel fuel consumption measurement in fuel lines of vehicles and stationary engines and is used as part of a GPS vehicle tracking system. In addition, DFM D registers the working time of the engine in various modes of operation.

Technoton DFM Differential Fuel Flow Meter differential fuel flow meter is designed for diesel fuel consumption measurement in fuel lines of vehicles and stationary engines and is used as part of a GPS vehicle tracking system. In addition, DFM D registers the working time of the engine in various modes of operation. DFM D is used for consumption monitoring of:

  • diesel fuel;
  • heating oil;
  • other types of liquid fuel with a kinematic viscosity of 1.5 to 6 mm2/ s.

DFM D fuel flow meters, which are equipped with a display, are used as a stand-alone (autonomous) solution for accounting fuel consumption, not requiring any connection to a web server. DFM D is more suitable for modern engines (Common rail or pump injector fuel systems) of vehicles and stationary units.

Features

• conformity with European and national automotive standards and
directives;
• protected from unauthorized tampering and “cheating”*;
• engine working time tracking separately for different operation modes;
• maximum information richness of output data**;
• high reliability of data transmission over digital interfaces **;
• unique self-diagnostics feature to monitor the stability and accuracy of
data**;
• possibility of integration into on-board telematics bus of vehicles ***;

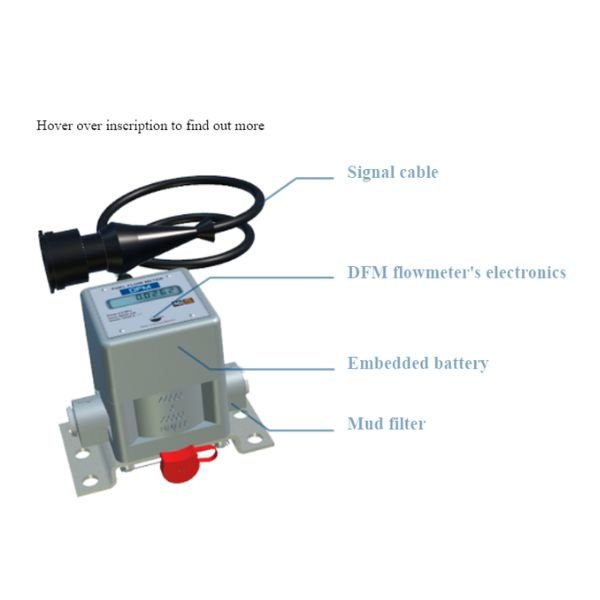

• built-in mud filter;
• minimum fluid flow resistance;
• 100 % of DFM are verified with a certified metrological test rig;
• full set of high-quality mounting accessories;
• great operating experience;
• high-quality technical support;
• affordable price.

Applications

  • Bus
  • Truck
  • Marine Vessel
  • Minning Vehicles
  • Diesel Locomotives
  • Agricultural Machinery
  • Diesel General Engine
  • Road Building Machinery

Specifications

Connecting thread M14x1.5
M16x1.5
Nominal pressure, bar 2
MAX pressure, bar 25
Supply voltage, V 10-45
Overvoltage protection, V ≤100
Current consumption, mA (24 V/12 V), mA 25 / 50
Operating temperature, (without/with display), °C -40..+85/
-20..+60
Ingress Protection Rating IP54
Relative accuracy error per chamber, %, not more than 1

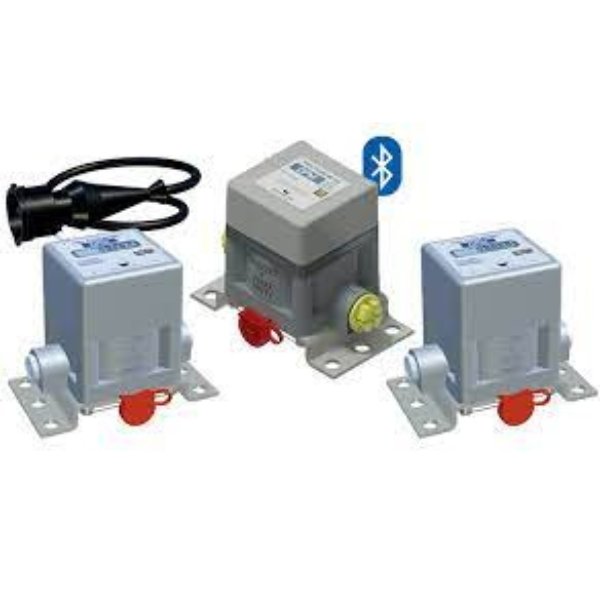

List of models

Model Nominal bore Start-up flow rate, l/h MIN flow rate, l/h MAX flow rate, l/h Recalibration interval, l
DFM 50 6 0,5 1 50 100 000
DFM 100 6 0,5 2 100 100 000
DFM 250 8 2 5 250 250 000
DFM 500 12 5 10 500 500 000



DFM order identification codes

*         A symbol is not specified for differential fuel flow meters.
**      For autonomous fuel flow meters Z version is not used.
***    This version is delivered upon special order. Designation U is available only for one-chamber flowmeters.

Downloads

Manual Instruction: Technoton DFM Fuel Flow Meter
