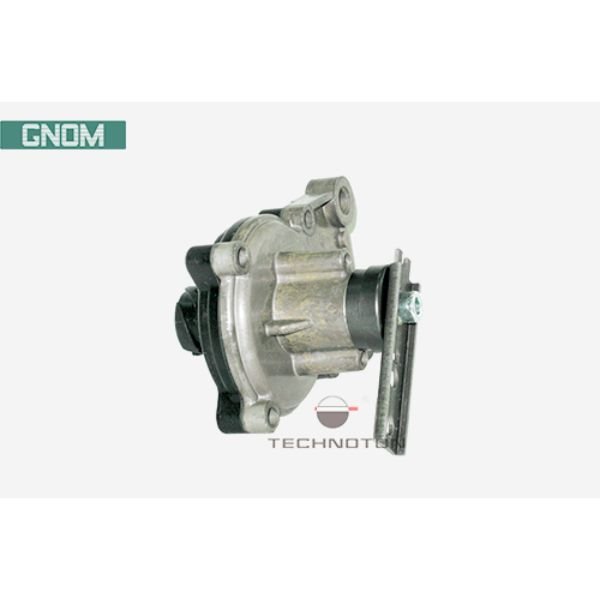

Technoton GNOM DP Axle Load Sensor

Technoton GNOM DP Axle Load Sensor is designed for measuring axle and cargo load on vehicles with leaf spring suspension.

Technoton GNOM DP Axle Load Sensor is designed for measuring axle and cargo load on vehicles with leaf spring suspension. GNOM DP integrates into a fleet monitoring system and transmits data as an analog signal. The tracking device converts this signal into load mass value according to the calibration table.

GNOM DP position sensor is installed on the rear axle or the rear bogie of the vehicle. A single sensor is enough to monitor the vehicle axle and cargo load.

Technoton has 20 years of experience in developing, manufacturing, and installing aftermarket vehicle electronics for fuel monitoring and operating parameter analysis of highway trucks, light commercial vehicles, diesel trains, construction and agricultural equipment, riverboats, tractors, and special equipment. Also, the solutions are applicable for stationary units – fuel storages, boilers, burners, and diesel generators.

Features

  • high level of environment protection;
  • compliance with European and Russian automobile standards;
  • the linear characteristic of the output signal simplifies data processing by a fleet monitoring system;
  • the output signal is stabilized and doesn’t depend on onboard voltage;
  • short circuit and cords confusion protection.

Applications

• Axle load
• In-motion cargo weight measurement
• Heavy and Lightweight trucks with or without trailer
• Road assistance trucks
• Garbage trucks
• Concrete mixers and etc.

Specifications

Output voltage range, V 1.54…3.46
Absolute error of output voltage generating, mV, not more than ±80
Supply voltage range, V 8…32
Ingress Protection Rating IP55
Operation temperature range, ºС -40…+80
Weight, g, not more than 800

Downloads

Datasheet: Technoton GNOM DP Axle Load Sensor
