Thermax 4 Level Strips Temperature Label

Thermax 4 Level Strips Temperature Label Sensor is a range of Labels and Strips that change color permanently, indicating the maximum temperature achieved with Various styles of labels produced to cover temperatures. Available in a wide range of temperatures and sizes.

Thermax 4 Level Strips Temperature Label Sensor is a range of Labels and Strips that change color permanently, indicating the maximum temperature achieved with Various styles of labels produced to cover temperatures. Available in a wide range of temperatures and sizes. These irreversible labels can be used in numerous applications such as Food, Medical, Automotive, Aerospace, and Engineering.

Inexpensive and Easy to Use, Immediate Response, Permanent Record of Highest Temperature Reached, Oil, Water, and Steam Resistant. a fast, simple temperature monitoring system based on Proprietary color change technology

Thermax is a range of Labels and Strips that change color permanently, indicating the maximum temperature achieved. Available in a wide range of temperatures and sizes.

Inexpensive and Easy to Use, Immediate Response, Permanent Record of Highest Temperature Reached, Oil, Water, and Steam Resistant.

Features

Peel the temperature-indicating label from the backing paper. Apply to dust & grease-free surfaces. Indicators change from white/grey to black when the temperature rating has been achieved.

  • Inexpensive and Easy to Use
  • Immediate Response
  • Permanent Record of Highest Temperature

Accuracy Tolerances:

  • Less than 100°C is +/-1°C
  • 100°C to 154°C is +/-1.5°C
  • Greater than 154°C is +/-4ºC
  • Temperature range 29-290°C
  • Silver to Black Color Change
  • Last Black Event is the highest temperature achieved

***Note that labels with a polyimide film will appear orange to start.

Applications

These irreversible labels can be used in numerous applications such as :

  • Food
  • Medical
  • Automotive
  • Aerospace
  • Engineering

Specifications

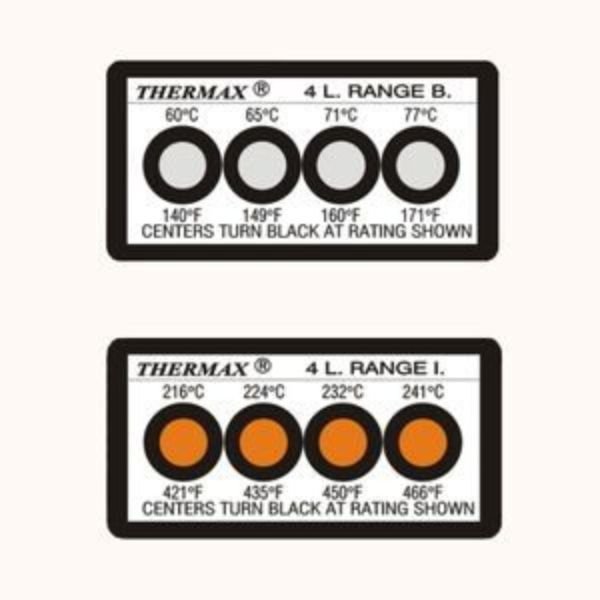

4 Level Range A    37-54°C
4 Level Range B    60-77°C
4 Level Range C    82-99°C
4 Level Range D    104-121°C
4 Level Range E    127-143°C
4 Level Range F    149-166°C
4 Level Range G   171-188°C
4 Level Range H    193-210°C
4 Level Range I     216-241°C
4 Level Range J    249-290°C

Size: 0.91″x1.77″ /23x45mm

Type: Horizontal, Self Adhesive

Scale: °C & °F

Pack Size: Sold in units of 10

Downloads

Datahseet : Thermax 4 Level Strips Temperature Label
