Tokyo Ryuki Kogyo Flo-I consists of a tapered tube and a float and measures the instantaneous flow rate of various liquids and gases by seeing through the float position in the vertically mounted tapered tube and reading the flow rate directly on the scale on the tapered tube. It is the most recommended product as an industrial flow meter because of its low cost.

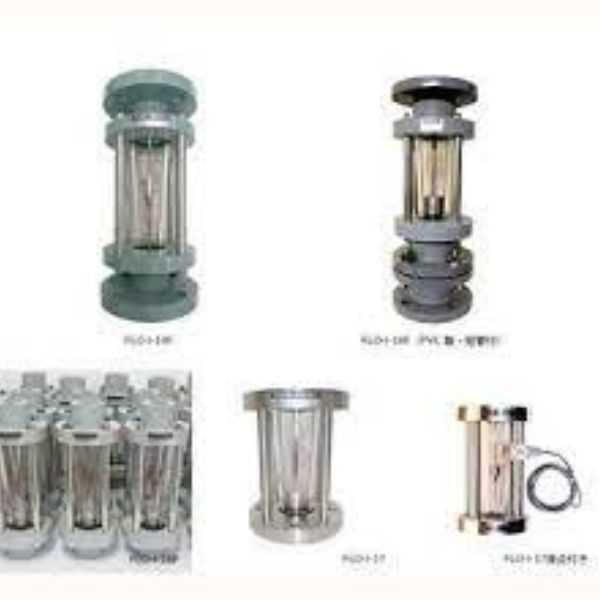

Tokyo Ryuki Kogyo Flo-I Model Number

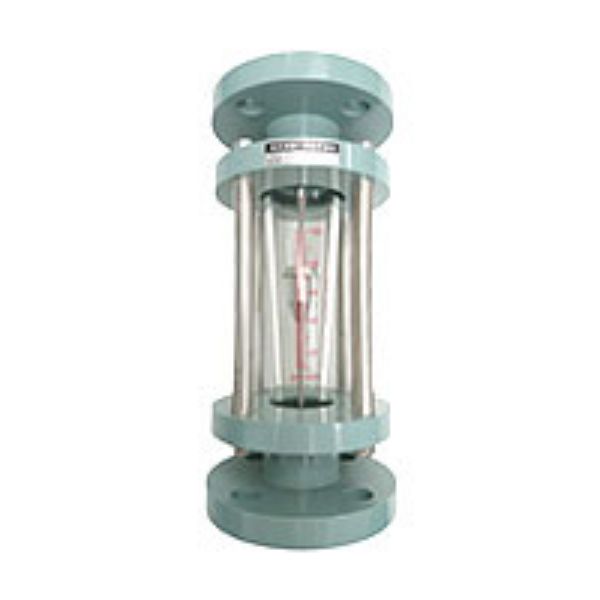

FLO-I-18F type
FLO-I-18P type
FLO-I-18PLe (with contacts)

Features

Easy to handle and measure for glass tube type, water, and general industrial use.* According to the instruction manual for the general-purpose area flowmeter.
Flow direction Lower → upper
Accuracy (%) ± 2F.S (measurement point)
Measurable Fluid For water
Maximum Operating Pressure (MPa) 0.7
Maximum Operating Temperature (℃) 80

Applications

Liquid
- Water
- Cooling water
- Transparent liquid
Gas
- Air
- Nitrogen
- Argon
- Carbon dioxide
- etc

Specifications

Classification No	Connection diameter (A)	Flow rate display	Flow rate display	External dimensions mm

		H2O (L / min)	AIR (NL / min)
1	15	0.5-5	5-50	280
2	15	1-10	15-150	280
3	20	1.5 ~ 15	30-300	280
Four	20	3-30	50-500	280
Five	twenty five	5-50	80-800	290
6	twenty five	10-100	150-1500	290
7	32	10-100	150-1500	290
8	32	15-150	200-2000	290
9	40	15-150		320
Ten	40	30-300		320

We will manufacture after confirming the fluid name, density, viscosity, pressure, temperature, flow rate range, connection standard, body material, packing material, etc.
For liquid measurement (float: SUS304, etc.)
* Density = 1.0 g / cm3 and viscosity = 1 cP are standard.

	connection	fluid	Classification	Wet contact material	Packing material	Flow rate range / operating temperature / pressure
FLO-I-18-	-□	-□	-0 □	-T	-P
	F [Flange type]	A [AIR]	0	BS	1 [NBR]
	P [Rc formula]	W [Wed]	1	SUS304	2 [CR (neoprene)]
		Any	2	SS	3 [FKM Byton]
			3	PVC
			Four
			Five
			6
			7
			8
			9
			Ten
			11 11
			12

*Detailed contents include flow rate range, working pressure, and temperature conditions.
In addition, please fill in if the fluid is other than air or water.

Model code entry example
①FLO-I-18-FW-05-TBS-P1 Flow range 10-100L / min,

temperature 20 ℃
Example ②FLO-I-18-PW-04-TSS-P1 Flow range 5-50L / min , Temperature 20 ℃ Example ② FLO-I-18-PW-06- TPVC

-P1 Flow rate range 10-100L / min, Temperature 20 ℃ Our serial number FM ○○○ ・・・ Please tell us (○ is 5 to 6 digits).

Regarding installation :

Select a place with less vibration for installation. In addition, provide a space required for replacement and cleaning of floats and other parts at the installation location.
Install so that the central axis of the tapered pipe is vertical. If the central axis of the tapered pipe is tilted with respect to the vertical line, the accuracy and sensitivity will decrease, so pay attention to the verticality of the rising pipe and the levelness of the mounting surface.
Provide a bypass pipe so that the operation will not be hindered even if the flow meter is removed for repair or maintenance.
Fix the piping so that the stress generated in the piping system is not transmitted to the flow meter.
As the movement of the float may become unstable, avoid sudden expansion or squeezing immediately before the inflow part or immediately after the outflow part.
Open and close the valve gently to avoid a sudden impact on the flow meter. (FLO-PL-I-18 type / FLO-L68 type)
