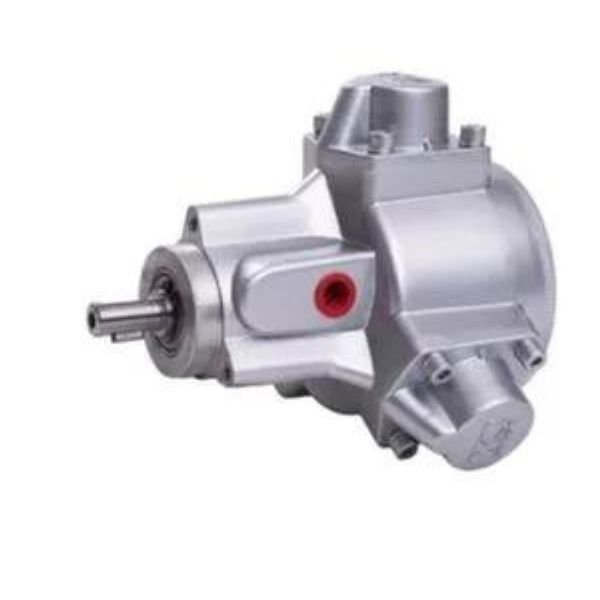

Tonson M1 G20 Piston Air Motor

Tonson M1 G20 Piston Air Motor patented high precision distinctive radial piston design delivers high torque without high levels of air consumption and air loss as compared to typical vane type air motors.

Tonson M1 G20 Piston Air Motor patented high precision distinctive radial piston design delivers high torque without high levels of air consumption and air loss as compared to typical vane-type air motors. Air Motors are designed to operate by compressed air and to be used with a filter, regulator, and lubricator to improve performance and provide longer life. Air Motors can easily operate under conditions that are unfavorable for electric, hydraulic, stepper, and servo motors.

Our M1 Radial Piston Air Motor is manufactured to the highest quality and we can customize it to suit your special requirements, various mount types, and material of construction including Stainless Steel. Many options for gearbox types, ratios, and mounting are available.

Features

  • Explosion-proof
  • Stalling Safety
  • Rugged Design
  • Positive Start
  • High Start Torque
  • High Torque output
  • Instanlty Reversible
  • Stepless Speed Control
  • Low Air Consumption
  • Easy Maintenance
  • Mounting Flexibility: Flange / Foot / IEC / NEMA / Custom Mounting available
  • Modular Design: All motors may be equipped with gear
  • reducer, brake, hand, remote, remote pendant control as options.
  • Dual-shaft model available.
  • Intrinsically safe in hazardous environment (ex. mines, petrochemical, volatile atmosphere

Applications

  • Hoist / Winches
  • Lifting Devices
  • Mixing Equipment
  • Pump Drives
  • Choppers / Grinders
  • Mining Equipment

Specifications

  • Type: G20 With Reducer
  • Gear Ratio: 20:1
  • Performance at Maximum Speed
  1. Power (HP): 0.10
  2. Power (kW): 0.07
  3. Torque: 11.5 N·m
  4. Torque: 102 lb·in
  5. Speed: 55 RPM
  6. Air Consumption: 200 l/min
  7. Air Consumption: 7 CFM
  8. Speed: 11 RPM
  • Maximum Torque
  1. Torque: 20.2 N·m
  2. Torque: 179 lb·in

Downloads

Datasheet : Tonson M1 G20 Piston Air Motor
