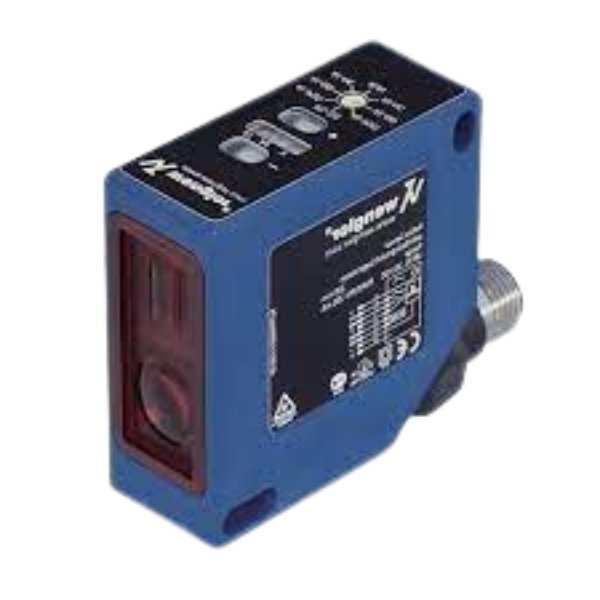

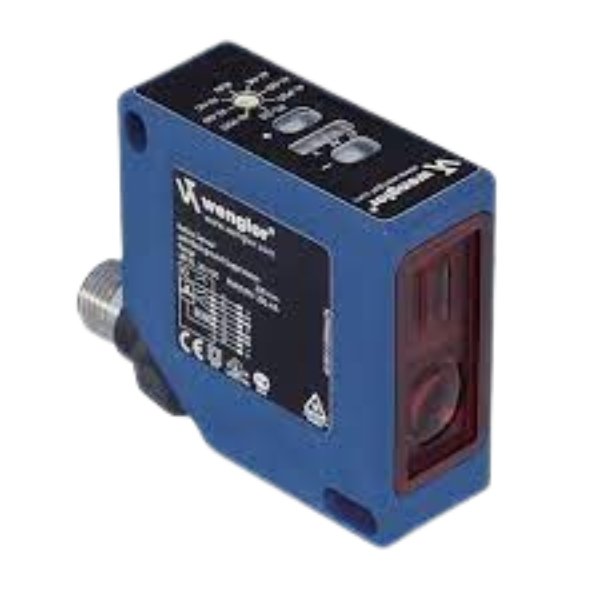

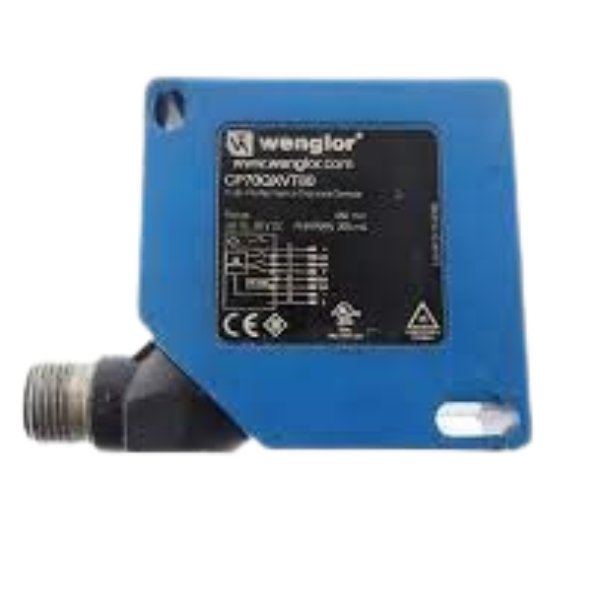

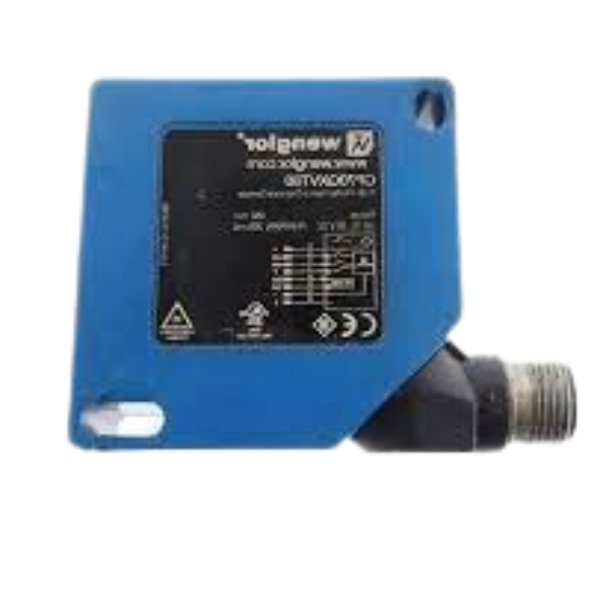

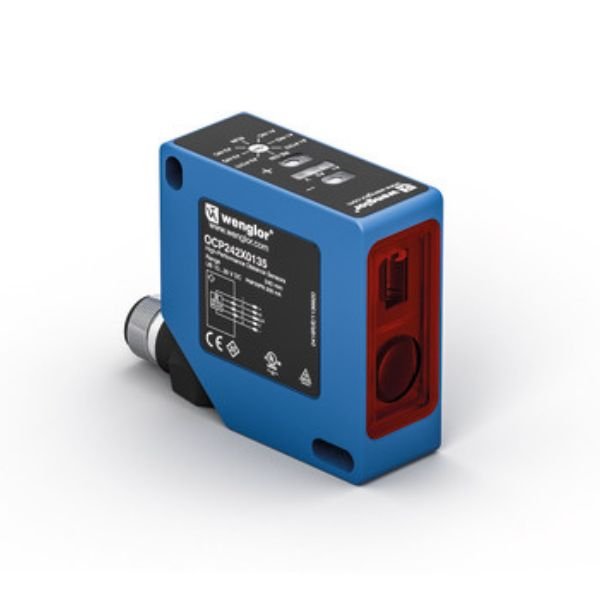

Wenglor CP70QXVT80 Sensor High Precision

Wenglor CP70QXVT80 Sensor High Precision works with a high-resolution CMOS line and DSP technology and calculates the distance via an angle measurement. This virtually eliminates switching point differences caused by material, color, and brightness.

Wenglor CP70QXVT80 Sensor High Precision works with a high-resolution CMOS line and DSP technology and calculates the distance via an angle measurement. This virtually eliminates switching point differences caused by material, color, and brightness. Two independent switching outputs are available, at which two switching thresholds and one on-delay or off-delay time can be set in 10 ms increments. Sensor functions can be activated and values can be output via the RS-232 interface.

Features at a Glance

  • CMOS line array
  • Highly accurate switching distance
  • Minimal switching hysteresis
  • Switching point independent of material, color, and brightness

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 50 mA
Switching Frequency 250 Hz
Response Time 2 ms
On-/Off-Delay (RS-232) 0 … 1 s
Temperature Drift < 50 µm/K
Temperature Range -25 … 60 °C
Number of Switching Outputs 2
Switching Output Voltage Drop < 1.5 V
Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Teach Mode HT, VT, TP
Baud Rate 38,400 Bd
Protection Class III
FDA Accession Number 0820587-000

Features

  • CMOS line array
  • Highly accurate switching distance
  • Minimal switching hysteresis
  • Switching point independent of material, color and brightness

Applications

Specifications

Optical Data

Range 660 mm
Setting Range 60 … 660 mm
Switching Hysteresis  < 1 %
Light Source Laser (red)
Wavelength 655 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10,000 Lux
Light Spot Diameter see Table 1

Mechanical Data

Setting Method Teach-In
Housing Material Plastic
Degree of Protection IP67
Connection M12 × 1; 8-pin

Output

Error Output yes
PNP NO yes
RS-232 Interface yes

Adjustable parameters

Output Error Output
Push-pull
NPN
PNP
Circuit NC
NC/NO
NO
Other parameters Exposure time
Laser light
Switching hysteresis
Teach-in mode
Off-delay
On-delay

Downloads

Datasheet : Wenglor CP70QXVT80 Laser Distance Sensor High Precision
