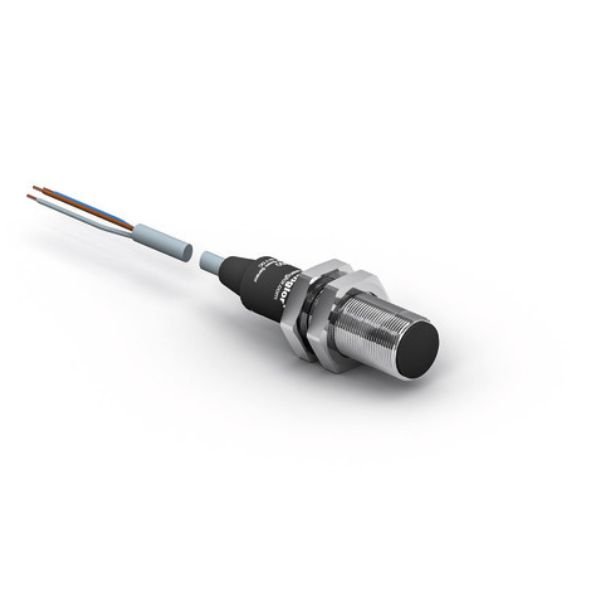

Wenglor EA250-P24 Through Beam Sensor

Wenglor EA250-P24 Through Beam Sensor these through-beam sensors work in combination with the LV250 controller. They can be freely positioned as desired. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments, detect the edges of objects and monitor passages in systems. The emitter and receiver are housed in separate housings according to the through-beam mode. The sensor switches as soon as an object interrupts the laser light, red light, or infrared light.

Features at a Glance

For connection to the LV250 controller
Functions reliably with severe contamination
No interactive influence

Electrical Data
Sensor Type Receiver
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Protection Class III

Features

For connection to LV250 controller
Functions reliably with severe contamination
No interactive influence

Applications

Specifications

Optical Data
Light Source	Infrared Light
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux
Opening Angle	8 °

Electrical Data
Sensor Type	Receiver
Temperature Drift	< 10 %
Temperature Range	-25 … 60 °C
Short Circuit and Overload Protection	yes
Reverse Polarity Protection	yes
Protection Class	III

Mechanical Data
Housing Material	CuZn, nickel-plated
Full Encapsulation	yes
Degree of Protection	IP67
Connection	Cable, 2-wire, 6 m

Output
For connection to LV250 control module	yes

Downloads

Datasheet : Wenglor EA250-P24 Through Beam Sensor
