Wenglor EW98PC3 Through Beam Sensor

Wenglor EW98PC3 Through Beam Sensor

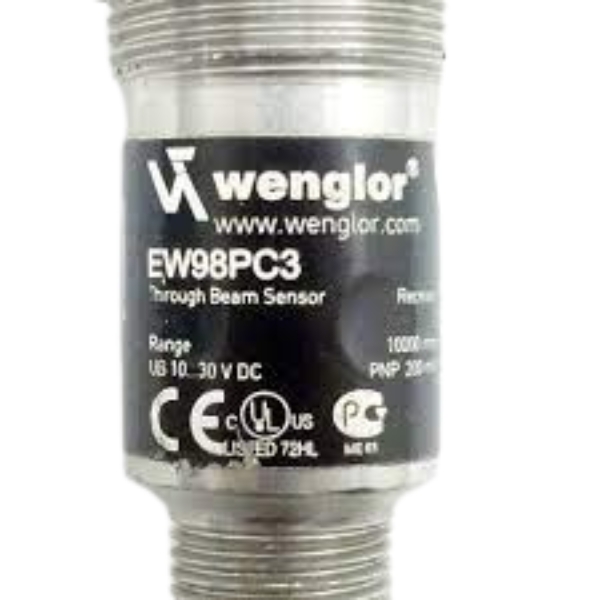

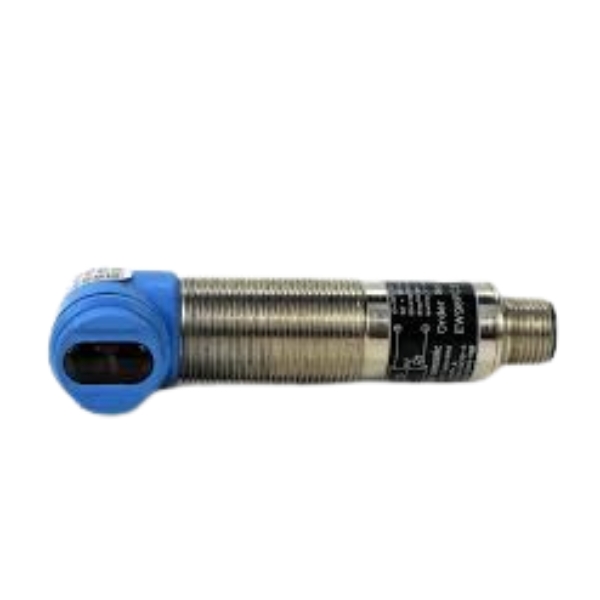

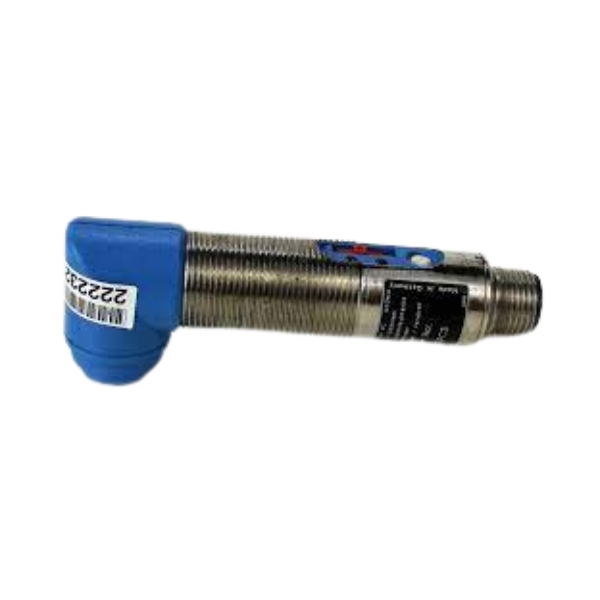

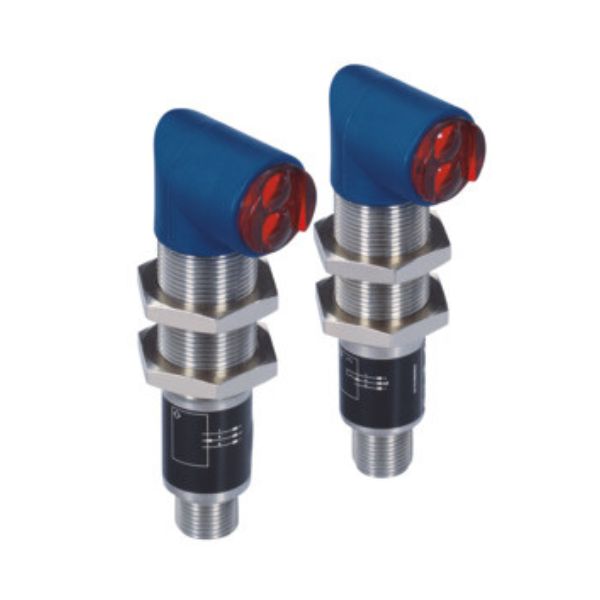

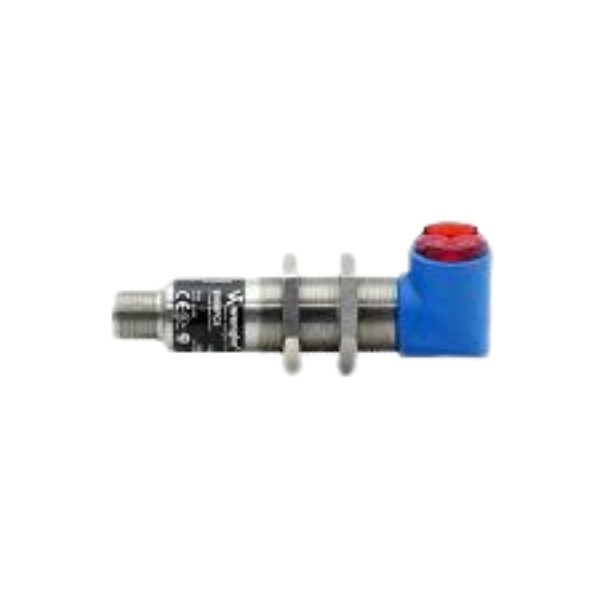

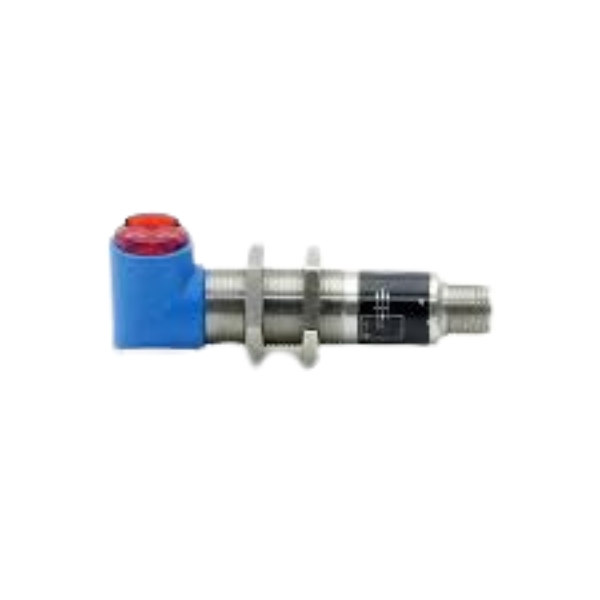

Wenglor EW98PC3 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Get a Quote

Wenglor EW98PC3 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Features at a Glance Wenglor EW98PC3 Through Beam Sensor

  • Special alignment optic

Electrical Data
Sensor Type Receiver
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 150 Hz
Response Time 3,300 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Protection Class III

Dimensions specified in mm (1 mm = 0.03937″)
1 = Alignment aid/function indicator2 = Receiver Diode
Complementary Products
PNP-NPN Converter BG2V1P-N-2M

Features

  • Special alignment optic

Applications

Overhang Monitoring in Pallet Warehouses Using Through-Beam Sensors

In automated pallet warehouses, pallets are transported and placed on several rack levels by forklift trucks. The lanes must be clear at all times, otherwise there is a risk of collisions. Through-beam sensors are installed at the outer ends of the high-bay racks on all levels to detect protruding pallets immediately. Even in the event of interference factors such as dust, dirt or ambient light, the light barriers with red light reliably switch over long distances.

Through-Beam Sensors

Through-beam sensors detect and count small parts, detect the edges of objects and monitor passages in systems. The emitter and receiver are housed in separate housings according to the through-beam mode. The sensor switches as soon as an object interrupts the laser light, red light or infrared light.

Specifications

Optical Data
Range 10,000 mm
Switching Hysteresis  < 15 %
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 6 °

Electrical Data
Sensor Type Receiver
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 150 Hz
Response Time 3,300 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Protection Class III

Mechanical Data
Setting Method Potentiometer
Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Output
PNP NO yes
