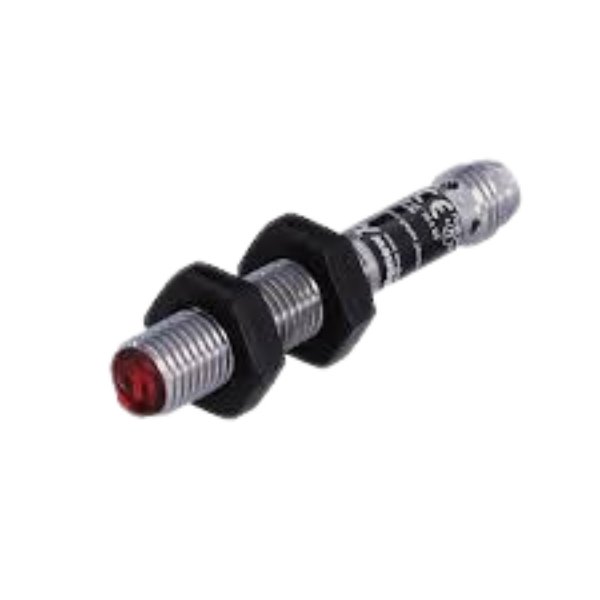

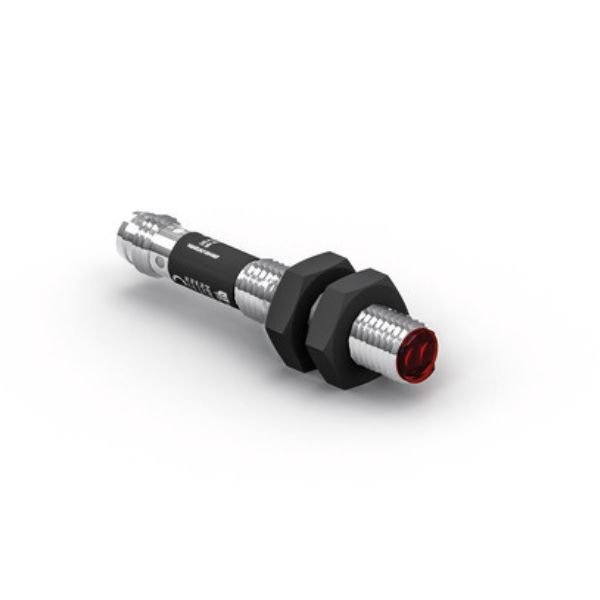

Wenglor HB03PBT7 Reflex Sensor Background Suppression

Product Note:

No product notes available.

Description

Wenglor HB03PBT7 Reflex Sensor Background Suppression

Wenglor HB03PBT7 Reflex Sensor Background Suppression these sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape, and surface characteristics of the object have practically no influence on sensor-switching performance. Reflex sensors with background suppression detect and measure objects contactless and detect them in front of any defined background. They work with red light, infrared light, blue light, or laser light. Thanks to the principle of angle measurement, the color, shape, and object surface have no influence on the switching behavior of the sensors.

Features at a Glance

  • Enclosed in M8 housing
  • Red light
  • Adjustable switching distance
  • Electronic background suppression

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 25 mA
Switching Frequency 600 Hz
Response Time 833 µs
Temperature Drift < 5 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 100 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Features

  • Enclosed in M8 housing
  • Red light
  • Adjustable switching distance
  • Electronic background suppression

Applications

06 = Teach Button

Specifications

Optical Data

Range30 mm
Setting Range10 … 30 mm
Switching Hysteresis < 10 %
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux
Light Spot Diameter2 mm

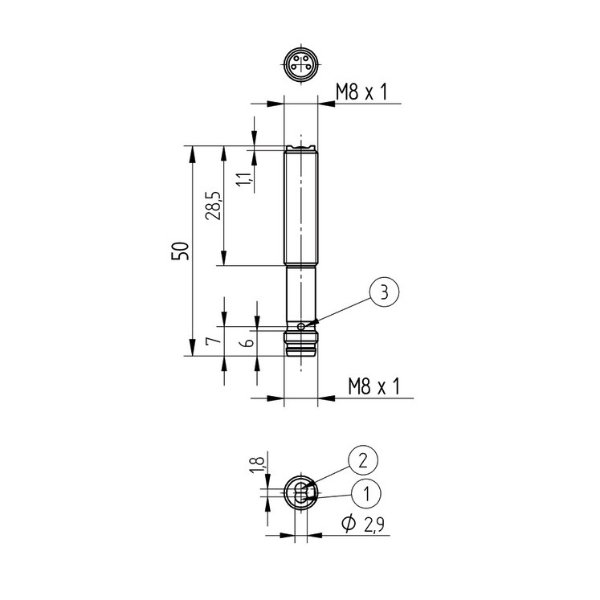

Mechanical Data

Setting MethodTeach-In
Housing MaterialStainless Steel
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM8 × 1; 4-pin

Output

PNP NOyes

Downloads

Datasheet : Wenglor HB03PBT7 Reflex Sensor with Background Suppression
