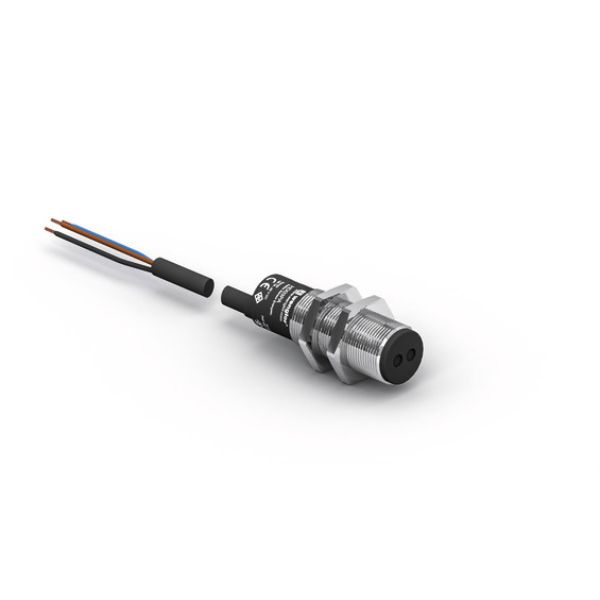

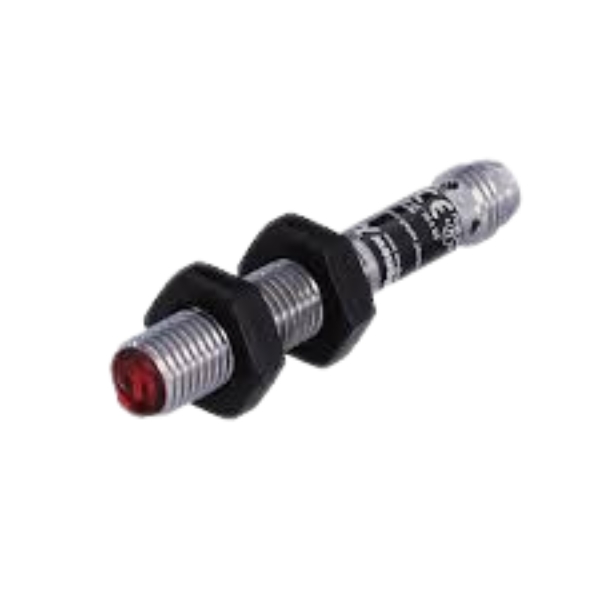

Wenglor HD03PA Reflex Sensor Energetic

Wenglor HD03PA Reflex Sensor Energetic to fine focusing optics the background is suppressed beyond 50 mm. Reflex sensors with background suppression detect and measure objects contactless and detect them in front of any defined background. They work with red light, infrared light, blue light, or laser light. Thanks to the principle of angle measurement, the color, shape, and object surface have no influence on the switching behavior of the sensors.

Wenglor HD03PA Reflex Sensor Energetic Features at a Glance

Low-cost
Quasi-background-suppression
Finely focused optics

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1,500 Hz
Response Time 330 µs
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Features

Low-cost
Quasi-background-suppression
Fine focused optics

Applications

30 = Switching Status/Contamination Warning
05 = Switching Distance Adjuster

Specifications

Optical Data
Range	30 mm
Switching Hysteresis	< 15 %
Light Source	Infrared Light
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux
Opening Angle	12 °

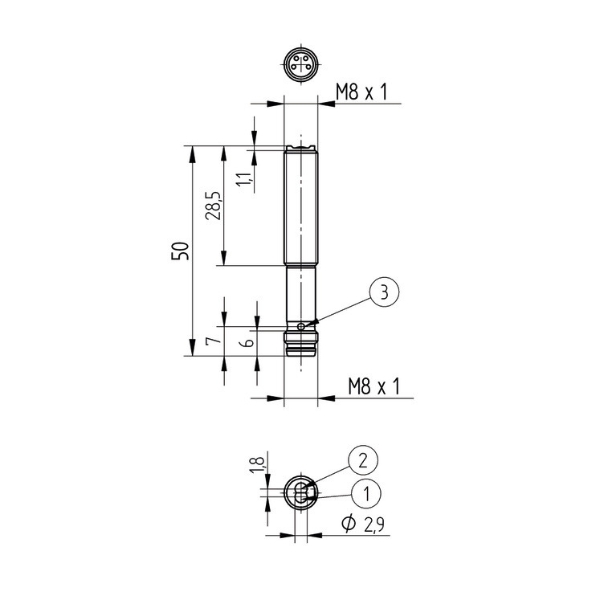

Mechanical Data
Housing Material	CuZn, nickel-plated
Full Encapsulation	yes
Degree of Protection	IP67
Connection	Cable, 4-wire, 2 m

Safety-relevant Data
MTTFd (EN ISO 13849-1)	2,337.8 a

Output
PNP NO/NC antivalent	yes

Adjustable parameters
Circuit	NC NC+NO NO

Downloads

Datasheet : Wenglor HD03PA Reflex Sensor Energetic
