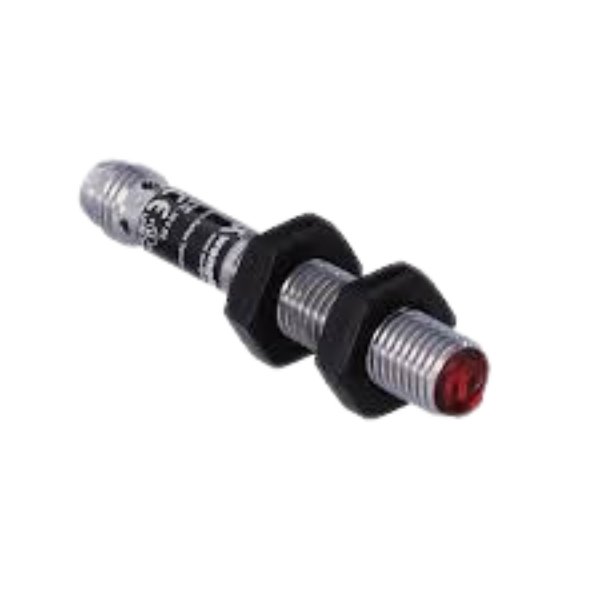

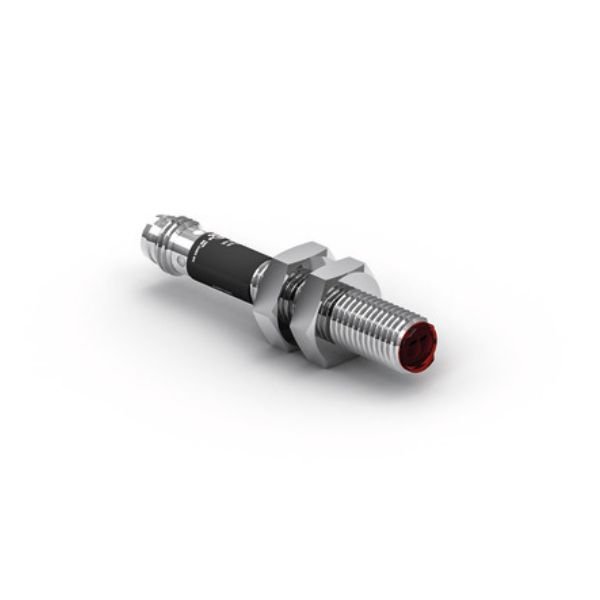

Wenglor LB66PC7 Retro Reflex Sensor Universal

Product Note:

No product notes available.

Description

Wenglor LB66PC7 Retro Reflex Sensor Universal

Wenglor LB66PC7 Retro Reflex Sensor Universal is a reflector that must be used in combination with these sensors and can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light. Reflex light barriers and retro-reflex sensors work with different light sources, whereby the emitter and receiver are located in one housing. When the light beam between the emitter and the defined background or reflector is interrupted, a switching signal is an output.

Features at a Glance

  • Glossy objects can be detected
  • Micro-design
  • Contamination warning
  • Integrated output

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 20 mA
Switching Frequency 1,800 Hz
Response Time 270 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 100 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Features

  • Glossy objects can be detected
  • Micro-design
  • Contamination warning
  • Integrated output

Applications

30 = Switching Status/Contamination Warning

Specifications

Optical Data

Range1,300 mm
Reference Reflector/Reflector FoilRQ100BA
Switching Hysteresis < 15 %
Light SourceRed Light
Polarization Filteryes
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux
Two-Lens Opticyes

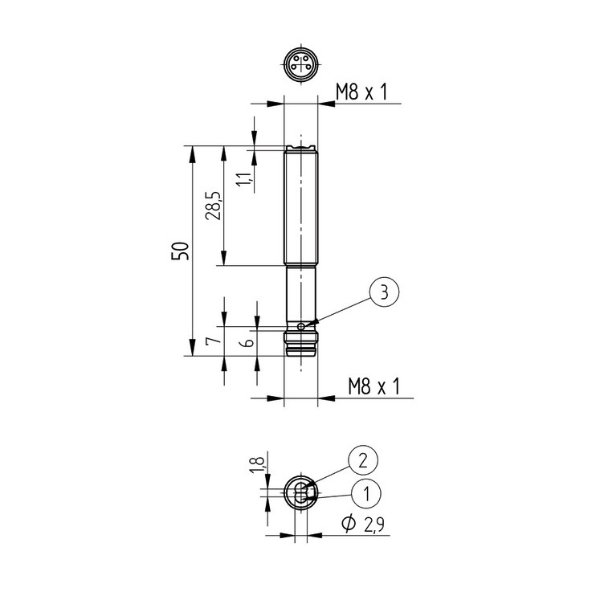

Mechanical Data

Housing MaterialStainless Steel
Degree of ProtectionIP67
ConnectionM8 × 1; 4-pin

Output

PNP NOyes

Adjustable parameters

CircuitNC
NC/NO
NO

Downloads

Datasheet : Wenglor LB66PC7 Retro Reflex Sensor Universal
