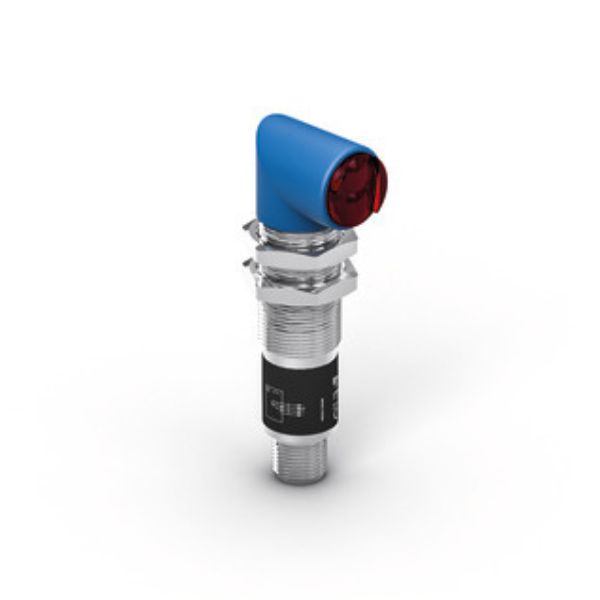

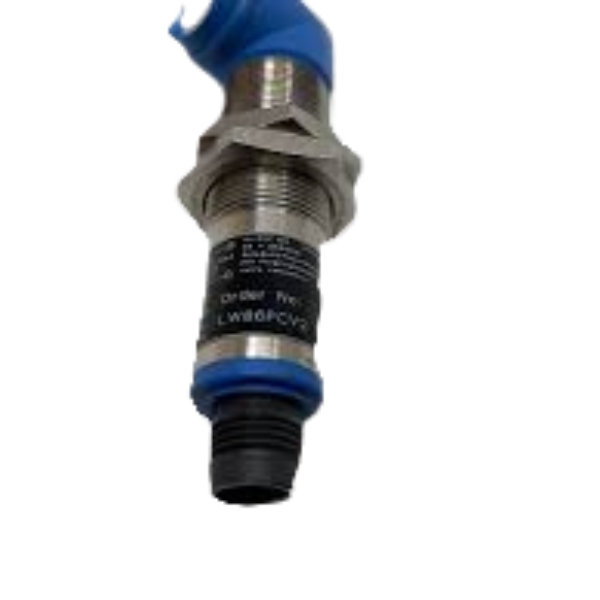

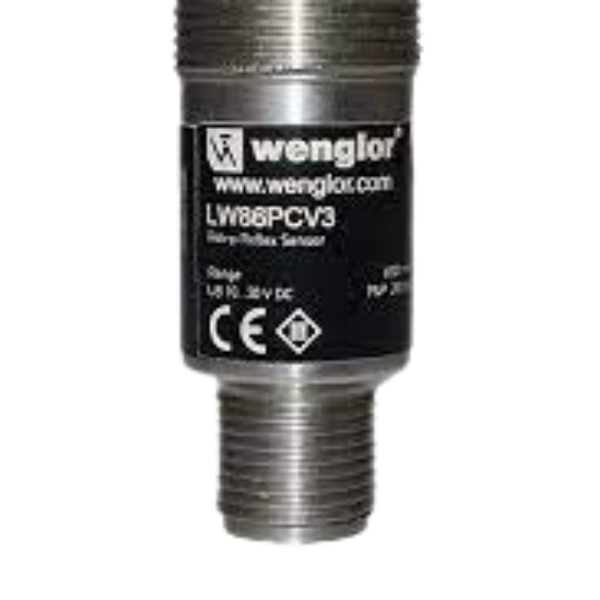

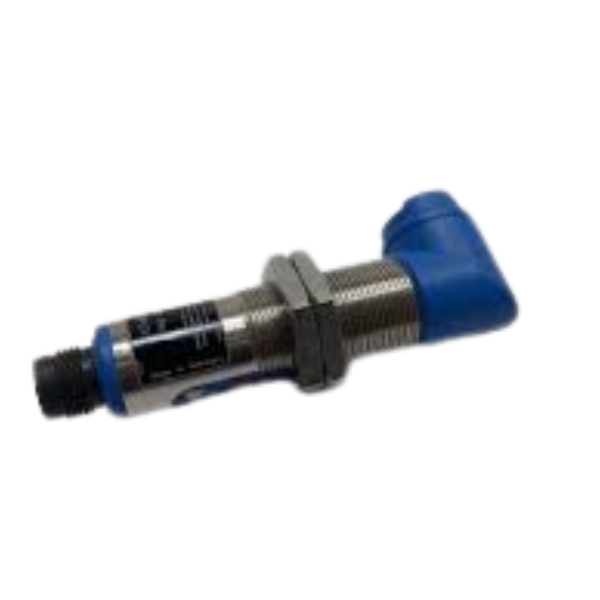

Wenglor LW86PCV3 Retro Reflex Sensor Universal

Wenglor LW86PCV3 Retro Reflex Sensor Universal

Wenglor LW86PCV3 Retro Reflex Sensor Universal is a reflector that must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.

Get a Quote

Wenglor LW86PCV3 Retro Reflex Sensor Universal is a reflector that must be used in combination with these sensors. They can be installed in all kinds of industrial environments to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.

Features at a Glance

  • Stainless steel housing
  • Switching distance adjuster

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1 kHz
Response Time 500 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Dimensions specified in mm (1 mm = 0.03937″)
1 = Transmitter Diode2 = Receiver Diode
Complementary Products
Reflector, Reflector Foil
PNP-NPN Converter BG2V1P-N-2M

Features

  • Stainless steel housing
  • Switching distance adjuster

Applications

Presence Check of Reusable Containers on Roller Conveyors with Retro-Reflex Sensors

In breweries, reusable containers (KEG) must be transported between different work steps such as washing, filling or palletizing on roller conveyors. To prevent jamming and allow the continuous flow of material, the containers must be recorded and counted at several locations. Retro-reflex sensors installed on the side of the roller conveyors reliably detect beverage containers despite reflective, matt, light or black surfaces.

Universal Retro-Reflex Sensors

Universal retro-reflex sensors are suitable for the detection of glossy, chrome-plated or reflective surfaces thanks to the polarization filter. They work with red light or laser light. Objects are detected by interrupting the light beam between the sensor and the reflector.

Specifications

Optical Data
Range 6,000 mm
Reference Reflector/Reflector Foil RQ100BA
Switching Hysteresis  < 15 %
Light Source Red Light
Polarization Filter yes
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 5 °
Two-Lens Optic yes

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1 kHz
Response Time 500 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Mechanical Data
Setting Method Potentiometer
Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Safety-relevant Data
MTTFd (EN ISO 13849-1) 2,447.91

Output
Contamination Output yes
PNP NO yes

Adjustable parameters
Circuit NC
NC/NO
NO

Downloads

Datasheet : Wenglor LW86PCV3 Retro Reflex Sensor Universal
