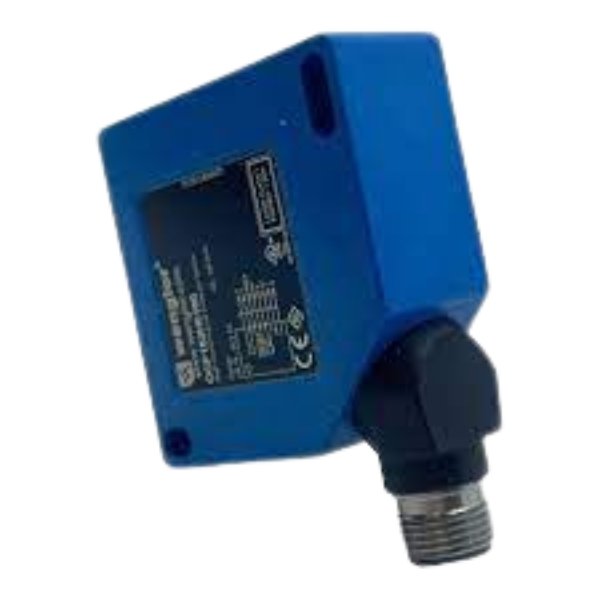

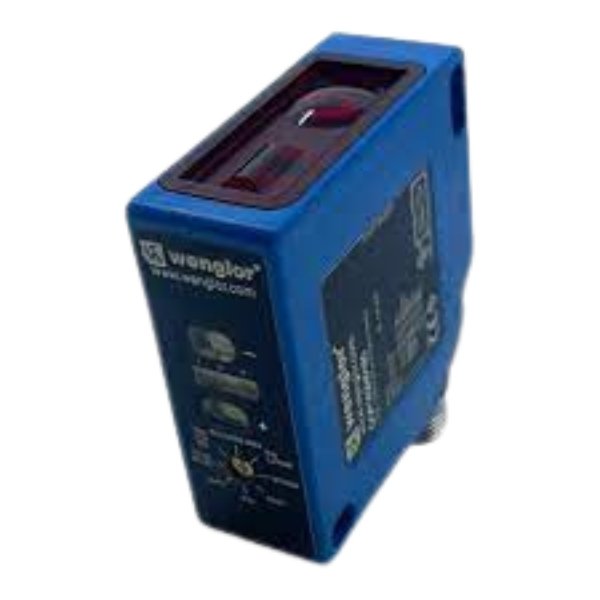

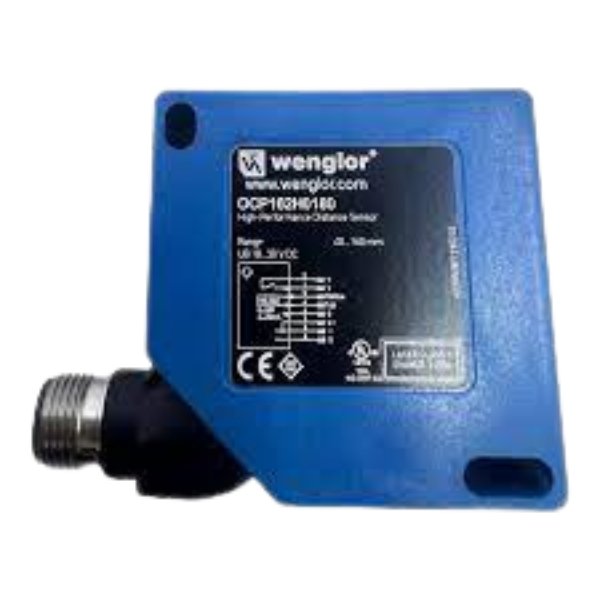

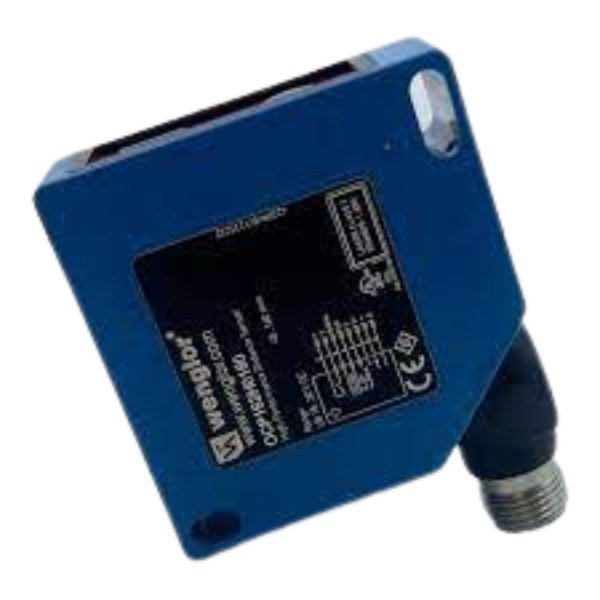

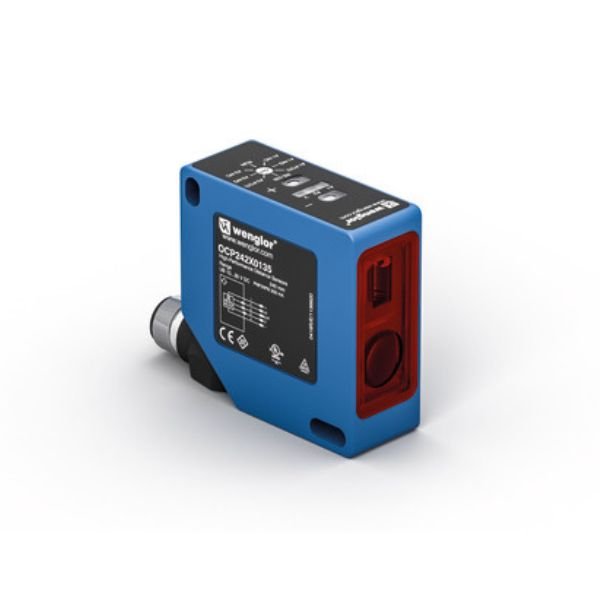

Wenglor OCP162H0180 Sensor High Precision

Wenglor OCP162H0180 Sensor High Precision works with a high-resolution CMOS line and DSP technology and determines distance using angular measurement. As a result, material, color, and brightness-related measurement differences are virtually eliminated. The integrated analog output can be configured for voltage 0…10 V (10…0 V) or current 4…20 mA (20…4 mA).

Features at a Glance

High resolution: 20 µm (resolution mode)
Linearity: 0,1 % (resolution mode)
Zoom function
Measured value independent of material, color, and brightness

Electrical Data
Supply Voltage 18 … 30 V DC
Current Consumption (Ub = 24 V) < 80 mA
Measuring Rate 1,000 /s
Measuring Rate (Resolution-Mode) 500 /s
Response Time 1,000 µs
Response Time (Resolution Mode) < 2,000 µs
Temperature Drift < 10 µm/K
Temperature Range -25 … 50 °C
Analog Output 0…10 V
Load Current Voltage Output < 1 mA
Current Output Load Resistance < 500 Ohm
Interface RS-232
Baud Rate 38,400 Bd
Protection Class III
FDA Accession Number 1120717-000

Features

High resolution: 20 µm (resolution-mode)
Linearity: 0,1 % (resolution-mode)
Zoom function
Measured value independent of material, color and brightness

Applications

Production Monitoring of Parquet Tongues and Grooves via High-Precision Laser Distance Sensor with Analog Output

When manufacturing parquet flooring with tongues, it is important to ensure that the tongue is securely inserted into the groove in the parquet once pressed in. This is precisely monitored via high-precision laser distance sensors. Ideal for the wood industry: The sensors also work reliably in the event of flying chips and soiling. Since different parquet heights are produced on a single system, the respective distance to the background is detected via an analog output on the sensor. The sensors measure all relevant heights with their analog output: the distance to the conveyor belt, the tongue and groove and the parquet.

High-Precision Laser Distance Sensors

High-precision laser distance sensors work according to the principle of angle measurement, whereby color, shape and object surface do not influence the measurement. Depending on the setting, they can be operated at very high speed or resolution. The measuring range can be selected individually within the sensor’s working range.

Specifications

Optical Data
Working Range	40 … 160 mm
Measuring Range	120 mm
Resolution	20 µm
Resolution (Speed-Mode)	30 µm
Linearity	0.1 %
Linearity (Speed-Mode)	0.2 %
Linearity Deviation	120 µm
Light Source	Laser (red)
Wavelength	660 nm
Service Life (T = +25 °C)	100,000 h
Laser Class (EN 60825-1)	1
Max. Ambient Light	10,000 Lux
Light Spot Diameter	see Table 1

Mechanical Data
Setting Method	Teach-In
Housing Material	Plastic
Degree of Protection	IP67
Connection	M12 × 1; 8-pin

Safety-relevant Data
MTTFd (EN ISO 13849-1)	713.97 a

Output
Error Output	yes
Analog Output	yes
RS-232 Interface	yes

Adjustable parameters
Analog output	0…10 V 4…20 mA
Other parameters	Scale analog output Filter Speed mode Laser light Resolution mode
