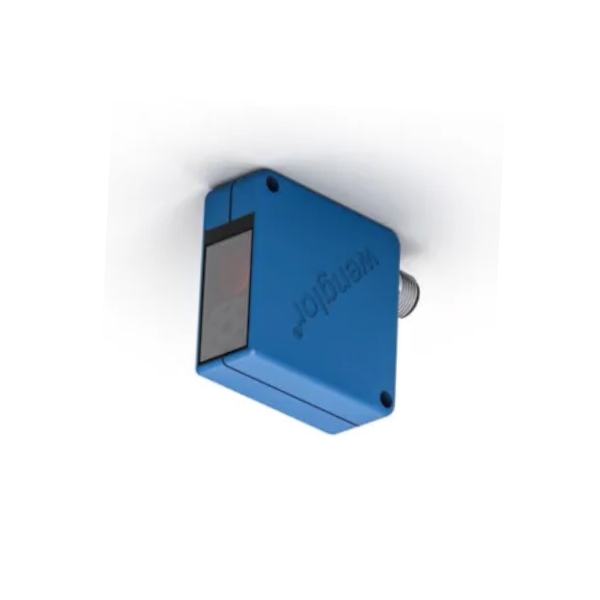

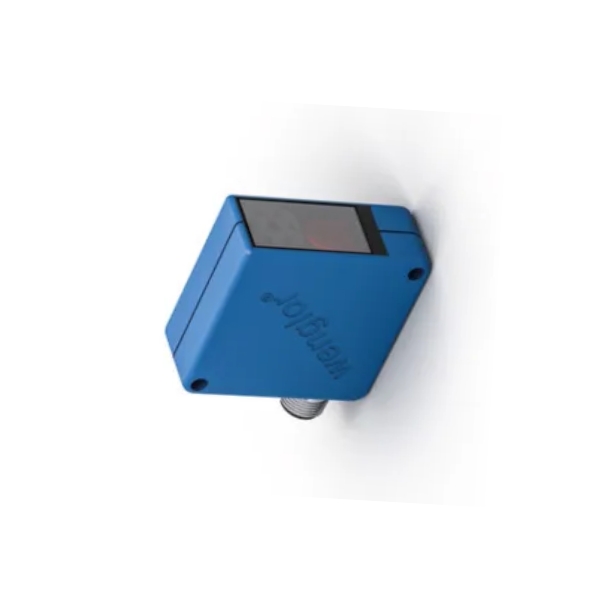

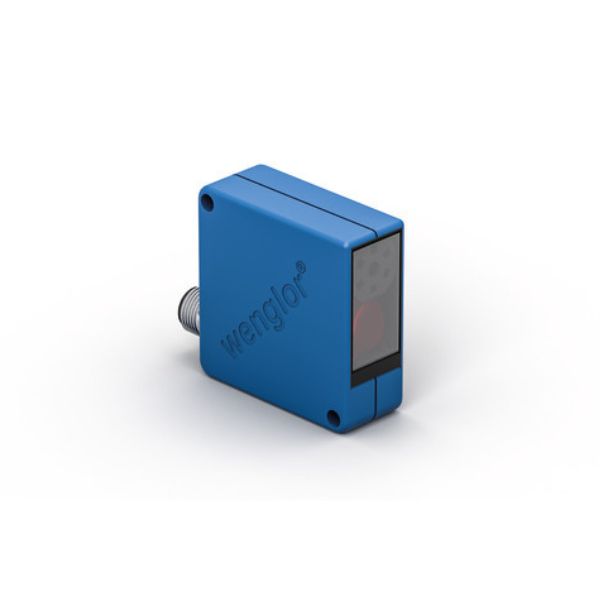

Wenglor OHP102B0003 Sensor High Precision

Wenglor OHP102B0003 Sensor High Precision these sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape, and surface characteristics of the object have practically no influence on sensor-switching performance.

Wenglor OHP102B0003 Sensor High Precision these sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape, and surface characteristics of the object have practically no influence on sensor-switching performance.

Features at a Glance

  • Smallest recognizable distance difference: 400 µm
  • Spot diameter: 0,6 mm
  • Smallest recognizable distance difference: 400 µm
  • Spot diameter: 0,6 mm
  • Optical Data
  • Range: 100 mm
  • Adjustable Range: 60…100 mm
  • Switching Hysteresis: < 400 µm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = +25 °C) : 100000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10000 Lux
  • Light Spot Diameter: < 0,6 mm
  • Focus Distance: 110 mm
  • Electrical Data
  • Supply Voltage: 10…30 V DC
  • Current Consumption (Ub = 24 V) : < 30 mA
  • Switching Frequency: 800 Hz
  • Response Time: 650 µs
  • Temperature Drift : < 15 µm/K
  • Temperature Range : -25…60 °C
  • Switching Output Voltage Drop: < 2,5 V
  • PNP Switching Output/Switching Current: 200 mA
  • PNP Contamination Output/Switching Current: 50 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • FDA Accession Number: 1120737-000
  • Mechanical Data
  • Setting Method: Potentiometer
  • Housing Material: Plastic
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection : M12 × 1; 4-pin
  • Contamination Output: yes
  • PNP NO: yes

Features

  • Smallest recognizable distance difference: 400 µm
  • Spot diameter: 0,6 mm

Applications

B_BED_P_02.eps
01 = Switching Status Indicator
32 = Contamination Warning/Error Warning
05 = Switching Distance Adjuster

Specifications

Optical Data

Range 100 mm
Setting Range 60 … 100 mm
Switching Hysteresis  < 400 µm
Light Source Laser (red)
Wavelength 660 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 1
Max. Ambient Light 10,000 Lux
Light Spot Diameter  < 0.6 mm
Focus Distance 110 mm

Electrical Data

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 800 Hz
Response Time 650 µs
Temperature Drift < 15 µm/K
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
PNP Contamination Output/Switching Current 50 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
FDA Accession Number 1120737-000

Mechanical Data

Setting Method Potentiometer
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Output

Contamination Output yes
PNP NO yes

Downloads

Datasheet : Wenglor OHP102B0003 Laser Distance Sensor High Precision
