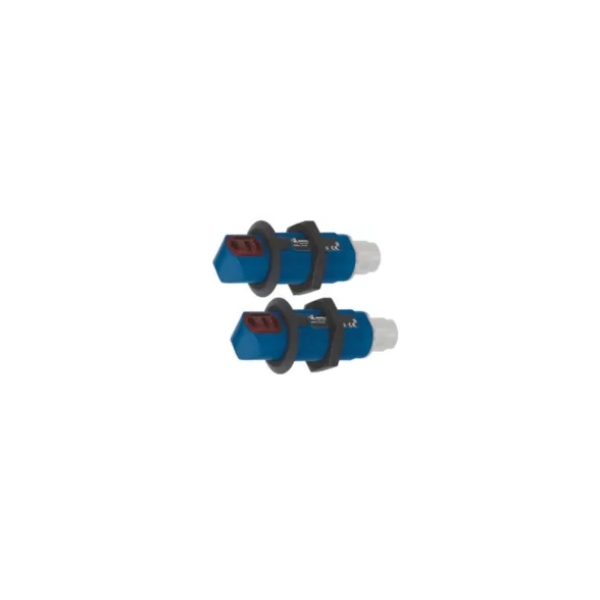

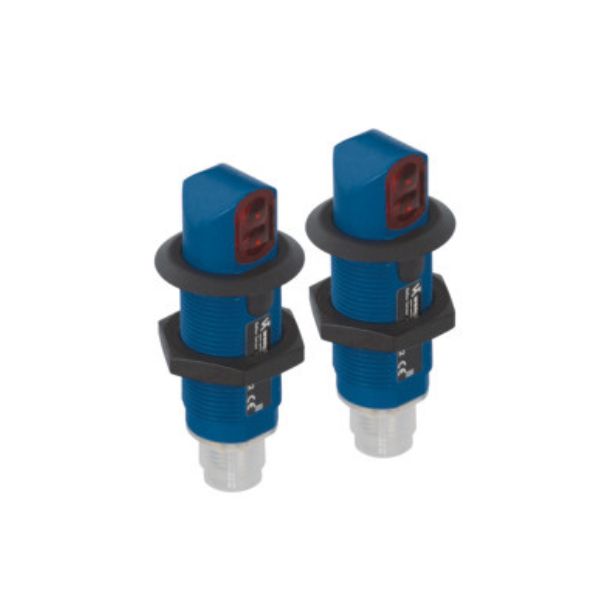

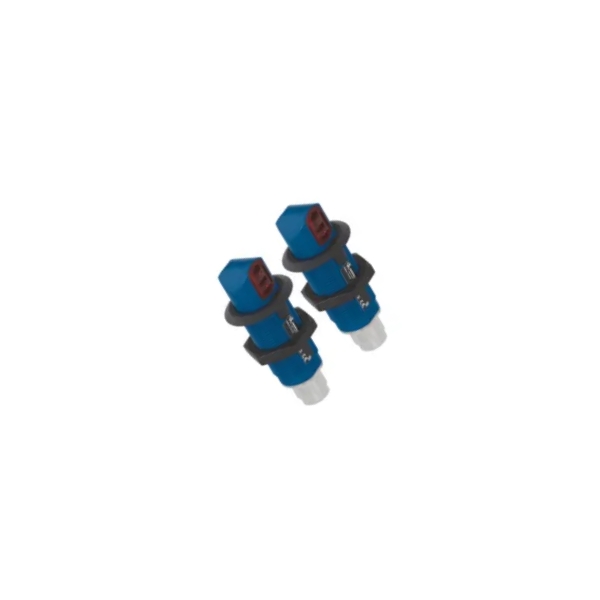

Wenglor OSWK803Z0002 Through Beam Sensor

Wenglor OSWK803Z0002 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Wenglor OSWK803Z0002 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Features at a Glance

  • Clever inclusive mounting technology
  • Test input
  • Simple installation
  • Large working range
  • Minimal installation space
  • Clever inclusive mounting technology
  • Large working range
  • Minimal installation space
  • Simple installation
  • Test input
  • Optical Data
  • Range: 8000 mm
  • Light Source: Red Light
  • Service Life (T = +25 °C) : 100000 h
  • Opening Angle: 5 °
  • Electrical Data
  • Sensor Type: Emitter
  • Supply Voltage: 10…30 V DC
  • Current Consumption (Ub = 24 V) : < 15 mA
  • Temperature Drift: < 10 %
  • Temperature Range : -25…60 °C
  • Reverse Polarity Protection: yes
  • Test input: yes
  • Protection Class: III
  • Mechanical Data
  • Housing Material: Plastic
  • Degree of Protection: IP67
  • Connection : M12 × 1; 4-pin
  • General Data
  • Scope of delivery: Mounting Console

Features

  • Clever inclusive mounting technology
  • Test input
  • Simple installation
  • Large working range
  • Minimal installation space

Applications

B_BED_DK_2.eps
04 = Function Indicator
68 = supply voltage indicator

Specifications

Optical Data

Range 8,000 mm
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Opening Angle 5 °

Electrical Data

Sensor Type Emitter
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 15 mA
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Reverse Polarity Protection yes
Test input yes
Protection Class III

Mechanical Data

Housing Material Plastic
Degree of Protection IP67
Connection M12 × 1; 4-pin

General Data

Scope of delivery Mounting Console

Downloads

Datasheet : Wenglor OSWK803Z0002 Through Beam Sensor
