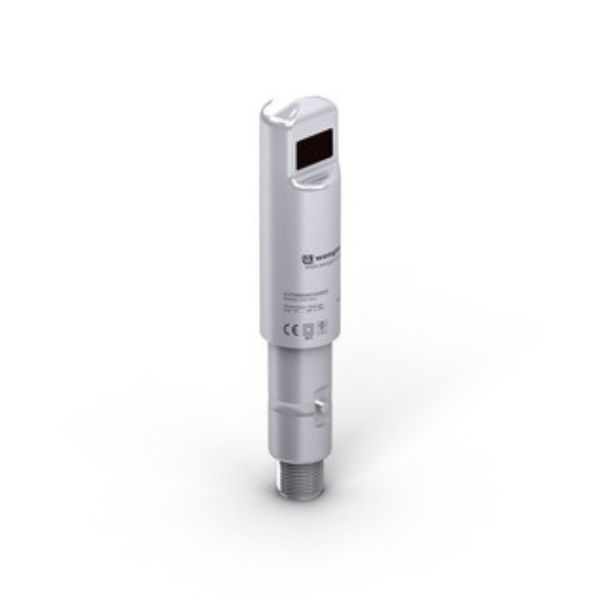

Wenglor OTII802C0303 Reflex Sensor Energetic

Wenglor OTII802C0303 Reflex Sensor Energetic is the hygiene series from wenglor. The innovative design of InoxSens sensors allows contamination and cleaning agents to flow off by themselves. A variety of components form a complete system that integrates seamlessly into the machine.

Wenglor OTII802C0303 Reflex Sensor Energetic is the hygiene series from wenglor. The innovative design of InoxSens sensors allows contamination and cleaning agents to flow off by themselves. A variety of components form a complete system that integrates seamlessly into the machine. The laser welded stainless steel housing made of V4A (1.4404/316L) is corrosion-free and resistant to cleaning agents. Gap-free mounting with InoxLock and the captive optics further contribute to these sensors’ optimal suitability for cleaning-heavy environments.

Features at a Glance

  • The hygienic design makes it easy to clean
  • Made with food-safe materials that are FDA approved
  • Waterproof (IP68/IP69K)
  • External teach-in, RS-232 interface

Electrical Data

  • Supply Voltage: 10 … 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 1,600 Hz
  • Response Time: 313 µs
  • On-/Off-Delay (RS-232): 0 … 5 s
  • Temperature Drift: < 5 %
  • Temperature Range: -25 … 60 °C
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: NT, MT
  • Protection Class: III

Features

  • Hygienic design makes it easy to clean
  • Made with food safe materials that are FDA approved
  • Waterproof (IP68/IP69K)
  • External teach-in, RS-232 interface

Applications

  • Adapterbox A232
  • PNP-NPN Converter BG2V1P-N-2M
  • Software

Specifications

Optical Data

Range 800 mm
Switching Hysteresis  < 15 %
Light Source Infrared Light
Wavelength 880 nm
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux

Electrical Data

Supply Voltage 10 … 30 V
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1,600 Hz
Response Time 313 µs
On-/Off-Delay (RS-232) 0 … 5 s
Temperature Drift < 5 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Lockable yes
Teach Mode NT, MT
Protection Class III

Mechanical Data

Setting Method Teach-In
Housing Material Stainless steel 316L
Degree of Protection IP68/IP69K
Connection M12 × 1; 4-pin
Optic Cover PMMA (FDA)
Ecolab yes

Output

PNP NO yes
RS-232 with Adapterbox yes

Adjustable parameters

Circuit NC
NO
NC/NO

Table 1

Detection Range 100 mm 500 mm 800 mm
Light Spot Diameter 19 mm 40 mm 55 mm

Downloads

Datasheet : Wenglor OTII802C0303 Reflex Sensor Energetic
