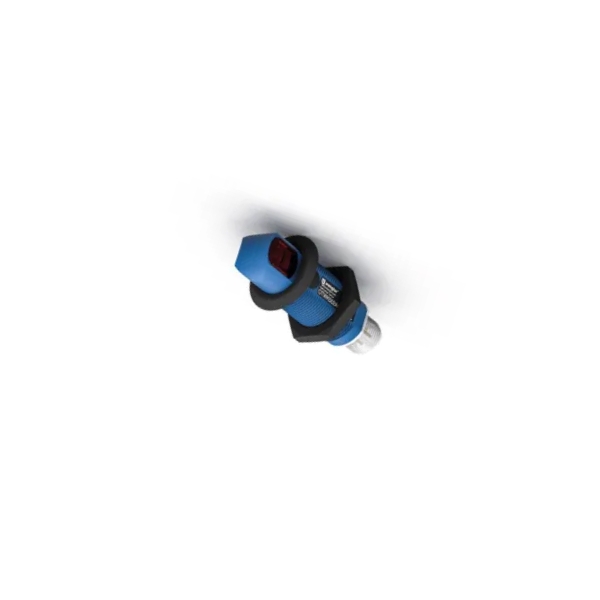

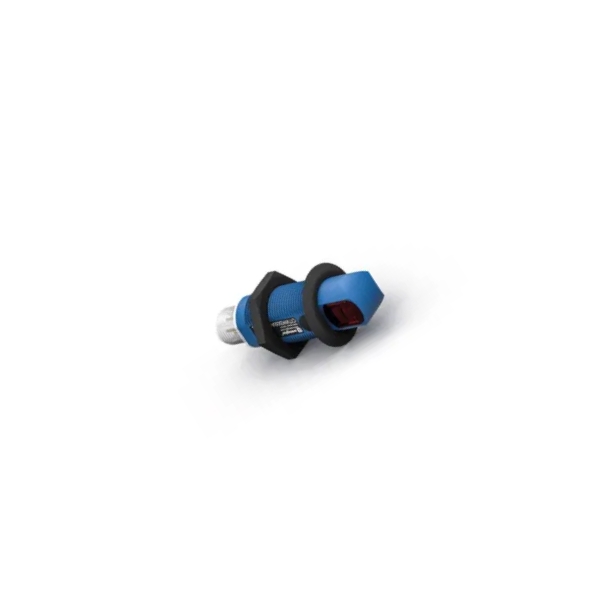

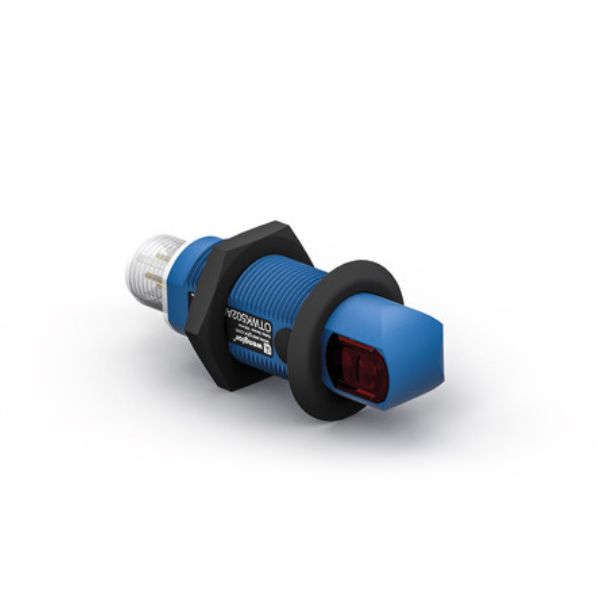

Wenglor OTWK502A0002 Reflex Sensor Energetic

Product Note:

No product notes available.

Description

Wenglor OTWK502A0002 Reflex Sensor Energetic

Wenglor OTWK502A0002 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.

Features at a Glance

  • Adjustable detection range
  • Clever inclusive mounting technology
  • Simple installation
  • Large detection range
  • Minimal installation space

Electrical Data

  • Supply Voltage: 10 … 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 500 Hz
  • Response Time: 1 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -25 … 60 °C
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

Features

  • Adjustable detection range
  • Clever inclusive mounting technology
  • Simple installation
  • Large detection range
  • Minimal installation space

Applications

B_BED_DK_1.eps
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning
68 = supply voltage indicator

Specifications

Optical Data

Range500 mm
Switching Hysteresis < 15 %
Light SourceInfrared Light
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux
Opening Angle5 °

Mechanical Data

Setting MethodPotentiometer
Housing MaterialPlastic
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Safety-relevant Data

MTTFd (EN ISO 13849-1)2,200.73 a

General Data

Scope of deliveryMounting Console

Output

PNP NO/NC antivalentyes

Adjustable parameters

CircuitNC
NC+NO
NO

Table 1

Detection Range100 mm300 mm500 mm
Light Spot Diameter11 mm26 mm41 mm

Downloads

Datasheet : Wenglor OTWK502A0002 Reflex Sensor Energetic
