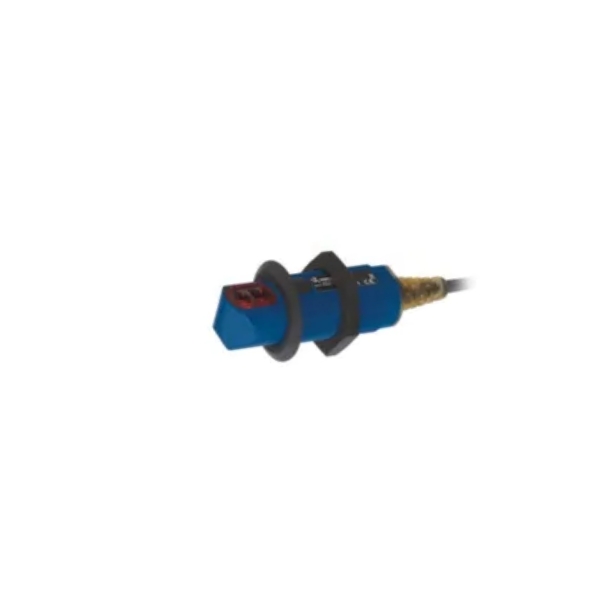

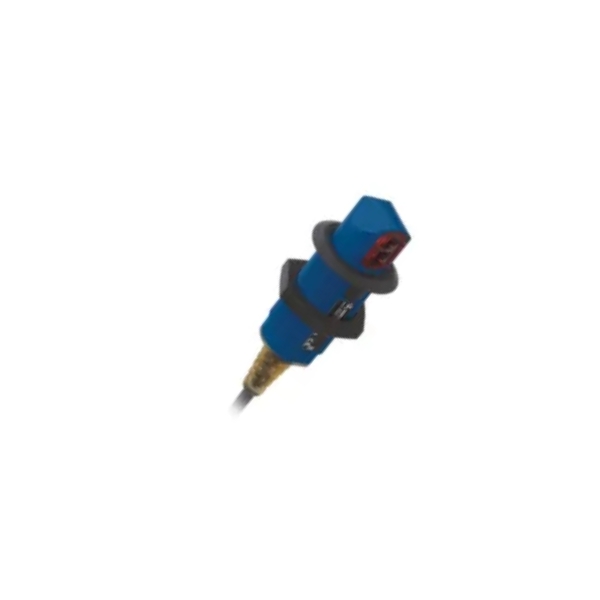

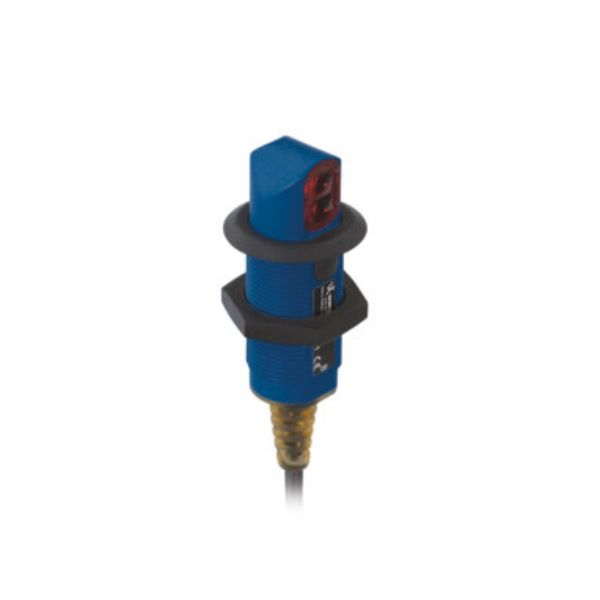

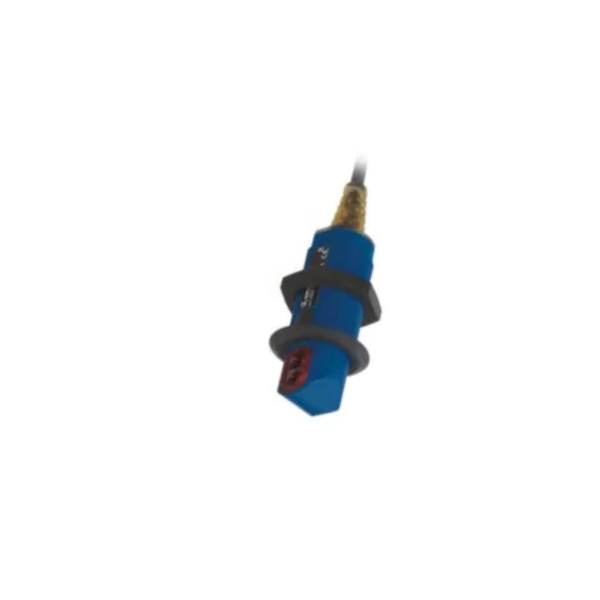

Wenglor OTWK502A0091 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
Features at a Glance
- Adjustable detection range
- Clever inclusive mounting technology
- Simple installation
- Large detection range
- Minimal installation space
Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 500 Hz
Response Time 1 ms
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
