Description

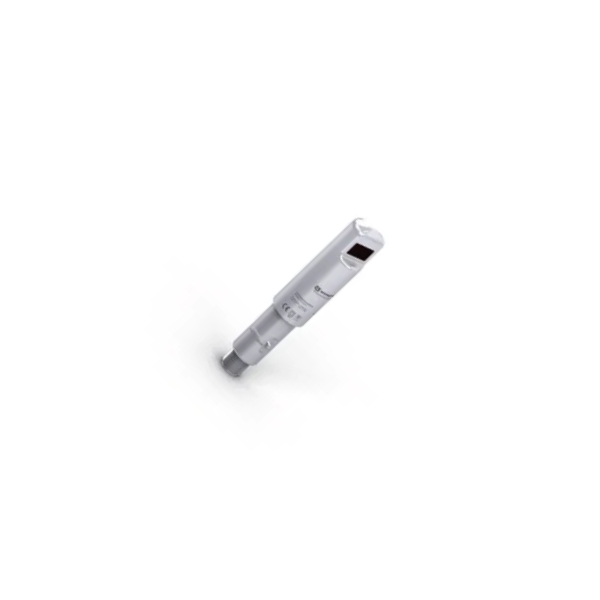

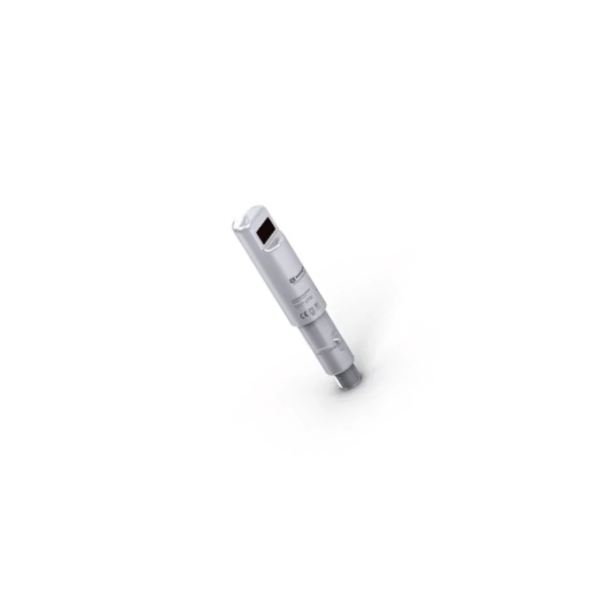

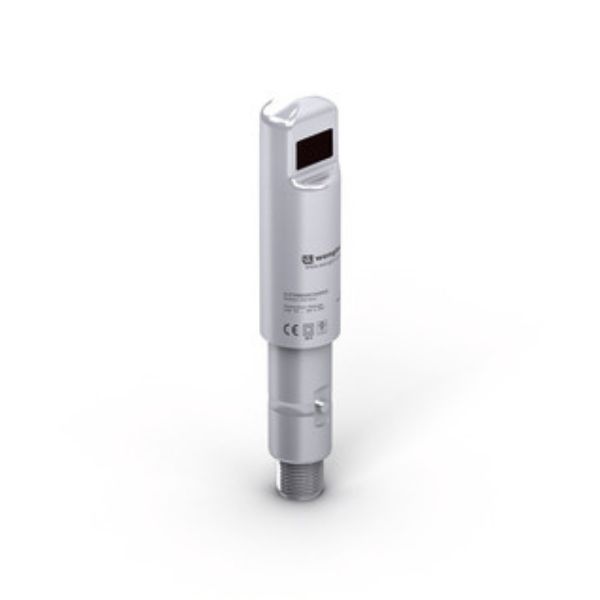

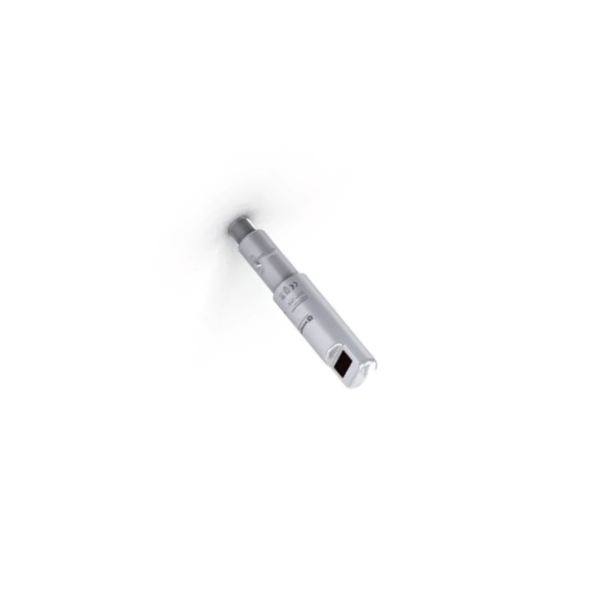

Wenglor P1GE001 Through Beam Sensor
Wenglor P1GE001 Through Beam Sensor is the hygiene series from Wenglor. The innovative design of InoxSens sensors allows contamination and cleaning agents to flow off by themselves. A variety of components form a complete system that integrates seamlessly into the machine. The laser-welded stainless steel housing made of V4A (1.4404/316L) is corrosion-free and resistant to cleaning agents. Gap-free mounting with InoxLock and the captive optics further contribute to these sensors’ optimal suitability for cleaning-heavy environments. The configuration of the InoxSens sensors is made through external teach-in.
Features at a Glance
- The hygienic design makes it easy to clean
- Made with food-safe materials that are FDA approved
- Waterproof (IP68/IP69K)
- External teach-in
Electrical Data
- Sensor Type: Receiver
- Supply Voltage: 10 … 30 V DC
- Current Consumption (Ub = 24 V): < 40 mA
- Switching Frequency: 500 Hz
- Response Time: 1 ms
- Temperature Drift: < 10 %
- Temperature Range: -25 … 60 °C
- Switching Output Voltage Drop: < 2.5 V
- PNP Switching Output/Switching Current: 200 mA
- Residual Current Switching Output: < 50 µA
