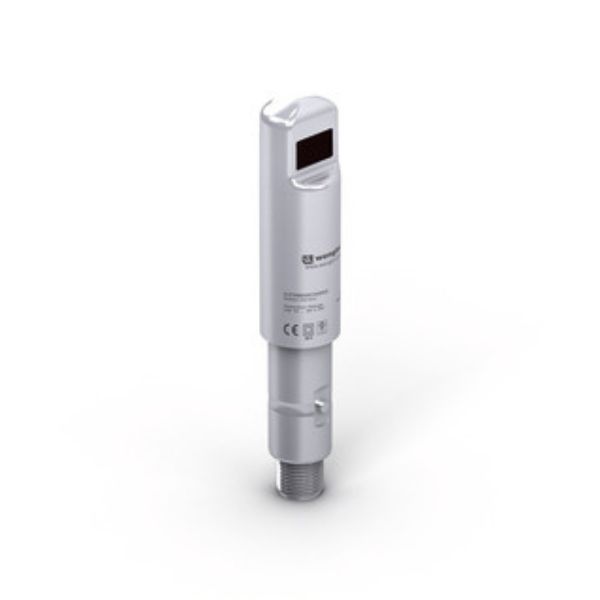

Wenglor P1GE002 Through Beam Sensor

Product Note:

No product notes available.

Description

Wenglor P1GE002 Through Beam Sensor

Wenglor P1GE002 Through Beam Sensor is the hygiene series from Wenglor. The innovative design of InoxSens sensors allows contamination and cleaning agents to flow off by themselves. A variety of components form a complete system that integrates seamlessly into the machine. The laser-welded stainless steel housing made of V4A (1.4404/316L) is corrosion-free and resistant to cleaning agents. Gap-free mounting with InoxLock and the captive optics further contribute to these sensors’ optimal suitability for cleaning-heavy environments. The configuration of the InoxSens sensors is made through external teach-in.

Features at a Glance

  • The hygienic design makes it easy to clean
  • Made with food-safe materials that are FDA approved
  • Waterproof (IP68/IP69K)
  • External teach-in

Electrical Data

  • Sensor Type: Emitter
  • Supply Voltage: 10 … 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -25 … 60 °C
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: NT, MT, XT

Features

  • Hygienic design makes it easy to clean
  • Made with food safe materials that are FDA approved
  • Waterproof (IP68/IP69K)
  • External teach-in

Applications

Dimensions specified in mm (1 mm = 0.03937″)
1 = Emitter
2 = no function

Specifications

Optical Data

Range4,000 mm
Light SourceRed Light
Service Life (T = +25 °C)100,000 h
Opening Angle3 °

Electrical Data

Sensor TypeEmitter
Supply Voltage10 … 30 V DC
Current Consumption (Ub = 24 V)< 40 mA
Temperature Drift< 10 %
Temperature Range-25 … 60 °C
Reverse Polarity Protectionyes
Overload Protectionyes
Teach ModeNT, MT, XT
Test inputyes
Protection ClassIII

Mechanical Data

Setting MethodTeach-In
Housing MaterialStainless steel 316L
Degree of ProtectionIP68/IP69K
ConnectionM12 × 1; 4-pin
Optic CoverPMMA (FDA)
Ecolabyes

Downloads

Datasheet : Wenglor P1GE002 Through Beam Sensor
