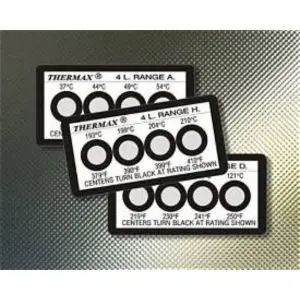

Thermax 4 Level Strips Temperature Label

Product Note:

No product notes available.

Categories: Sensor, Temperature Sensor Tags: Sensor, Temperature Sensor, Thermax

Description

Thermax 4 Level Strips Temperature Label

Thermax 4 Level Strips Temperature Label range of Irreversible temperature indicators available over a range of -17°C to +1270°C (+1°F to +2318°F) which are used in numerous applications such as Food, Medical, Automotive, Aerospace, and Engineering

Thermax 4 Level Strips Temperature Label Information

Temperature range

29 to 290°C with over 75 specific temperatures available as standard.

Colour change

THERMAX Strips containing temperatures only up to 210°C – Silver/White to Black
THERMAX Strips containing temperatures of 212°C and above – Orange to Black

Film

THERMAX Strips containing temperatures only up to 160°C – Polyester
THERMAX Strips containing temperatures between 165 and 210°C – Polyethylene Naphthalate
THERMAX Strips containing temperatures of 212°C and above – Polyimide

Adhesive

THERMAX Strips containing temperatures only up to 160°C – Modified acrylic adhesive with polyester carrier
THERMAX Strips containing temperatures of 165°C and above – Pure acrylic adhesive with tissue carrier

Available

Strips can be supplied in packs or rolls – Convenient and simple to apply
Custom designs – Offering a bespoke solution
Custom sizes, shapes, and materials – Designed to suit a wide range of applications

Specifications

Parameter	Specification
Manufacturer / Brand	TMC Hallcrest / Thermax
Model Series	Thermax 4 Level Strips
Focus Keyword Target	Thermax 4 Level Strips Temperature Label
Indicator Response Type	Irreversible (Permanent Phase Change)
Number of Levels	4 Temperature Levels per Strip
Accuracy Tolerance	$pm 1°C$ (up to $100°C$ ) / $pm 1.5°C$ (above $100°C$ )
Available Temp Ranges	Range A ( $37°C text{to} 54°C$ ), Range B ( $60°C text{to} 77°C$ ), Range C ( $82°C text{to} 99°C$ ), Range D ( $104°C text{to} 121°C$ ), Range E ( $127°C text{to} 143°C$ ), Range F ( $149°C text{to} 166°C$ ), Range G ( $171°C text{to} 191°C$ ), Range H ( $199°C text{to} 224°C$ ), Range I ( $232°C text{to} 260°C$ )
Indicator Color Shift	Silver / White $rightarrow$ Permanent Black
Dimensions	Approx. $23 text{mm} times 45 text{mm}$ ( $0.91" times 1.77"$ )
Base Material	Polyester Film with Heat-Resistant Acrylic Adhesive
Shelf Life	2 Years (stored in cool, dark, dry conditions below $20°C$ )

Features

Irreversible Color Change: Indicators turn permanently black upon reaching designated temperatures, capturing thermal peaks even after equipment cools.
4-Level Sequential Tracking: Four temperature points per label allow accurate tracking of baseline, warning, and critical thermal thresholds.
Self-Adhesive & Non-Intrusive: Strong pressure-sensitive adhesive attaches quickly to smooth, clean equipment surfaces without wiring or power sources.
Immune to EMI & Magnetic Fields: Operates reliably in high-voltage environments, transformers, and switchgear where electronic sensors face electrical interference.
Oil, Water, & Steam Resistant: Protective laminate barrier shields indicator elements against industrial splatters, moisture, and dust contamination.

Applications

Electrical Switchgear & Circuit Breakers: Spotting loose terminal connections, busbar overheating, and overloaded transformer housings.
Rotary Bearings & Motors: Monitoring friction heating in industrial motor casings, gearboxes, pump bearings, and conveyor rollers.
Manufacturing & Curing Processes: Verifying surface heat distribution during plastic molding, lamination, powder coating, and heat-sealing.
Electronics & PCB Testing: Tracking maximum thermal stress on power transistors, heat sinks, and component boards during load tests.
