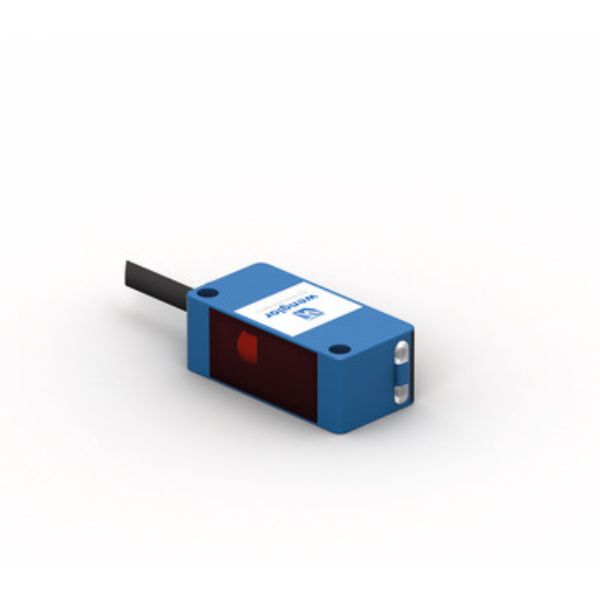

Wenglor P1KE001 Through Beam Sensor

The through-beam sensor works with red light as well as a transmitter and a receiver.

The through-beam sensor works with red light as well as a transmitter and a receiver. Thanks to their high light intensity, the sensor provides a high degree of operational reliability even with interferences like steam, fog or dust. The transmitter can be deactivated using test input in order to test the functionality of the through-beam sensor. The IO-Link interface can be used to configure the sensor (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.

Features

  • Condition monitoring
  • High light intensity with large switching reserve
  • IO-Link 1.1
  • Test input for high operational reliability

Applications

B_BED_1K_01.eps
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning
68 = supply voltage indicator

Specifications

Optical Data

Range 6,000 mm
Smallest Recognizable Part see Table 1
Switching Hysteresis  < 10 %
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux

Electrical Data

Sensor Type Receiver
Supply Voltage 10 … 30 V DC
Supply Voltage with IO-Link 18 … 30 V DC
Current Consumption (Ub = 24 V) < 20 mA
Switching Frequency 1,000 Hz
Switching Frequency (interference-free mode) 500 Hz
Response Time 0.5 ms
Response time (interference-free mode) 1 ms
Temperature Drift < 10 %
Temperature Range -40 … 60 °C
Switching Output Voltage Drop < 2 V
Switching Output/Switching Current 100 mA
Residual Current Switching Output < 50 µA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Lockable yes
Interface IO-Link V1.1
Protection Class III

Mechanical Data

Setting Method Potentiometer
Housing Material Plastic
Degree of Protection IP67/IP68
Connection Cable, 3-wire, 2 m
Optic Cover PMMA

Safety-relevant Data

MTTFd (EN ISO 13849-1) 2,111.25 a

Output

PNP NO yes
IO-Link yes

Adjustable parameters

Output Push-pull
NPN
PNP
Circuit NC
NC/NO
NO
Other parameters Off-delay
On-delay
Mode of operation
Hysteresis
Switching point

Table 1

Distance transmitter/receiver 1 m 2 m 6 m
Smallest Recognizable Part 4 mm 1 mm 1 mm
