Wenglor P1NS101 Through Beam Sensor

Wenglor P1NS101 Through Beam Sensor

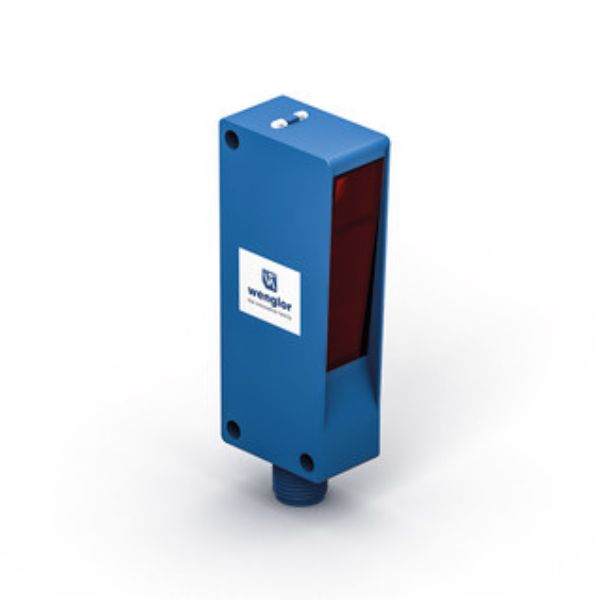

Wenglor P1NS101 Through Beam Sensor the through-beam sensor works with red light as well as a transmitter and a receiver. The transmitter can be deactivated using test input in order to test the functionality of the through-beam sensor.

Get a Quote

Wenglor P1NS101 Through Beam Sensor the through-beam sensor works with red light as well as a transmitter and a receiver. The transmitter can be deactivated using test input in order to test the functionality of the through-beam sensor. The IO-Link interface can be used to configure the sensor (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.

Features at a Glance

  • Condition monitoring
  • The high light intensity with a large switching reserve
  • IO-Link 1.1
  • Test input for high operational reliability

Optical Data

  • Range: 20,000 mm
  • Light Source: Red Light
  • Service Life (T = +25 °C):  100,000 h
  • Opening Angle: 4 °

Electrical Data

  • Sensor Type: Emitter
  • Supply Voltage: 10 … 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -40 … 60 °C

Mechanical Data

  • Housing Material: Plastic
  • Degree of Protection: IP67/IP68
  • Connection: M12 × 1; 4-pin
  • Optic Cover: PMMA

Features

  • Condition monitoring
  • High light intensity with large switching reserve
  • IO-Link 1.1
  • Test input for high operational reliability

Applications

Presence Check of Pallets in the Refrigerated High-Bay Warehouse with Through-Beam Sensors

In refrigerated logistics centers, the presence of pallets before and after each transfer position must be known in order to secure material flow between the conveyor line and the high-bay warehouse. Through-beam sensors that function according to the transmitter-receiver principle are attached to the conveyor line for this purpose. While solutions with reflectors do not offer process reliability due to contamination, the through-beam sensors, which can be configured via IO-Link, switch reliably. They do not require a reflector and have a higher power reserve thanks to the through-beam principle – even at temperatures down to –40 °C.

Overhang Monitoring in Pallet Warehouses Using Through-Beam Sensors

In automated pallet warehouses, pallets are transported and placed on several rack levels by forklift trucks. The lanes must be clear at all times, otherwise there is a risk of collisions. Through-beam sensors are installed at the outer ends of the high-bay racks on all levels to detect protruding pallets immediately. Even in the event of interference factors such as dust, dirt or ambient light, the light barriers with red light reliably switch over long distances.

Presence Check of Logs on a Gang Saw with Through-Beam Sensors

In large sawmills, logs are transported and processed fully automatically. For this purpose, e.g. after sawing has been completed, the presence of the logs must be detected. Because irregular bark, ambient dust or sawdust must not influence the detection, through-beam sensors with high light intensity are used here. Ambient light from the environment can be hidden during this process. If the sensor switches after the sawing process, this signal activates the downstream conveyor belt for removal.

Through-Beam Sensors

Through-beam sensors detect and count small parts, detect the edges of objects and monitor passages in systems. The emitter and receiver are housed in separate housings according to the through-beam mode. The sensor switches as soon as an object interrupts the laser light, red light or infrared light.

Specifications

Optical Data
Range 20,000 mm
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Opening Angle 4 °
Light Spot Diameter see Table 1

Electrical Data
Sensor Type Emitter
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Temperature Drift < 10 %
Temperature Range -40 … 60 °C
Reverse Polarity Protection yes
Test input yes
Protection Class III

Mechanical Data
Housing Material Plastic
Degree of Protection IP67/IP68
Connection M12 × 1; 4-pin
Optic Cover PMMA

Safety-relevant Data
MTTFd (EN ISO 13849-1) 4,534.36 a

Adjustable parameters
Other parameters Emitted light

Table 1
Distance transmitter/receiver 1 m 5 m 20 m
Light Spot Diameter 80 mm 200 mm 800 mm

Downloads

Datasheet : Wenglor P1NS101 Through Beam Sensor
