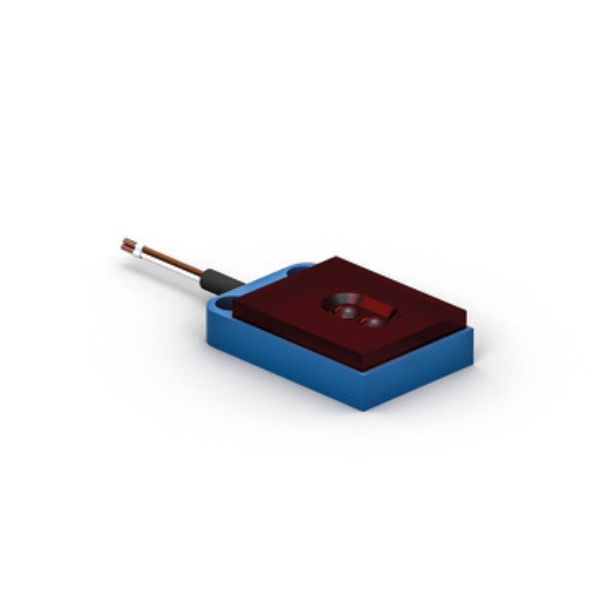

Wenglor S1FL66 Through Beam Sensor

These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments.

These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Features

  • Rear panel mounting
  • Test input

Applications

B_BEM_S1_E1FLxx_01.tif
Dimensions specified in mm (1 mm = 0.03937″)
1 = Emitter / ReceiverScrew M2 = 0,3 Nm

Specifications

Optical Data

Range 1,000 mm
Light Source Infrared Light
Service Life (T = +25 °C) 100,000 h
Opening Angle 25 °

Electrical Data

Sensor Type Emitter
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Reverse Polarity Protection yes
Test input PNP
Protection Class III

Mechanical Data

Housing Material Plastic
Degree of Protection IP67
Connection Cable, 3-wire, 2 m

Downloads

Datasheet : Wenglor S1FL66 Through Beam Sensor
