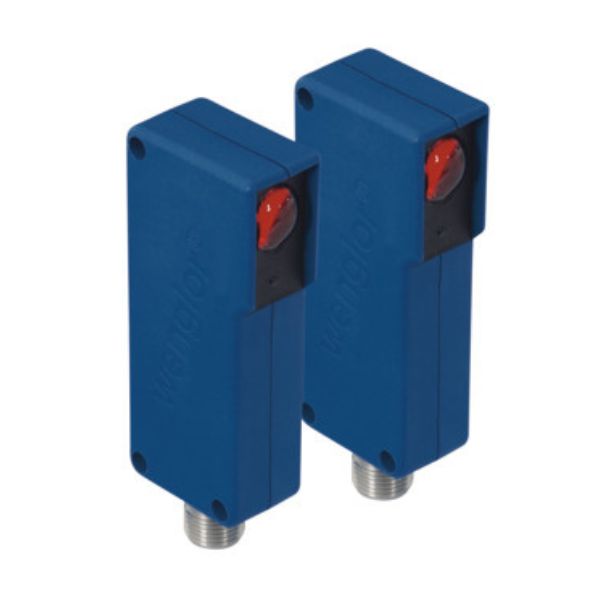

Wenglor SN6003 Through Beam Sensor

These through-beam sensors are best suited for use in industrial environments.

These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Features

  • Glass lenses
  • Test input
  • Range: 60 m

Applications

04 = Function Indicator

Specifications

Optical Data

Range 60,000 mm
Light Source Red Light
Service Life (T = +25 °C) 100,000 h
Opening Angle 4 °

Electrical Data

Sensor Type Emitter
Supply Voltage 15 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Temperature Drift < 10 %
Temperature Range -30 … 55 °C
Reverse Polarity Protection yes
Protection Class III

Mechanical Data

Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Downloads

Datasheet : Wenglor SN6003 Through Beam Sensor
