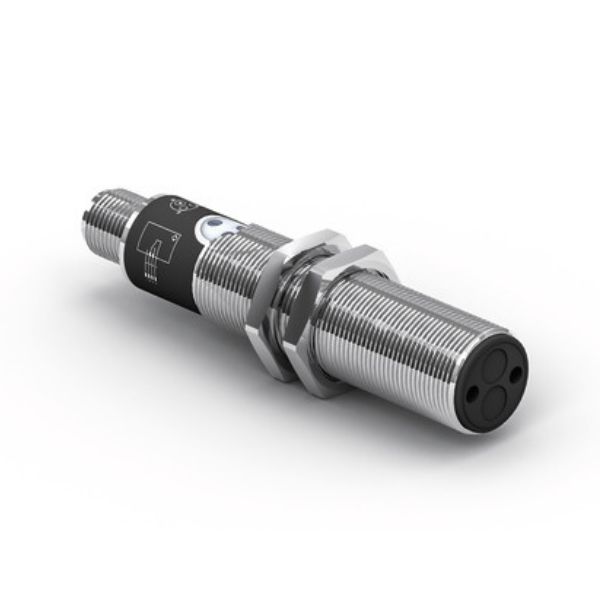

Wenglor TC55PA3 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range.
Wenglor TC55PA3 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
Optical Data |
|
|---|---|
| Range | 500 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 12 ° |
Electrical Data |
|
|---|---|
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 2 kHz |
| Response Time | 250 µs |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data |
|
|---|---|
| Setting Method | Potentiometer |
| Housing Material | Stainless Steel |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
Output |
|
|---|---|
| PNP NO/NC antivalent | yes |
Adjustable parameters |
|
|---|---|
| Circuit | NC NC+NO NO |
Datasheet : Wenglor TC55PA3 Reflex Sensor Energetic
