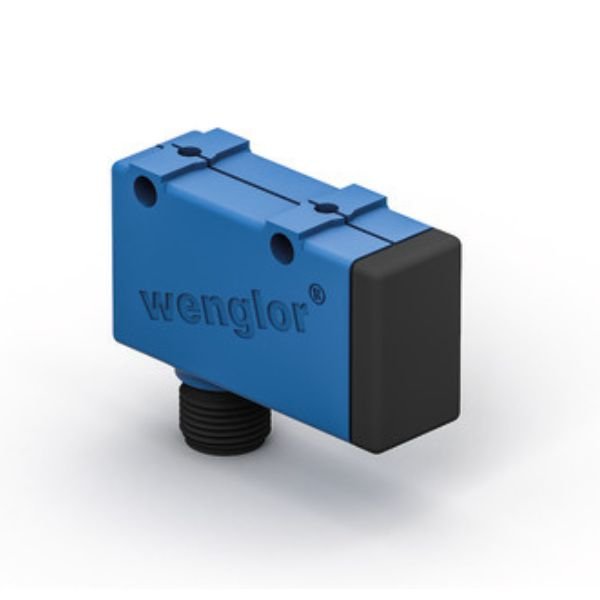

Wenglor TM22PA2 Reflex Sensor Energetic

Wenglor TM22PA2 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing.

Wenglor TM22PA2 Reflex Sensor Energetic

Wenglor TM22PA2 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.

Optical Data Wenglor TM22PA2 :

  • Range 200 mm
  • Switching Hysteresis  < 15 %
  • Light Source Infrared Light
  • Service Life (T = +25 °C) 100,000 h
  • Max. Ambient Light 10,000 Lux
  • Opening Angle 12 °

Electrical Data Wenglor TM22PA2 :

  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 40 mA
  • Switching Frequency 1,500 Hz
  • Response Time 330 µs
  • Temperature Drift < 10 %
  • Temperature Range -25 … 60 °C
  • Switching Output Voltage Drop < 2.5 V
  • PNP Switching Output/Switching Current 200 mA
  • Residual Current Switching Output < 50 µA
  • Short Circuit Protection yes
  • Reverse Polarity Protection yes
  • Overload Protection yes
  • Protection Class III

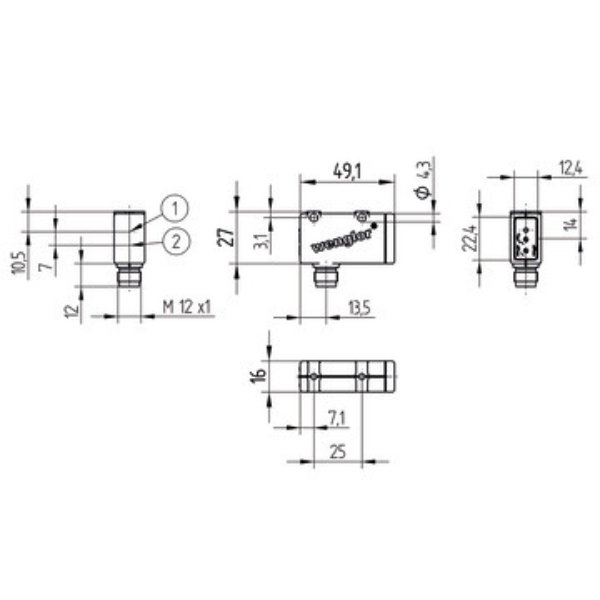

Mechanical Data Wenglor TM22PA2 :

  • Setting Method Potentiometer
  • Housing Material Plastic
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin

Output Wenglor TM22PA2 :

  • PNP NC, PNP NO yes

Adjustable parameters Wenglor TM22PA2 :

  • Circuit NC
  • NC+NO
  • NO

Features

  • Compact housing
  • Adjustable detection range

Applications

Detection of Palms in Disinfectant Dispensers with Reflex Sensors

Disinfection stations for hands are provided in public areas such as shops, schools, train stations, airports, football stadiums, gyms and many more to meet hygiene standards. The automated disinfectant dispensers have one inlet for each hand. Compact reflex sensors are installed in narrow areas for contactless detection of the hands. The disinfection cycle starts as soon as the sensor has detected that both hands are present. This hygiene measure can combat the spread of germs quickly, effectively and fully automatically.

Energetic Reflex Sensors

Reflex sensors check objects for presence, check stack heights or perform counting tasks. They are used when objects need to be detected without a defined background. For this purpose, they use red light or infrared light according to the energy principle.

Specifications

Optical Data

Range 200 mm
Switching Hysteresis  < 15 %
Light Source Infrared Light
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 12 °

Electrical Data

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1,500 Hz
Response Time 330 µs
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Mechanical Data

Setting Method Potentiometer
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Output

PNP NO/NC antivalent yes

Adjustable parameters

Circuit NC
NC+NO
NO

Downloads

Datasheet : Wenglor TM22PA2 Reflex Sensor Energetic
