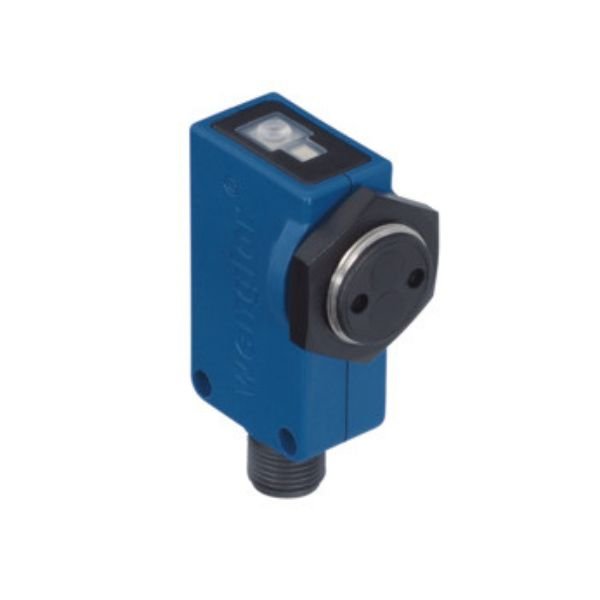

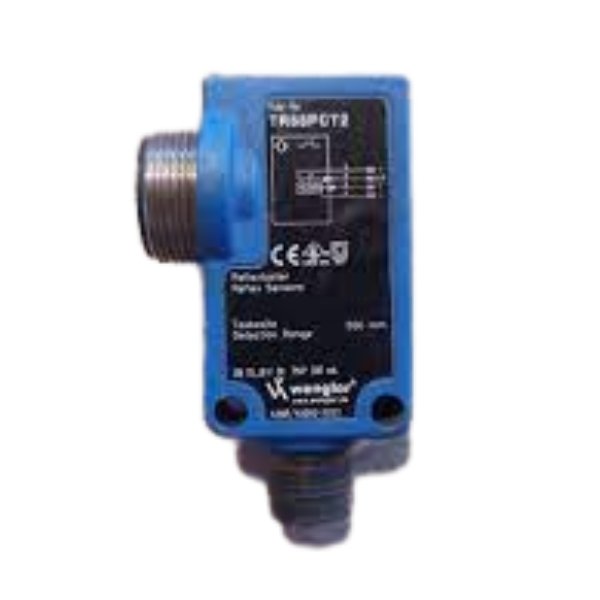

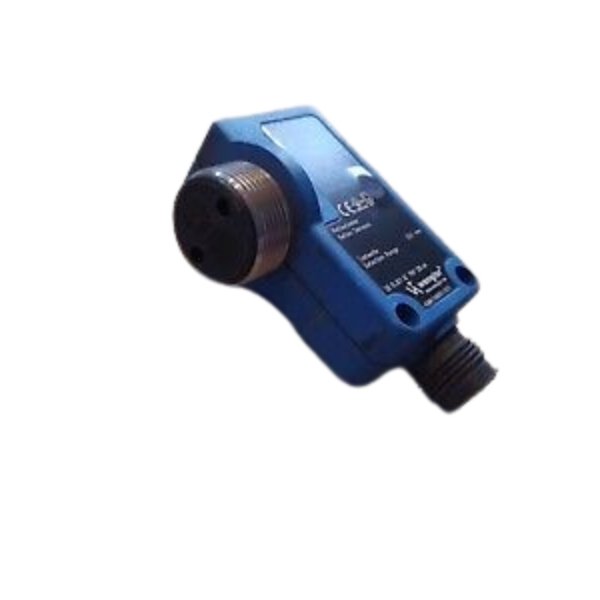

Wenglor TR55PCT2 Reflex Sensor Energetic

Wenglor TR55PCT2 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing.

Wenglor TR55PCT2 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances. The M-18 threaded fixation allows for mechanical protection and easy installation. Time delay can be activated via the RS-232 interface.

Optical Data Wenglor TR55PCT2 :

  • Range 500 mm
  • Switching Hysteresis  < 15 %
  • Light Source Infrared Light
  • Wavelength 880 nm
  • Service Life (T = +25 °C) 100,000 h
  • Max. Ambient Light 10,000 Lux
  • Opening Angle 12 °

Electrical Data Wenglor TR55PCT2 :

  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 40 mA
  • Switching Frequency 1 kHz
  • Response Time 500 µs
  • On-/Off-Delay (RS-232) 0 … 5 s
  • Temperature Drift < 10 %
  • Temperature Range -25 … 60 °C
  • Switching Output Voltage Drop < 2.5 V
  • PNP Switching Output/Switching Current 200 mA
  • Residual Current Switching Output < 50 µA
  • Short Circuit Protection yes
  • Reverse Polarity Protection yes
  • Overload Protection yes
  • Lockable yes
  • Teach Mode NT, MT
  • Protection Class III

Mechanical Data Wenglor TR55PCT2 :

  • Setting Method Teach-In
  • Housing Material Plastic
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin

Output Wenglor TR55PCT2 :

  • PNP NO yes
  • RS-232 with Adapterbox yes

Adjustable parameters Wenglor TR55PCT2 :

  • Circuit NC
  • NC/NO
  • NO

Features

  • Compact housing
  • Large detection range
  • Simple installation
  • Teach-in, external teach-in

Applications

B_BED_M_03.eps
30 = Switching Status/Contamination Warning
06 = Teach Button

Specifications

Optical Data

Range 500 mm
Switching Hysteresis  < 15 %
Light Source Infrared Light
Wavelength 880 nm
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 12 °

Electrical Data

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1 kHz
Response Time 500 µs
On-/Off-Delay (RS-232) 0 … 5 s
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Lockable yes
Teach Mode NT, MT
Protection Class III

Mechanical Data

Setting Method Teach-In
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Output

PNP NO yes
RS-232 with Adapterbox yes

Adjustable parameters

Circuit NC
NC/NO
NO

Downloads

Datasheet : Wenglor TR55PCT2 Reflex Sensor Energetic
