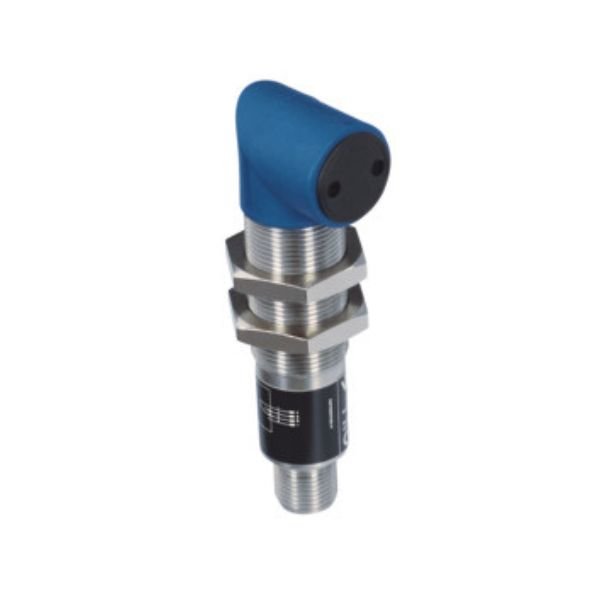

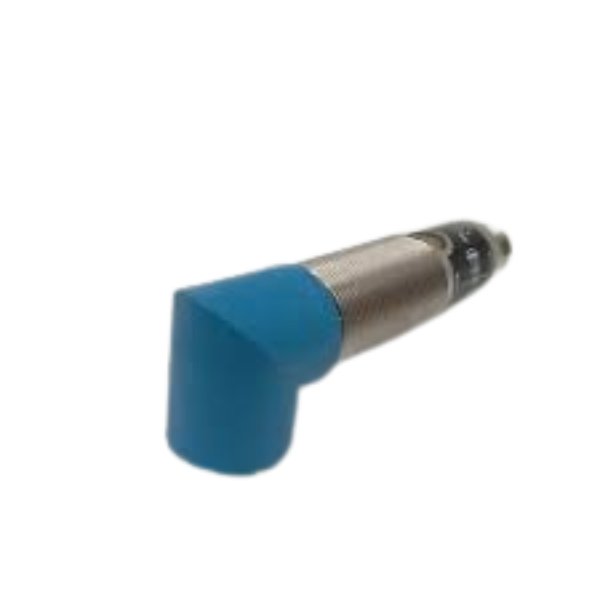

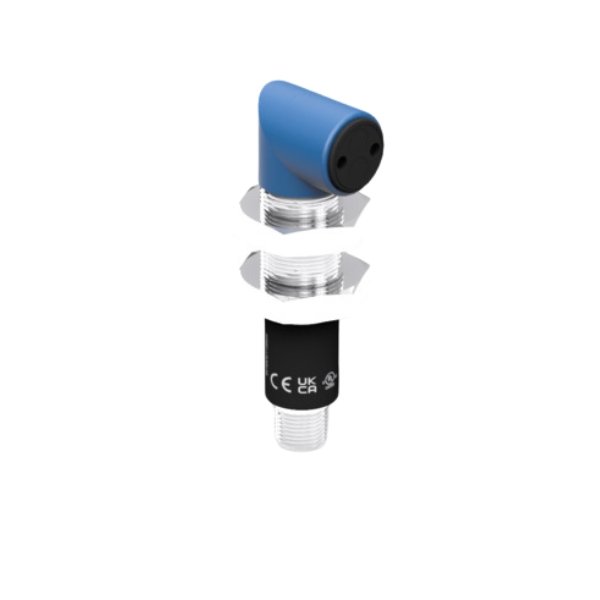

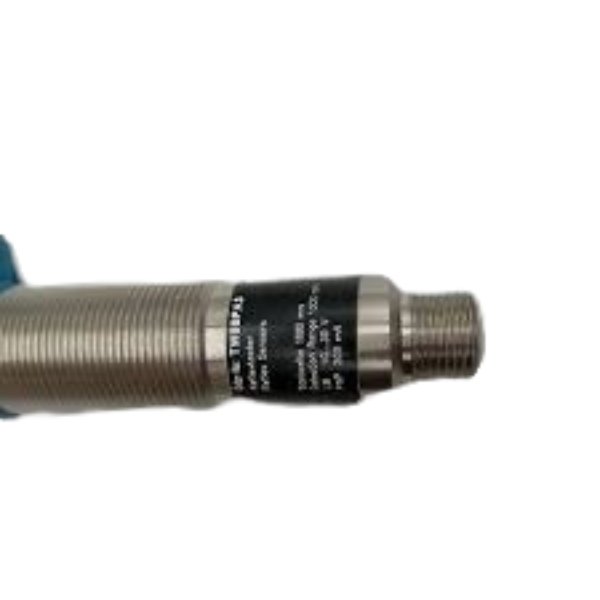

Wenglor TW66PA3 Reflex Sensor Energetic

Product Note:

No product notes available.

Description

Wenglor TW66PA3 Reflex Sensor Energetic

Wenglor TW66PA3 Reflex Sensor Energetic the transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.

Optical Data:

  • Range 1,000 mm
  • Switching Hysteresis  < 15 %
  • Light Source Infrared Light
  • Wavelength 880 nm
  • Service Life (T = +25 °C) 100,000 h
  • Max. Ambient Light 10,000 Lux
  • Opening Angle 12 °

Electrical Data:

  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 40 mA
  • Switching Frequency 250 Hz
  • Response Time 2 ms
  • Temperature Drift < 10 %
  • Temperature Range -25 … 60 °C
  • Switching Output Voltage Drop < 2.5 V
  • PNP Switching Output/Switching Current 200 mA
  • Residual Current Switching Output < 50 µA
  • Short Circuit Protection yes
  • Reverse Polarity Protection yes
  • Overload Protection yes
  • Protection Class III

Mechanical Data:

  • Setting Method Potentiometer
  • Housing Material Stainless Steel
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin

Output:

  • PNP NC, PNP NO yes

Adjustable Parameters:

  • Circuit NC
  • NC+NO
  • NO

Features

  • Stainless steel housing
  • Adjustable detection range
  • Large detection range

Applications

B_BED_D_06.eps
05 = Switching Distance Adjuster
02 = Contamination Warning
01 = Switching Status Indicator

Specifications

Optical Data

Range1,000 mm
Switching Hysteresis < 15 %
Light SourceInfrared Light
Wavelength880 nm
Service Life (T = +25 °C)100,000 h
Max. Ambient Light10,000 Lux
Opening Angle12 °

Electrical Data

Supply Voltage10 … 30 V
Current Consumption (Ub = 24 V)< 40 mA
Switching Frequency250 Hz
Response Time2 ms
Temperature Drift< 10 %
Temperature Range-25 … 60 °C
Switching Output Voltage Drop< 2.5 V
PNP Switching Output/Switching Current200 mA
Residual Current Switching Output< 50 µA
Short Circuit Protectionyes
Reverse Polarity Protectionyes
Overload Protectionyes
Protection ClassIII

Mechanical Data

Setting MethodPotentiometer
Housing MaterialStainless Steel
Full Encapsulationyes
Degree of ProtectionIP67
ConnectionM12 × 1; 4-pin

Output

PNP NO/NC antivalentyes

Adjustable parameters

CircuitNC
NC+NO
NO

Downloads

Datasheet : Wenglor TW66PA3 Reflex Sensor Energetic
