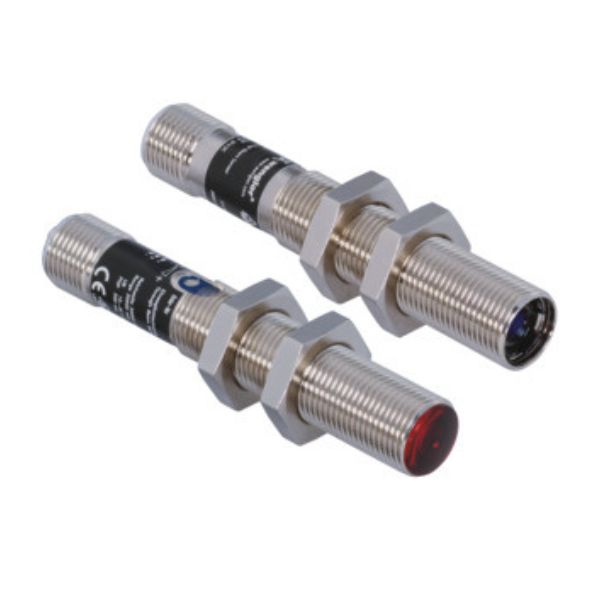

Wenglor YO99VD3 Through Beam Sensor

Wenglor YO99VD3 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments.

Wenglor YO99VD3 Through Beam Sensor these through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.

Optical Data Wenglor YO99VD3 :

  • Range 20,000 mm
  • Smallest Recognizable Part 50 µm
  • Switching Hysteresis  < 15 %
  • Light Source Laser (red)
  • Service Life (T = +25 °C) 100,000 h
  • Laser Class (EN 60825-1) 2
  • Max. Ambient Light 10,000 Lux
  • Opening Angle 8 °

Electrical Data Wenglor YO99VD3 :

  • Sensor Type Receiver
  • Supply Voltage 10 … 30 V DC
  • Current Consumption (Ub = 24 V) < 15 mA
  • Switching Frequency 5 kHz
  • Response Time 100 µs
  • Temperature Drift < 10 %
  • Temperature Range -10 … 60 °C
  • Switching Output Voltage Drop < 2.5 V
  • Switching Output/Switching Current 200 mA
  • Short Circuit and Overload Protection yes
  • Reverse Polarity Protection yes
  • Protection Class III

Mechanical Data Wenglor YO99VD3 :

  • Setting Method Potentiometer
  • Housing Material CuZn, nickel-plated
  • Full Encapsulation yes
  • Degree of Protection IP67
  • Connection M12 × 1; 4-pin

Safety-relevant Data Wenglor YO99VD3 :

  • MTTFd (EN ISO 13849-1) 4,259.66 a

Output Wenglor YO99VD3 :

  • PNP NC yes

Features

  • Switching frequency: 5 kHz
  • Smallest recognizable part: 0,05 mm

Applications

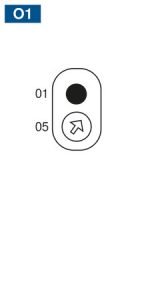

05 = Switching Distance Adjuster
01 = Switching Status Indicator

Specifications

Optical Data

Range 20,000 mm
Smallest Recognizable Part 50 µm
Switching Hysteresis  < 15 %
Light Source Laser (red)
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10,000 Lux
Opening Angle 8 °

Electrical Data

Sensor Type Receiver
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 15 mA
Switching Frequency 5 kHz
Response Time 100 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
Switching Output/Switching Current 200 mA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Protection Class III

Mechanical Data

Setting Method Potentiometer
Housing Material CuZn, nickel-plated
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin

Safety-relevant Data

MTTFd (EN ISO 13849-1) 4,259.66 a

Output

PNP NC yes

Downloads

Datasheet : Wenglor YO99VD3 Through Beam Sensor
