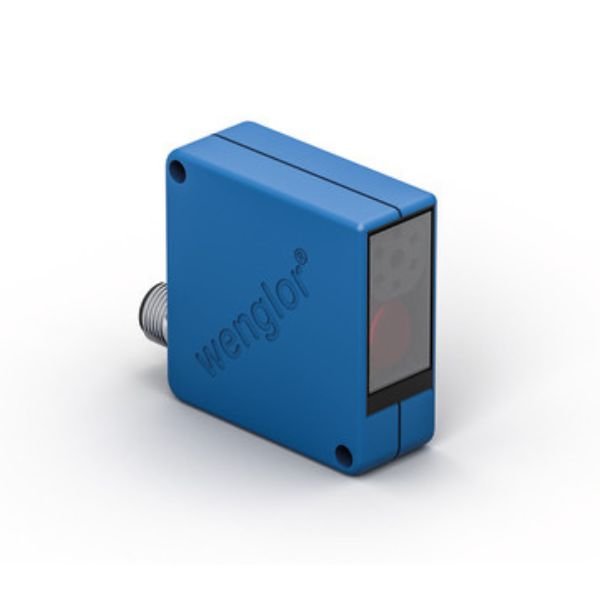

Wenglor YP05MGV80 Laser Distance Sensor High Precision
Wenglor YP05MGV80 Laser Distance Sensor High Precision these sensors can measure distances and display analog output. Their high resolution and wide variety of measuring ranges allow them to be used in innumerable applications. The output signal is practically independent of the object‘s color.
Optical Data:
- Working Range 43 … 53 mm
- Measuring Distance 48 mm
- Measuring Range 10 mm
- Resolution 20 µm
- Linearity 0.5 %
- Linearity Deviation 50 µm
- Light Source Laser (red)
- Wavelength 655 nm
- Service Life (T = +25 °C) 100,000 h
- Laser Class (EN 60825-1) 2
- Max. Ambient Light 10,000 Lux
- Light Spot Diameter 0.5 mm
Electrical Data:
- Supply Voltage 18 … 30 V DC
- Current Consumption (Ub = 24 V) < 30 mA
- Cut-Off Frequency 1 kHz
- Response Time 500 µs
- Temperature Drift (Tu < 10 °C, Tu > 40 °C) 5 µm/K
- Temperature Drift (10 °C < Tu < 40 °C) 5 µm/K
- Temperature Range -10 … 60 °C
- Error Output Voltage Drop < 2.5 V
- PNP Error Output/Switching Current 200 mA
- Analog Output 0…10 V
- Short Circuit Protection yes
- Reverse Polarity Protection yes
- Overload Protection yes
- Protection Class III
Mechanical Data:
- Housing Material Plastic
- Full Encapsulation yes
- Degree of Protection IP67
- Connection M12 × 1; 8-pin
Output:
- Error Output
- Analog Output
