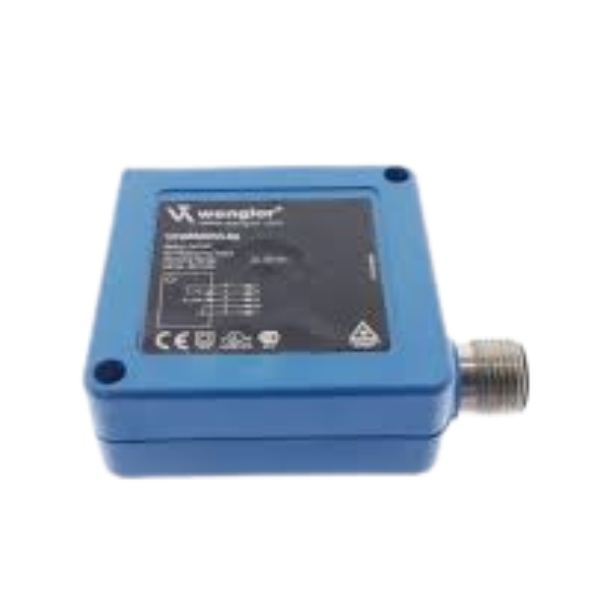

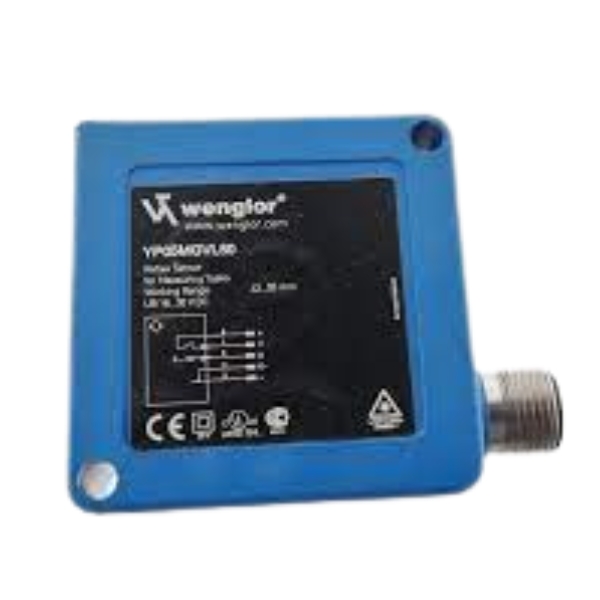

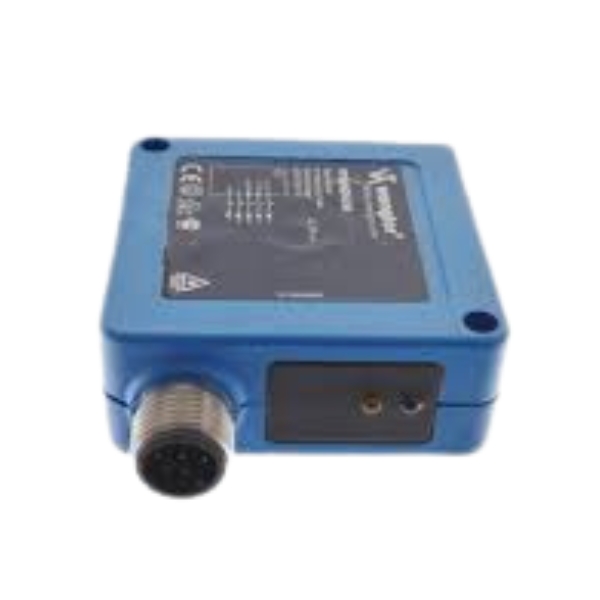

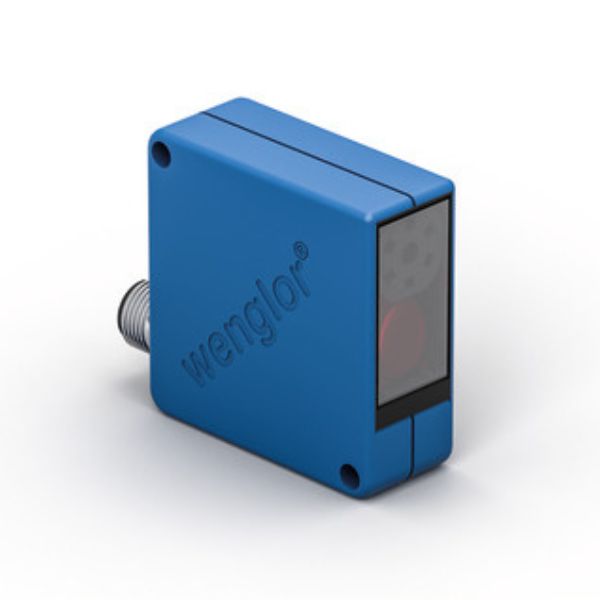

Wenglor YP05MGVL80 Laser Distance Sensor High Precision these sensors can measure distances and display analog output. Their high resolution and a wide variety of measuring ranges allow them to be used in innumerable applications. The output signal is practically independent of the object‘s color.
Optical Data Wenglor YP05MGVL80 :
- Working Range 43 … 53 mm
- Measuring Distance 48 mm
- Measuring Range 10 mm
- Resolution 4 µm
- Linearity 0.5 %
- Linearity Deviation 50 µm
- Light Source Laser (red)
- Wavelength 655 nm
- Service Life (T = +25 °C) 100,000 h
- Laser Class (EN 60825-1) 2
- Max. Ambient Light 10,000 Lux
- Light Spot Diameter 0.5 mm
Electrical Data Wenglor YP05MGVL80 :
- Supply Voltage 18 … 30 V DC
- Current Consumption (Ub = 24 V) < 30 mA
- Cut-Off Frequency 100 Hz
- Response Time 5 ms
- Temperature Drift (Tu < 10 °C, Tu > 40 °C) 5 µm/K
- Temperature Drift (10 °C < Tu < 40 °C) 5 µm/K
- Temperature Range -10 … 60 °C
- Error Output Voltage Drop < 2.5 V
- PNP Error Output/Switching Current 200 mA
- Analog Output 0…10 V
- Short Circuit Protection yes
- Reverse Polarity Protection yes
- Overload Protection yes
- Protection Class III
Mechanical Data Wenglor YP05MGVL80 :
- Housing Material Plastic
- Full Encapsulation yes
- Degree of Protection IP67
- Connection M12 × 1; 8-pin
